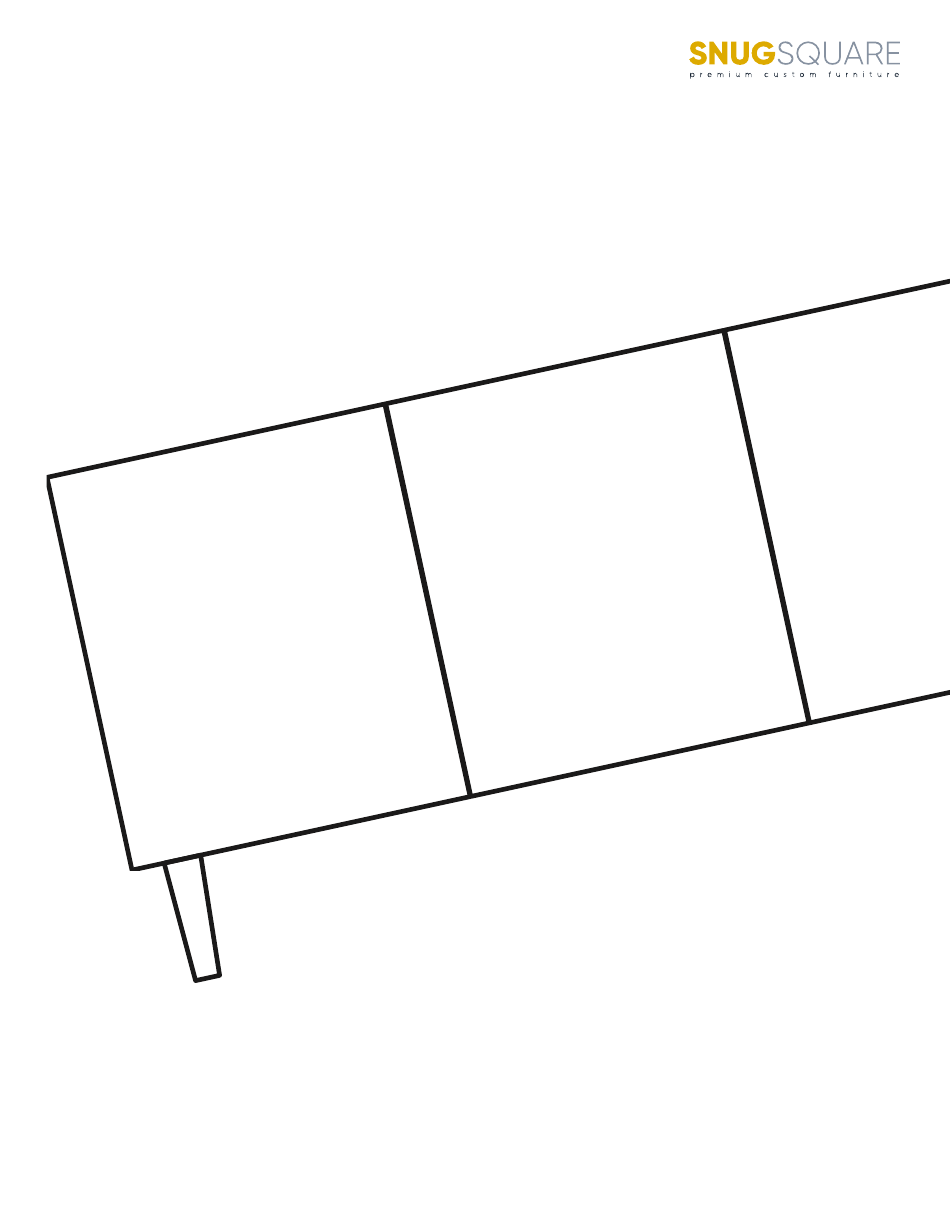

- Page 1 VOSS SIDEBOARD...
- Page 2 Gather Your Eggs... 2x Back Panels 1x Top Panels 1x Middle Shelf 2x Side Panels 2x Dividers 1x Bottom Panels 3x Doors More Eggs... 6x Hinge Connector Hardware with 12x Screws 3x Door Handles with 6x Screws 6x Door Hinges with 12x Screws (2x will be arced) 8x Security Screws 4x Legs with 16x Screws...
- Page 3 Step 1: Attach the Hinge Connector Hardware Grab your side panels, divider with mounting holes, hinge connector hardware and matching screws. Identify the mounting holes in the side panel. They look like vampire bites. Repeat for divider. • Check the orientation: the C-shaped groove should face the nearest edge •...
- Page 4 Connect the Divider Panels to the Center Shelf (Continued) • Stand the side panels upright. • Slide the center divider into place. • Join the center divider with the shelf via their corresponding slots. Note: to ensure that the sideboard is upright and facing forward, make sure the pins along the center divider are o! set to the right as shown above.
- Page 5 Step 3: Connect the Side Panels to the Center Shelf 2x Side Panels with hinge connectors attached 1x Center Shelf with Dividers in place Stand the side panels with the pins facing up. Bring the two pieces together so that the pins Stand the shelf so that the slotted edge is resting along the shelf fit into the keyholes located on on the floor.
- Page 6 Step 4: Attach the Bottom Panel, Back Panels and Top Panel 1x Top Panel 2x Back Panels 1x Bottom Panel • Hook the bottom panel onto the pins. Slide into place. • Make sure the edges are flush...
- Page 7 Step 5: Attach the Back Panels Lay the Sideboard face down so that the pins are facing up. Note: Attach the lower back panel first. Use the center divider’ s o! set pins to di! erentiate top from bottom • Lay the lower back panel so that the keyhole slots line up with the pins •...
- Page 8 Step 6: Secure the Bottom Panel and Attach the Legs • Locate the 8 holes in the bottom panel • Make sure the edges are flush • Using the security screws, fasten the bottom panel Attach the legs using the leg screws. There are 4 screws to each leg.
- Page 9 Step 7 : Install the Hinges 6x Door Hinges with 12x Screws Arced Hinge Note: Two of the hinges have an arc. The arced hinges will be used for the center door. Straight Hinge Insert a screw into each mounting hole and Place a hinge into each well on the inside of fasten.
- Page 10 Step 8: Attach the Doors Rest the hinges over their receiving hardware. Make sure the doors are right-side up. Press the hinges into the hardware. They should just snap into place. See below. Push end down onto Slide hinge up against receiving hardware and receiving hardware.
- Page 11 Step 10: Adjust the Hinges and Center the Doors Moves door left and right • Hinges are adjustable in 3 di ! erent locations. Moves door back and forth • Each adjusts the position of the doors di ! erently. •...
- Page 12 Adjustment 2: Move the door closer or farther away from the side panel. Moves door Use this adjustment to: back and forth • Make the edges of the door parallel with the edges of the sideboard. • Widen or narrow the gap between the doors and sideboard. Note: Check that the gap between the open door and side panel is vertical and does not taper.
- Page 13 Step 11: Add Plastic Bumpers Stick a small plastic bumper to the top corner of each door. This will help with door adjustment DONE!
