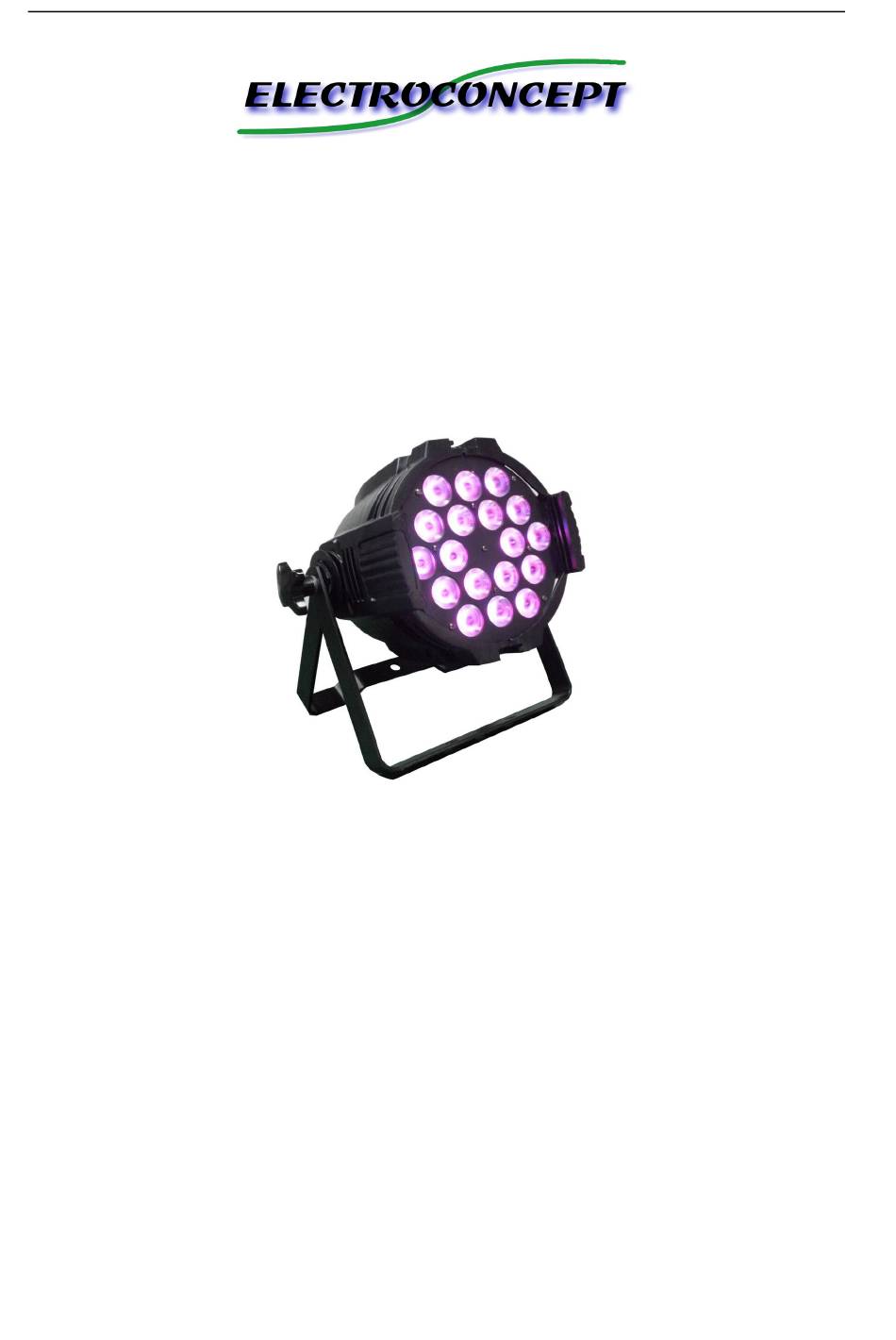

- Page 1 QUAD 188 Q188 RGBWA+UV 6 en 1 RGBW LED SPOTLIGHT Instruction Manual Ver1.0...
-
Page 2: Technical Specifications
Responsibility : On no account the Electroconcept company shall be held responsible for any damages of any nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other financial loss resulting from the use or the impossibility to use your equipment. In addition Electroconcept shall not be held responsible for damages due to an improper use of this product. - Page 3 Press Enter to confirm and change sub-menus : STAT : Static mode + Stroboscope R.XXX : red intensity selection from 0 to 255 G.XXX : green intensity selection from 0 to 255 B.XXX : blue intensity selection from 0 to 255 Y.XXX : amber intensity selection from 0 to 255 W.XXX : white intensity selection from 0 to 255 U.XXX : UV intensity selection from 0 to 255...
- Page 4 B.000 blue selection 0~255 Y.000 amber selection 0~255 W.000 white selection 0-255 U.000 UV selection 0~255 ST.00 strobe speed selection 0~20 T.000 automatic time selection F.000 automatic fading selection SET : Basic settings POW : energy saving DIM :dimmer : linear, halogen bulb,...OFF/DIM1/DIM2/DIM3/DIM4 UPLD programs datas sending to next l'ID REST reset Fixture ID ON/OFF ID...
- Page 5 121～130 program PR01 1 131～220 program PR02-PR10 221～240 Color sound mode 241～255 Flash sound mode CH11 Programs speed 0～255 Internal programs speed 0～9 Dimmer speed 10～29 no function 30～69 dimmer 1 fast CH12 Dimmer Type 70～129 dimmer 2 130～189 dimmer 3 190～255 dimmer 4 slow No function...
-
Page 6: Dmx 512 Connection
CHANNEL DMX-512 VALUE CONTROL Dimmer 0～255 Brightness adjustment 0～255 Red adjustment Green 0～255 Green adjustment Blue 0～255 Blue adjustment Amber 0～255 Amber adjustment White 0～255 White adjustment 0～255 UV adjustment AR2.5 8 channels: CHANNEL DMX-512 VALUE CONTROL Dimmer 0～255 Brightness adjustment 0～255 Red adjustment Green... - Page 7 WARNING ! This product is not meant for a domestic use. After unpacking the product, packaging materials (plastic bags, polystyrene, foam,…) must not be left within children’s reach, this may be dangerous. This product must be only used by an adult. Do not let a child use it or play with it. Do not put this product under these conditions : - In a damp location - In a location subject to shock and vibrations...
