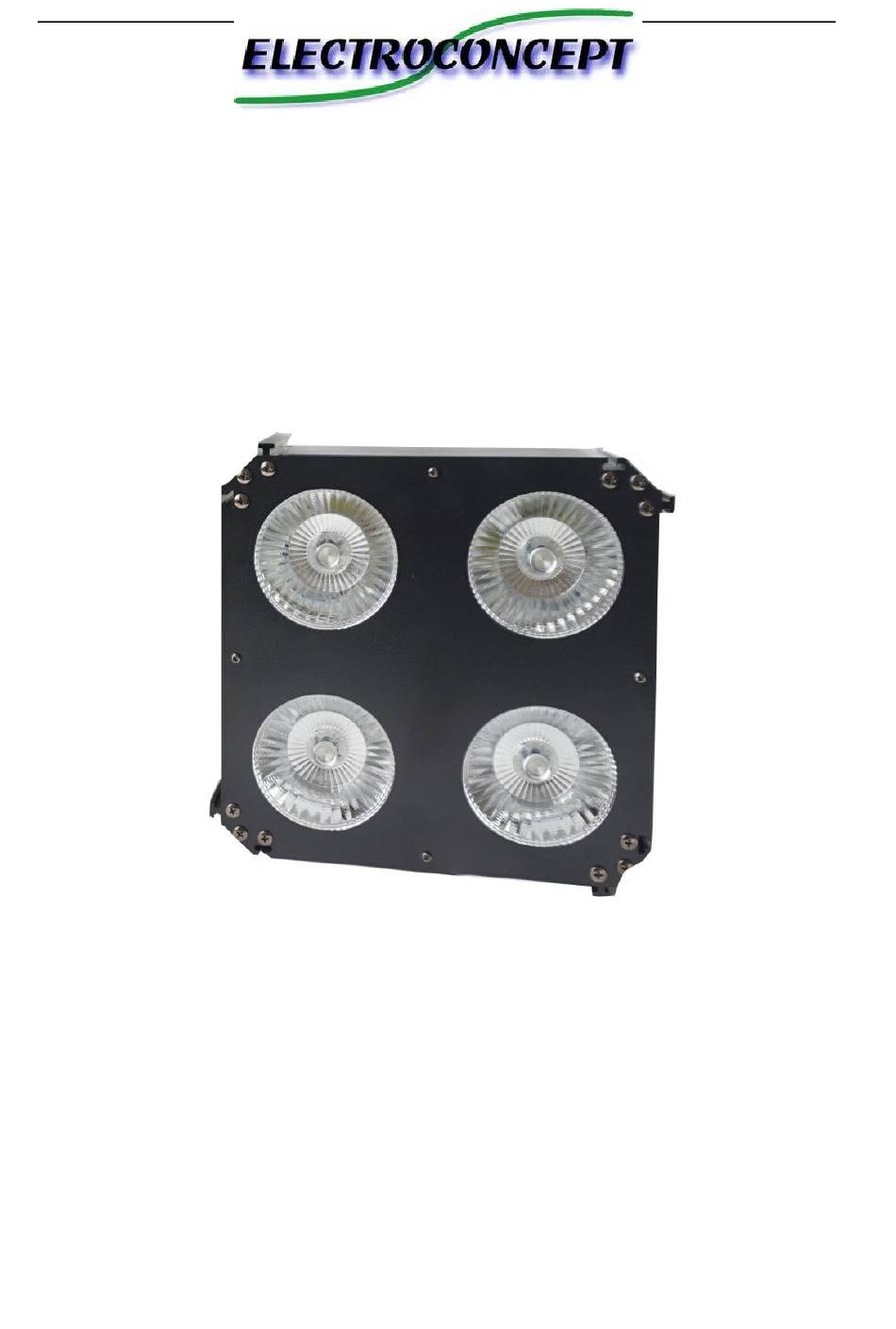

- Page 1 MATRIX 430 Instruction manual Thank you for purchasing this product. Please carefully read this manual before using this spotlight...
-
Page 2: Table Of Contents
Responsibility : On no account the Electroconcept company shall be held responsible for any damages of any nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other financial loss resulting from the use or the impossibility to use your equipment. In addition Electroconcept shall not be held responsible for damages due to an improper use of this product. - Page 3 source match your spotlight specifications. Check your device as well as your equipment’s grounding. This device is only meant for indoor use ; protect it from heat and humidity (allowed ambient temperature from 10 to 40°C). The spotlight must be set up in a ventilated area, at least 50cm away from any adjacent surface.
-
Page 4: Technical Specifications
2. Technical specifications. This device does not produce radio interference. This device meets European and French requirements. Compliance has been established, and statements and respective documents have been registered by the manufacturer. This device has been made for indoor decorative lighting effects. - Page 5 D--- DMX Mode : D001 : DMX address Hn16 : Selection of DMX mode (number of channels from 1 to 21) C--- Fixed color mode : r001 :Red Color -> level from 0 to 255 g001 : Green Color -> level from 0 to 255 B001 : Blue Color ->...
-
Page 6: Dmx Wiring
FL-0 : Layout of spotlight and Leds. Leave it to 0 for synchronous effects. Modify to change the leds’ reaction. 3.2 DMX wiring This product uses 3-pin XRL connectors for the DMX512 connection: Pin 1 : Ground , Pin 2 : Data (-), Pin 3 : Data (+). Example : connection between different fixtures in Master/Slave mode: All fixtures must be at the same DMX address, the 1rst projector in Automatic or Sound mode, spotlights... - Page 7 Strobe 0 → 0FF : 1 → 255 From slow to fast Red Level from 0 to 255 Green Level from 0 to 255 Blue Level from 0 to 255 White Level from 0 to 255 Mode 9 Channels DMX Channel Description General Dimmer Strobe 0 →...
- Page 8 Green Level from 0 to 255 Blue Level from 0 to 255 White Level from 0 to 255 Program 0 → Off : 1 → 255 Program (see programs table) Program speed 0 → 127 slow to fast following the program’s course 128 →...
- Page 9 Green Level from 0 to 255 of pixel 3 Blue Level from 0 to 255 of pixel 3 White Level from 0 to 255 of pixel 3 Red Level from 0 to 255 of pixel 4 Green Level from 0 to 255 of pixel 4 Blue Level from 0 to 255 of pixel 4 White Level from 0 to 255 of pixel 4 Mode 18 Channels...
- Page 10 Red Level from 0 to 255 of pixel 1 Green Level from 0 to 255 of pixel 1 Blue Level from 0 to 255 of pixel 1 White Level from 0 to 255 of pixel 1 Red Level from 0 to 255 of pixel 2 Green Level from 0 to 255 of pixel 2 Blue Level from 0 to 255 of pixel 2 White Level from 0 to 255 of pixel 2...
-
Page 11: Troubleshooting
Program DMX Zone Description 7 → 15 Program 1 16 → 23 …. Every 8 Progam n 247 → 255 Program random pixel. 4.1 Program ID Matching. Internal programs are intended to work with 4 spotlight s set as a « square ». In order for the effect to be fully carried out you need to select the ID of every spotlight , either in DMX or Master/Slave Mode Front view :... -
Page 12: Cleaning
: Clean it with a soft dry cloth. Do not use liquid or detergent products. Clean external lenses approximately every 20 days, with a soft dry cloth, without overly pressing on the lenses. ELECTROCONCEPT SARL LA GARE 69620 CHAMELET FRANCE...
