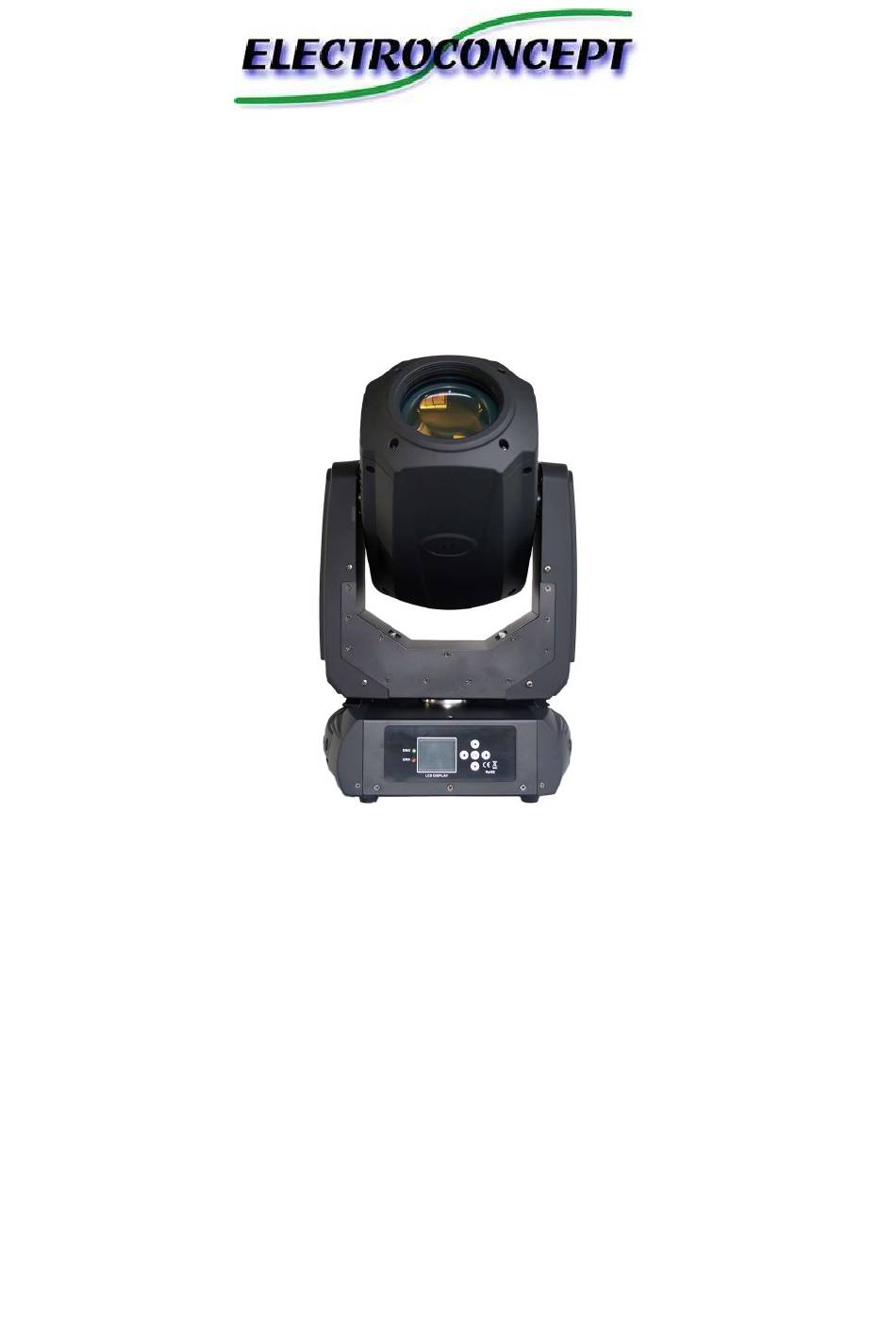

- Page 1 M SPOT 200II PROFILE 200II SPOTLED...
-
Page 2: Table Of Contents
Responsibility : On no account the Electroconcept company shall be held responsible for any damages of any nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other financial loss resulting from the use or the impossibility to use your equipment. In addition Electroconcept shall not be held responsible for damages due to an improper use of this product. -
Page 3: Safety Instructions
Cleaning 1. Safety instructions Please carefully read these instructions as they include valuable information for installation, operation and maintenance of this device. Warning Keep this manual for future consultations. If you resell your moving head to an other individual, make sure to also give him this manual. Unpack and carefully check that the moving head didn’t take any damages during ... -
Page 4: Technical Specifications
technical support center. Always use spare parts of the same type. Do not connect the moving head to any dimmer or power pack. Do not open the device during operation, high voltage may cause a lethal electric shock. In order to prevent or reduce fire or electric shock hazards, do not expose the ... -
Page 5: Moving Head Starting Up
Operating mode : -DMX control 17 channels/Stand-alone with built-in microphone/ Stand-alone with automatic mode/ Master/Slave mode. 3.Moving head starting up : 3.1. Access to main functions Control panel: ”MENU“ “▼ ” “▲” ”ENTER” Press the “MENU” button to access functions then « ▼ » or « ▲ » to browse through sub-menus, «... -
Page 6: Dmx Control Channels And Values
4.DMX control channels and values 17 channels... - Page 7 CHANNEL VALUE FONCTION 1 PAN 0-255 2 PAN fin 0-255 Pan Fin 3 TILT 0-255 Tilt 4 TILT fin 0-255 Tilt Fin 5 Speed 0-255 Pan/Tilt Speed Shutter closed 6 Shutter/Strobe 4-251 Stobe from slow to fast 252-255 Shutter open 7 Dimmer 0-255 General dimer...
- Page 8 White Open 10-19 Gobo1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-79 Gobo 7 80-89 Gobo 8 90-99 Gobo 9 100-104 Gobo 1 shaking from slow to fast 9 Gobos wheel1 105-109 Gobo 2 shaking from slow to fast 110-114 Gobo 3 shaking from slow to fast...
-
Page 9: Troubleshooting
: Clean it with a soft dry cloth. Do not use liquid or detergent products. Clean external lenses approximately every 20 days, with a soft dry cloth, without overly pressing on the lenses. ELECTROCONCEPT SARL LA GARE 69620 CHAMELET FRANCE...
