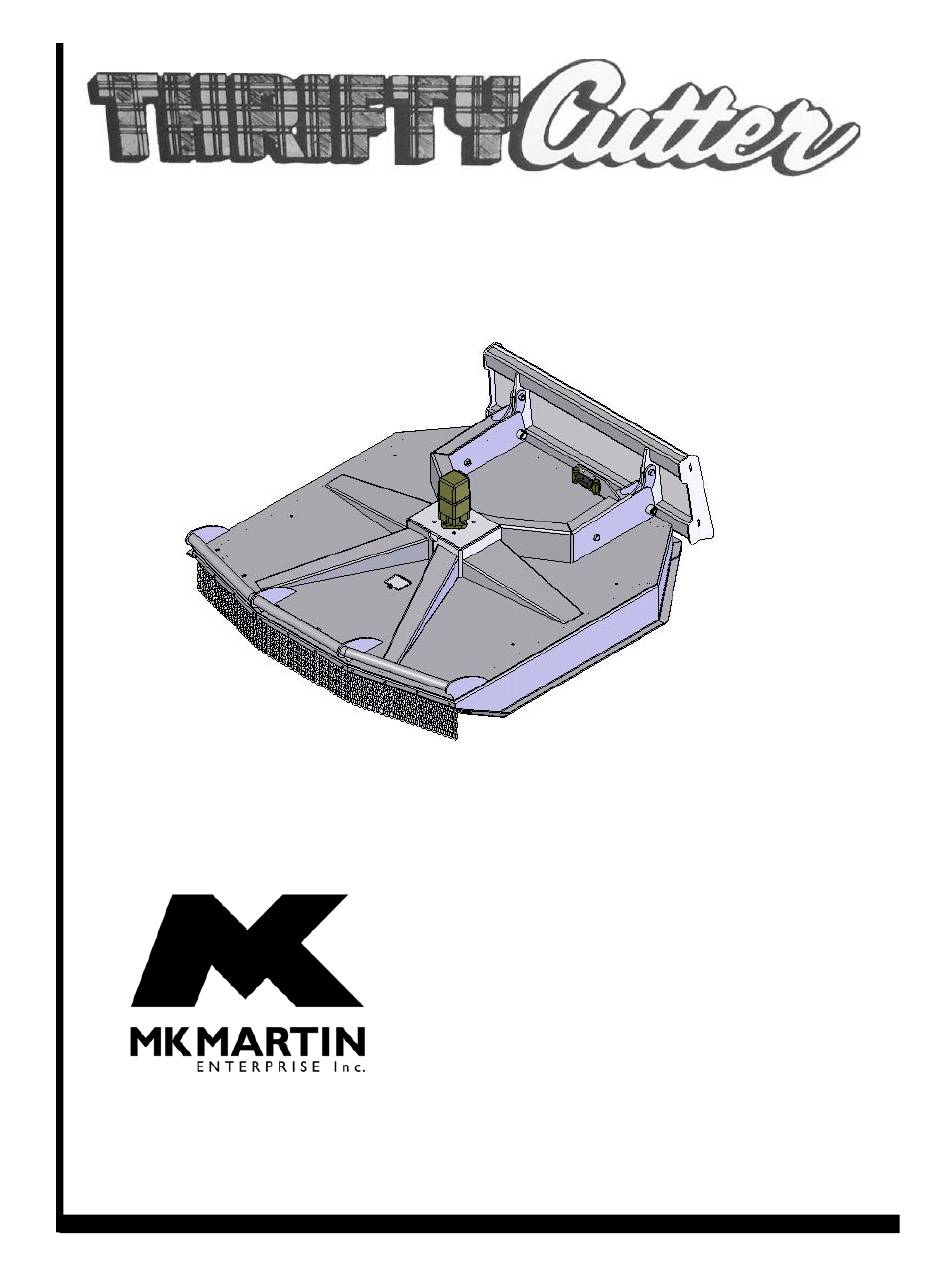

- Page 1 Skid Steer Thrifty® Cutter M K Martin Enterprise Inc 3950 Steffler Rd Elmira On. Ca. N3B 2Z3 Tel 519-664-2752 Fax 519-664-3695 E-mail sales@mkmartin.ca...
- Page 2 Introduction Skid Steer Thrifty® Cutter We want to thank you for acquiring our Thrifty® cutter. M K Martin Enterprise Inc. has been manufacturing cutters for many years and has now added a hydraulic powered cutter for a skidsteer loader. This cutter is designed specifically for skidsteer work. With regular service and maintenance it will provide you with many years of reliable service.
-
Page 3: Warranty And Limitation Of Liability
Warranty and Limitation Of Liability All equipment is sold subject to mutual agreement that it is warranted by M K Martin Enterprise Inc. (hereafter called the company) to be free of any defects of material and workmanship. But the company shall not be liable for special, indirect or consequential, damages of any kind under this contract or otherwise. - Page 4 Indicates a hazardous situation that needs to be avoided. It is you the operator that needs to be aware of these dangers. If you have any questions not answered in this manual, please contact your dealer or M K Martin Enterprise Inc. 3950 Steffler Rd Tel; 519-664-2752 Elmira On Ca Fax;...
- Page 5 Safety – It’s in your interest Safety Guidelines. Safety of the operator is one of our main concerns, however it is up to the operator to practice caution. To avoid personal injury, study the following precautions and insist that those that are working with you to follow them.
- Page 6 Skid Steer Thrifty® Cutter This cutter was designed for a skid steer loader. The loader plate has a floating link to allow the cutter to float freely up and down at the front while in use. The hydraulics has a check-valve in the line that will act like an overrunning clutch when the cutter is stopped.
- Page 7 Decal Location Side of Member Deck Cover Plate Front Center Logo Both Sides Both Corners...
- Page 8 Skid Steer Thrifty® Cutter Upon receiving the product please take a few moments and check for broken or damaged or missing parts that happened during shipping. The Skid Steer Thrifty® Cutter is shipped with most or all the components in place. The exception;...
- Page 9 Operating the Thrifty® Cutter This cutter is mounted in front of the loader and is pushed rather then dragged. The loader is also capable to put down pressure on the cutter, (this is not desirable). With the cutter tilted up slightly at the front, lower the cutter until the sides almost touch the ground.
- Page 10 Skid Steer Thrifty® Cutter Parts Model SSMTC60 SSMTC72 Item # Description Part # Part # Main Deck 512-SS601000 512-SS721000 Loader Adaptor Plate 512-SSLA100 512-SSLA100 Main Pivot Pin 512-SSLA101 512-SSLA101 Float Link 512-SSC100 512-SSC100 Check Valve Assy 512-SSC101 512-SSC101 Motor (16 GPM) 519-62310091 519-62310091 Motor (20PM)
- Page 11 Skid Steer Thrifty® Cutter Hydraulics Not shown Hydraulic Coupling 60-75 Cutter share the same hydraulic parts Item # Description Part # Loader Lines 512-SSC110 512-SSC111 Adaptor 512-SSC112 45° Elbow 512-SSC113 Motor Lines 512-SSC114 Hose Cover 512-SSC115 Check Valve 512-SSC116 U bolts 512-SSC117 Hydraulic Coupling (set) 512-SSC118...
- Page 12 Skid Steer Thirfty® Cutter Maintenance Check all nuts and bolts after the first hour of use. Grease pivot pin on loader adaptor plate every few days of use. When hooking up hydraulic lines check for wear marks and abraded spots. Replace if line are worn and/or cracked.
