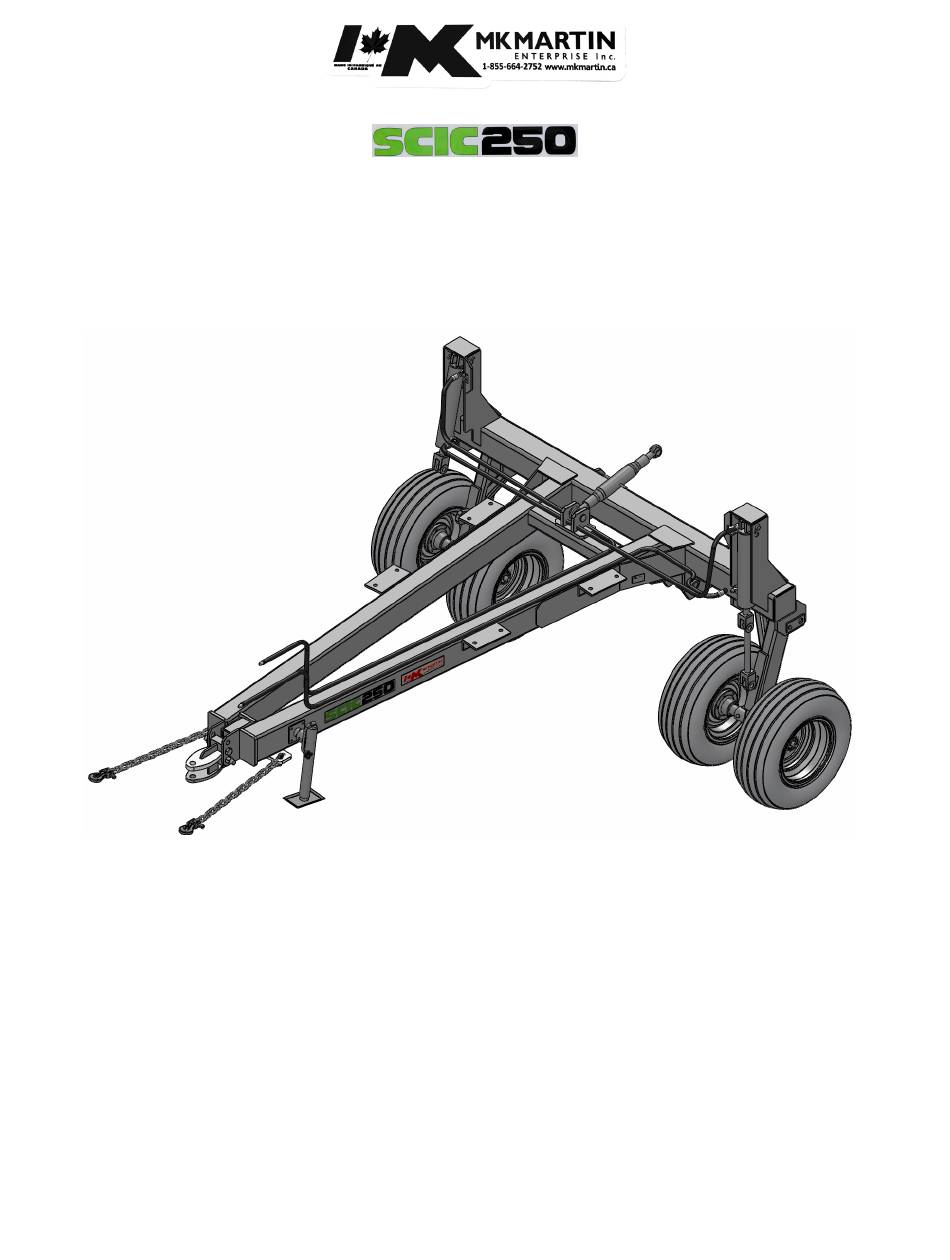

- Page 1 Tool Caddy Owner/Operator Manual M K Martin Enterprise Inc 3950 Steffl er Rd Elmira On. Ca N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 e-mail: sales@mkmartin.ca www.mkmartin.ca rev:1-14...
- Page 3 In no event shall M K Martin Enterprise Inc. be liable special, direct, or incidental or conse- quential damages of any kind. Th e purchaser by acceptance of the equipment will assume all liability for damage which may result from use or misuse by the employees or others.
-
Page 4: Table Of Contents
Table of Contents • Registration • Safety • Decal Location • Operation • Parts • Bolt Torque • Maintenance... - Page 5 Warranty Registration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------------ Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3...
- Page 6 M K Martin Enterprise Inc 3950 Steffl er Rd Elmira On Ca N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection equipment is valid only when this completed form or a copy of WK L V I R U P L V RQ ¿ O H D W 0 . 0 D U W L Q ( Q W H U S U L V H , Q F % \ ¿ O O L Q J RX W WK L V I R U P WK H S X U F K D V H U K D V D F N Q R Z O H G J H G G H O L Y H U \ RI H T X L S P H Q W D Q G RZ Q H U ¶...
-
Page 7: Safety
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that needs to be aware of these dangers. If you have any questions not answered in this manual please contact you dealer or M K Martin Enterprise Inc Tel: 519-664-2752 3950 Steffl er Rd... - Page 8 Safety -- It,s in your interest! Caution: When attaching the Tool Caddy ensure all pins and locks are secure before driving away! When unhitching the Tool Caddy, Lower the row units to the ground and position the jack, before removing the drawbar pin. With the row unit raised, the hitch end may be too light to balance the load on the rear.
-
Page 9: Decal Location
Decal Location Manufactures Decal Serial Plate Model Number High Pressure... - Page 10 Operating The SCIC 250 Tool Caddy attaches to the Cat #3 implement and raises up and down by raising and low- ering the wheels. The cylinders are re-phasing cylinders, to keep the frame level at all times. The implement is attached to two lower hitch plates and the top link. Working height is controlled with the Tractor hydraulics.
- Page 11 Notes...
-
Page 12: Parts
Parts Item # Part # Description 24398 Main Frame wal387507 Cat #3 Top Link Pin wal387612 Cat #3 Top Link 23557 Long Hydraulic Line 23556 Short Interconnect Hose cyl32WP16-125 3 1/4x16 re-phase cylinder 24400 Right Wheel Stem Bolt 3/8x3 c/w ln 22542 Hitch Lock Pin 22548... - Page 13 Bolt 5/8x2 1/2 c/w ln 22526 Left Wheel Stem 23055 Spindle hub6000 6000 Hub 11.5L15 Wheel Bolt 1/2x4 c/w ln brgbrz171520 Bushing 24396 Wheel Stem Pivot Pin Bolt 1/2x2 c/w ln cyl35WP16-125 3 1/2x16 re-phase Cylinder 681-0808 Hydraulic Fitting 90° elbow 23558 Short Hydraulic Line CFSIJ5015T...
-
Page 14: Bolt Torque
Bolt Torque As used on this equipment Bolt torque table shown below gives torque values for the various bolts used. This chart is for non-lubricated threads. Replace with the same strength bolt. Torque Specifications. Torque values are identified by their head markings Diameter SAE 2 SAE 5... -
Page 15: Maintenance
Maintenance • This equipment is designed for low maintenance. • • After 1 hour of use inspect all nuts and bolts, ensure they are all tight. • • After 5 hours repeat the inspection • • After the first day of use check all nuts and bolts again, inspect all hydraulic lines and fitting for leaks and signs of rubbing or kinking.
