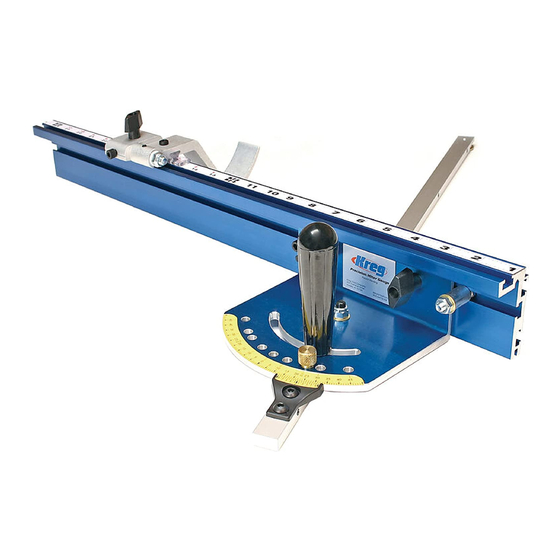

- Page 1 Note: Rockler may not carry all products and/or sizes listed in this vendor's publication Precision Miter Gauge KMS7102 (25647) INSTRUCTIONAL MANUAL The Blue Mark of Quality. (Revision 20060201) FT4032 RTD10000271AA...
-
Page 2: Table Of Contents
Table of Contents Congratulations on choosing a Kreg Precision Miter Gauge! We have designed this tool to be the finest miter gauge available. It sets a new standard for accuracy and ease of use. Be sure to read the instructions and the safety warnings completely before using this tool. -
Page 3: Safety Instructions
- Kreg components are fully guaranteed for one year from date of purchase. - Kreg will replace or repair, at no charge to the customer, any product that fails within the warranty period. - Kreg will service Kreg components beyond the warranty period at a reasonable cost to customer. - Page 4 Safety Guidelines Safety Guidelines To avoid injury, never adjust saw fence, drop stop, jig, fixture, or miter gauge while saw is running. Make sure blade comes to a complete stop before removing or securing workpiece, changing workpiece angle or changing the angle of the blade. Ground all tools.
-
Page 5: Parts Diagrams
Parts Diagram Precision Miter Gauge - Part Number KMS7101 FT4029 FT4056 FT4025 FT4030 FT4024 DK1313 DK1504 FT4027 FT4002 FT4094 FT4059 FT4139 FT4005 FT4025 FT4102 FT4057 FT4002 FT4094 FT4059 FT4139 FT4001 FT4082 FT4058 FT4207 Part Number Quantity Description DK1313 Black T-Knob DK1313 Black T-Knob DK1504... - Page 6 Parts Diagram Miter Gauge Add-On System -Part Number KMS7103 DK1313 FT4079 FT4060 FT4064 FT4050 FT4204 FT4062 FT4050 FT4061 FT4212 DK1313 FT4063 FT4021 FT4139 FT4047 FT4059 KMS7702 FT4055 FT4203 DK1504 DK1510 Part Number Quantity Description DK1313 Black T-Knob DK1504 Brass Washer DK1510 1/4”...
-
Page 7: Adjust The Bar To The Slot
If your saw has a t-slot that uses a different washer, remove the washer from the miter gauge that came with the saw. Install the washer on the Kreg Precision Miter Gauge bar using the screw pro- vided with the Kreg Precision Miter Gauge. -
Page 8: Attach The Fence
Setting-up the Miter Gauge 5) Keep repeating this process until the fit is correct. Remember, you want the plug to just “kiss” the miter bar slot without exerting any pressure. 6) When the first plug is adjusted correctly, slide the bar backwards to expose the second adjuster &... -
Page 9: Set The Cursor
Setting-up the Miter Gauge Install the scale 1) Make sure Auxiliary fence is clean & free of dirt & oil. 2) Begin peeling back the paper backing on the scale. Place the 1” mark on the end of the fence closest to the blade and stick the scale down. - Page 10 Setting-up the Miter Gauge Fine-tune the cursor setting by moving the miter gauge back to 0 deg. Then move the stop in about an inch and cut a board to length. Measure the cut board. Without moving the stop or the fence settings, loosen the cursor and adjust it to read this exact measurement.
-
Page 11: Adding A Sacrificial Fence
Kreg Flipstop With Break-away Feature The new design of the Kreg Flipstop will allow the system to perform perfectly with the addition of a sacrificial board attached to the fence. Sacrificial boards afford a renewable surface to support the workpiece resulting in a smooth crosscut that minimizes tear-out. -
Page 12: Preset Holes
The Kreg Precision Miter Gauge has preset holes drilled at 0 deg., Diamonds - There are diamonds every 5 degrees. The diamonds 10 deg., 22.5 deg., 30 deg., and 45 deg. -
Page 13: Setting The Cutting Angle
Setting the Cutting Angle Setting the Angle using the Scale To set an angle that is not preset, you need to use the scales. Just loosen the handle, line the desired angle up with the 0 mark on the Vernier side of the scale, and tighten the handle. 8 degree setting in example at right. -
Page 14: Resetting The Vernier Scale
Resetting the Vernier Scale The Vernier scale is set at the factory. However, if you knock it out of alignment, it can be easily reset. For the Vernier scale to read accurately, it needs to be both accurately aligned and correctly spaced from the degree scale on the miter gauge head. -
Page 15: Micro-Adjust Feature
Micro-Adjust Feature How the Micro-Adjust Works Fence Extrusion T-Slot The micro-adjust mechanism works by changing the spacing between the fence and the miter gauge. For every 0.001” of space you add, you increase the angle 1/100 deg. You add the space by turning a nylon screw that pushes the fence away from the miter gauge. -
Page 16: Accessories
