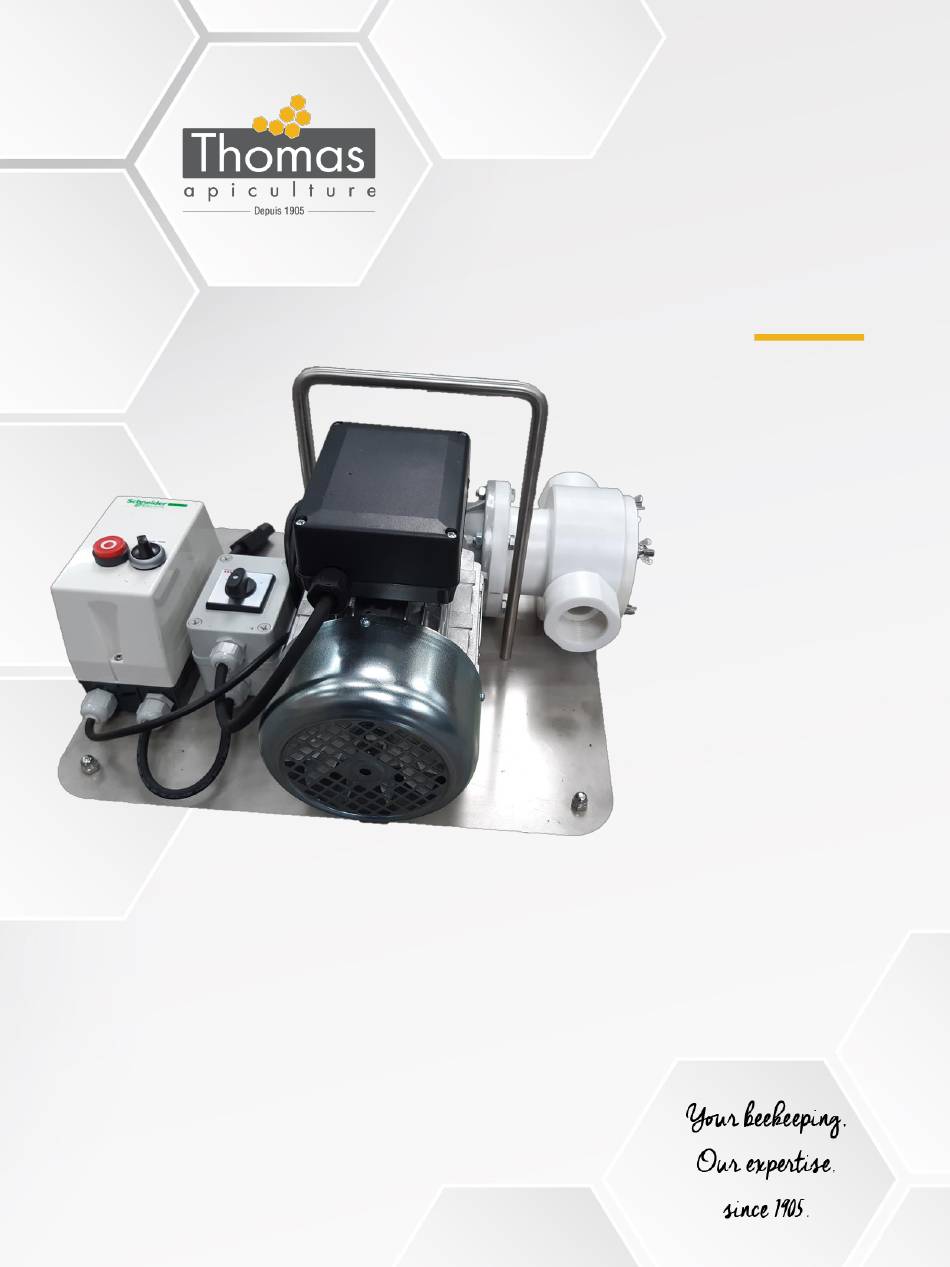

User's Guide
Stainless-steel
Vane Pump
Ref. 811 / 817
THOMAS APICULTURE
French designer and manufacturer
Non-contractual Image
Of beekeeping equipment
ZA de l'Évangile
321, rue Bernard de la Rochefoucauld
45450 Fay-aux-Loges – France
Tél: +33 (0)2 38 46 88 00
Fax : +33 (0)2 38 59 28 28
E-mail : contact@thomas-apiculture.com
www.thomas-apiculture.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 811 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thomas 811

  • Page 1 User’s Guide Stainless-steel Vane Pump Ref. 811 / 817 THOMAS APICULTURE French designer and manufacturer Non-contractual Image Of beekeeping equipment ZA de l’Évangile 321, rue Bernard de la Rochefoucauld 45450 Fay-aux-Loges – France Tél: +33 (0)2 38 46 88 00 Fax : +33 (0)2 38 59 28 28 E-mail : contact@thomas-apiculture.com...
  • Page 2 Weight : 25 kg Geared Motor : Ref. 811 : Triple phase 380 V – 550 W Ref. 817 : Single phase 220 V – 750 W SAFETY PRECAUTIONS CAUTION : Before connecting the appliance to a power supply, make sure that your electric installations comply with current standards (differential circuit breaker protection, earth wire, etc.).

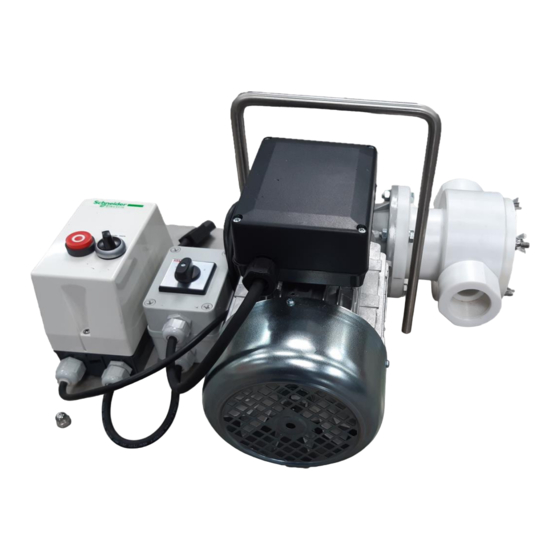

  • Page 3 Vane Pump : User’s Guide OPERATING PRINCIPLE The pump consists of a stainless-steel support plate (1) mounted on anti-vibration pads and a stainless-steel vane pump. The pump body is made of teflon. The pumping parts, consisting of the rotor (2), stator and vanes (3), are made of stainless steel.
  • Page 4 Vane Pump : User’s Guide USAGE GUIDE Connect the pump to the system. When assembling the connections, use Teflon® and then tighten the connections but not too much, holding the female part. The pump is self-priming. Press the ON button on the circuit breaker (4). Turn the rotation reversing switch (5) to 1 or 2 depending on the selected direction of pumping.
  • Page 5 Vane Pump : User’s Guide Frequent Questions CAUTION : Unplug the machine before any maintenance operation. Problem Possible solutions - Check that the machine is plugged to a power supply. - Check the power supply (power failure). The machine does not start - Check that the STOP switch (6) is unlocked (clockwise turn).
  • Page 6 (Monday - Saturday 8:00 am – 8:00 pm) Off season 8H/24 et 5 days /7 (Monday – Friday from 8:00 to 12:00 And from 1:30 pm to 6:00 pm) assistance-technique@thomas-apiculture.com Customer Service : 02 38 46 88 00 From 8:00 am to 12:00 am...
