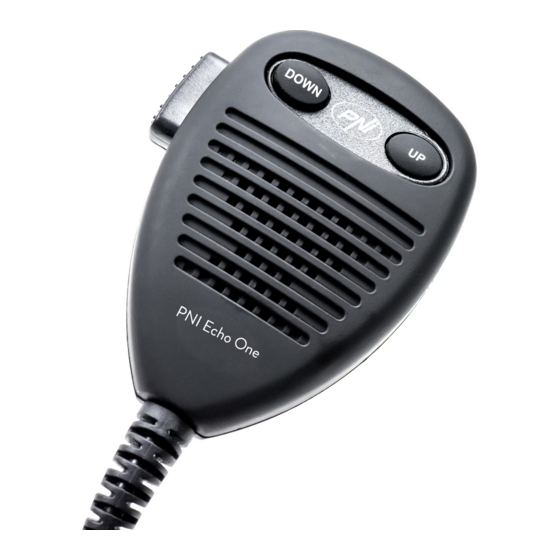

PNI ECHO ONE Manual

Dynamic microphone compatible with PNI CB radio:

• PNI Escort HP 6500
• PNI Escort HP 7120

FEATURES:

• Connector: RJ45
• Power supply: 5V (through the RJ45 socket)
• Dimensions: 50 x 25 x 75 mm
• Echo and roger beep module PNI ECH01 pre-installed

PIN CONFIGURATION

PIN1 - GND PIN4 - +5V
PIN2 - MIC PIN5 - TX, SUS, JOS
PIN3 - NC PIN6 - NC

PNI ECH01 ECHO AND ROGER BEEP MODULE

The echo and roger beep module PNI ECH01 is designed to work together with any CB
and VHF/UHF transceiver as an additional module, having as main functions:
• Generating the echo effect of the signal captured by the transceiver's microphone
and inserting it in the modulation level;
• Generating a custom signal (MP3 audio file) at the end of the transmission and
maintaining it.

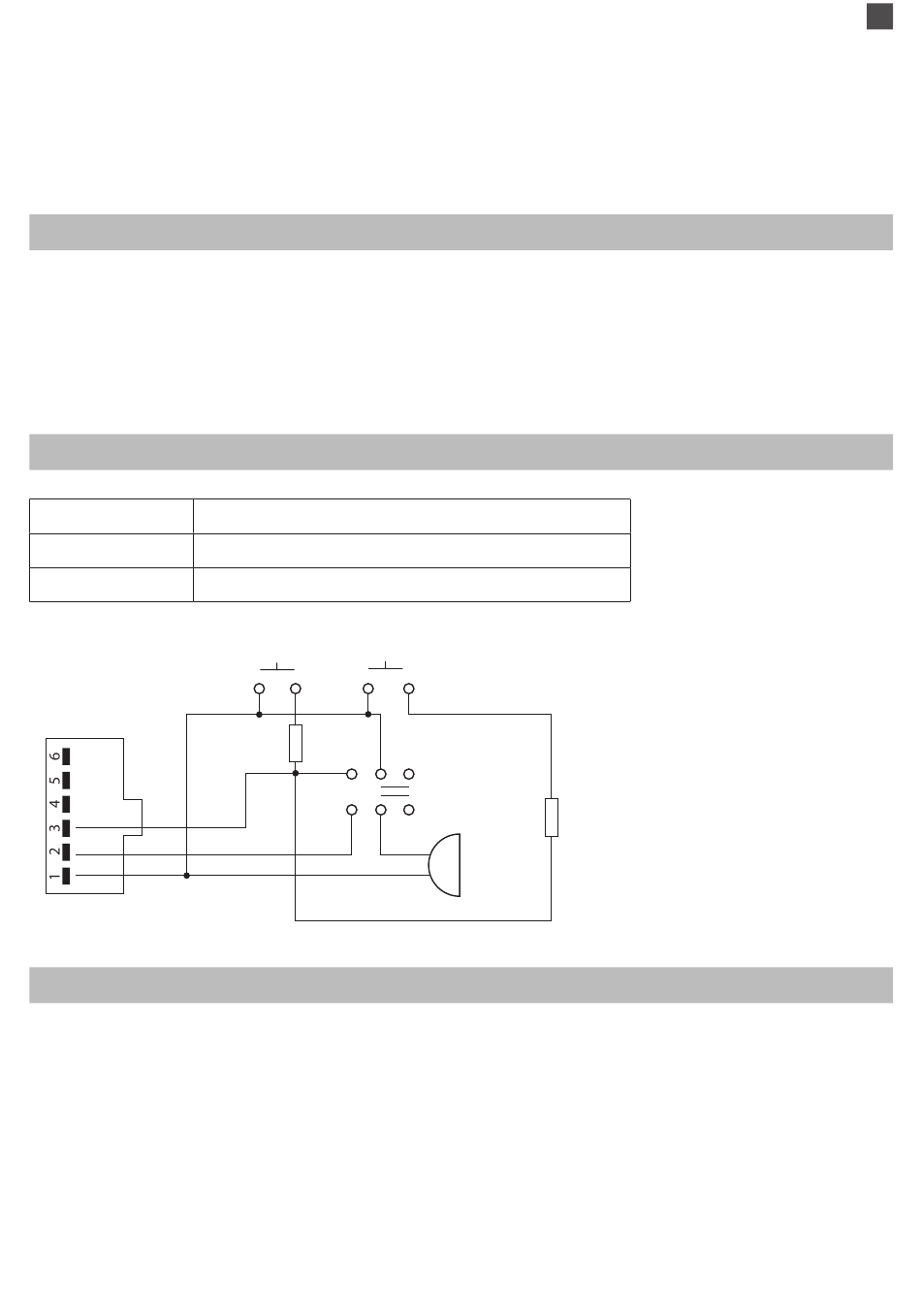

PNI ECHO ONE MICROPHONE
DOWN
UP
2K2
PTT
3K9
+
MIC
-
1. GND (braid)
2. MIC (white)
3. NC
4. +5V
5. TX, UP, DOWN (yellow)
6. NC
EN
