Introduction:
The new Bluetooth microphone PNI BT-MIKE 8500 can communicate wireless with your CB radio. Furthermore,
you can get out your car while keep using remotely BT-MIKE 8500 up to a distance of 10 m.
To enable this system you have to make Bluetooth your transceiver. You have to connect to your CB radio a
Bluetooth adapter: PNI BT-DONGLE 8001 compatible with PNI Escort HP 8001L ASQ CB transceiver with 2 pins
Kenwood type. Then you have to pair the microphone with the adapter.
The big news is the opportunity to use simultaneously the transceiver, the smart phone and the Bluetooth
microphone. With BT-MIKE 8500 you can answer your phone without taking your mobile phone in your hands.

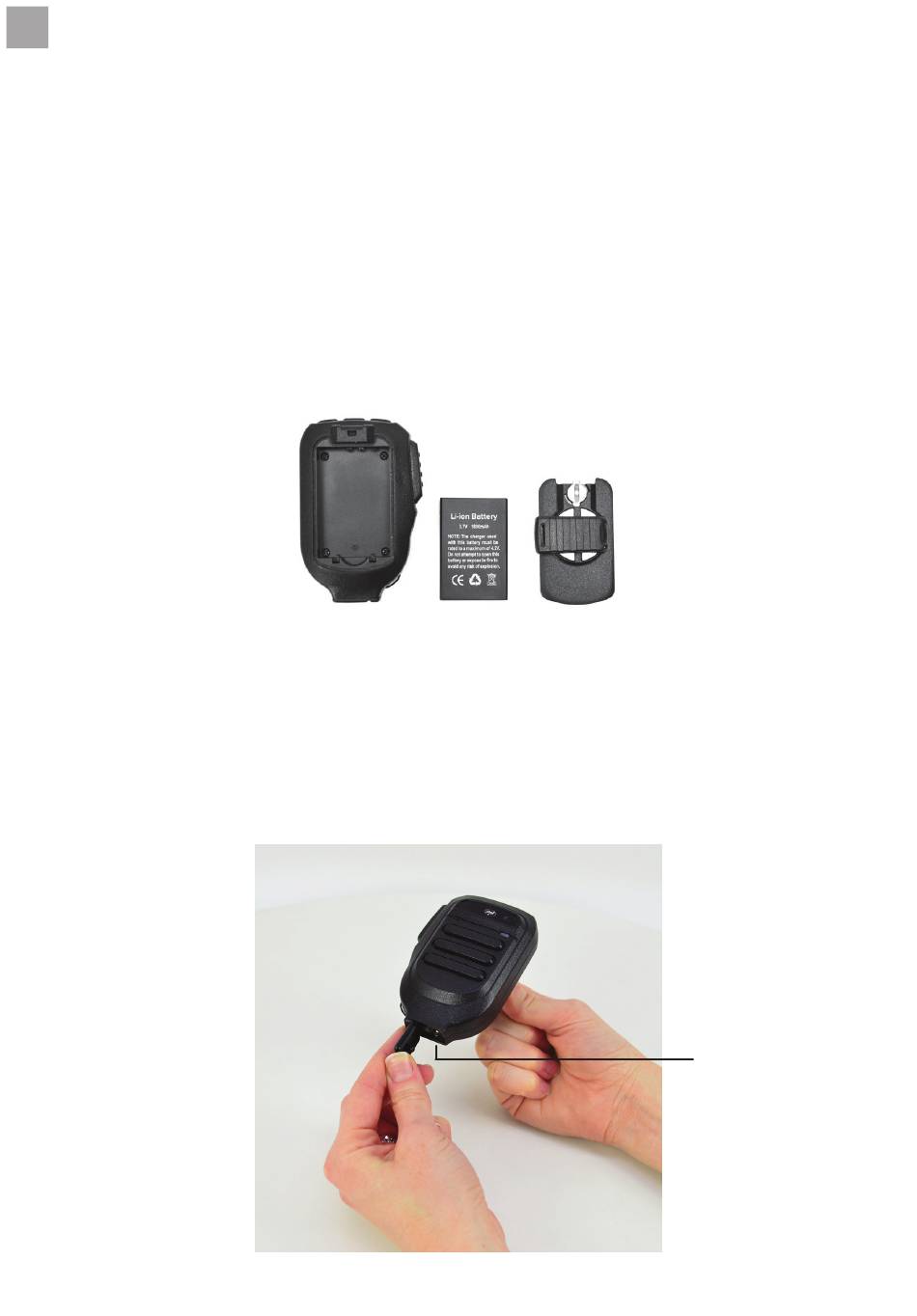

Battery compartment:
In order to open the battery compartment, rotate towards right or left the belt clip from the back of the microphone.
Then, using a screwdriver, easily turn towards right the screw. Remove the cover.
Note: The battery is included in the package. The microphone uses a 3.7V Li-Ion battery 1200mAh.
Charging the battery:
Plug one end of the charger in the microphone's jack, located in the lower side. Plug the other end of the cable in
a USB port from a computer or USB charger.
Note: The charging cable is included in the package.
Quick user guide
Bluetooth microphone PNI BT-MIKE 8500
1
3.5mm jack
for charging the battery
