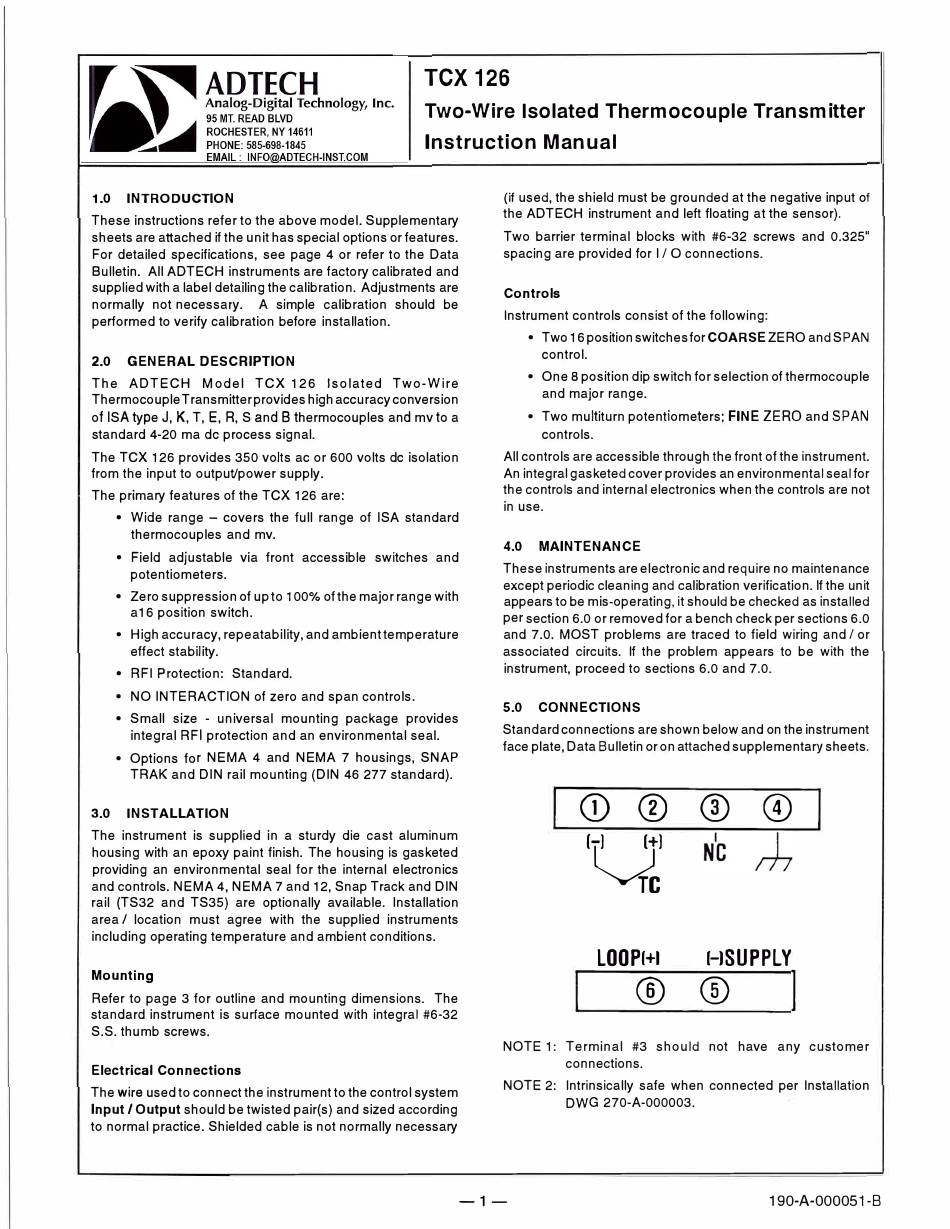

Adtech TCX 126 Instruction Manual

Two-wire isolated thermocouple transmitter

Table of Contents

Download this manual

Table of Contents

Need help?

Do you have a question about the TCX 126 and is the answer not in the manual?

Page 2 CALIBRATION FIELD TROUBLE SHOOTING GUIDE All ADTECH instruments are calibrated per your instructions This section offers a simple, first level trouble-shooting aid for at the factory. A calibration sticker located on the unit identifies an apparent instrument malfunction. the model, calibration, and options present.
Page 3 8.0 TABLES, OUTLINE/ MOUNTING Note: If 20mv elevation is used, zero offset is calculated as i lll ITT (ZERO INPUT+ 20mv) Example: Input = -5mv + 20mv = 15mv BURNOUT Upscale OFF 20 mv Elevation Switch ON Only Downscale (if minimum input is below 0 °...
Page 4 9.0 SPECIFICATIONS INPUT/OUTPUT INPUT SIGNALS a. Thermocouple and mv, all standard ISA Calibration (B, E, J, K, R, S, T), -20 mv to 100 mv spans (Z in greater than 1 megohm) b. Zero Suppression: up to 100% of the major range selected in 16 divisions of the coarse zero adjustment switch.
