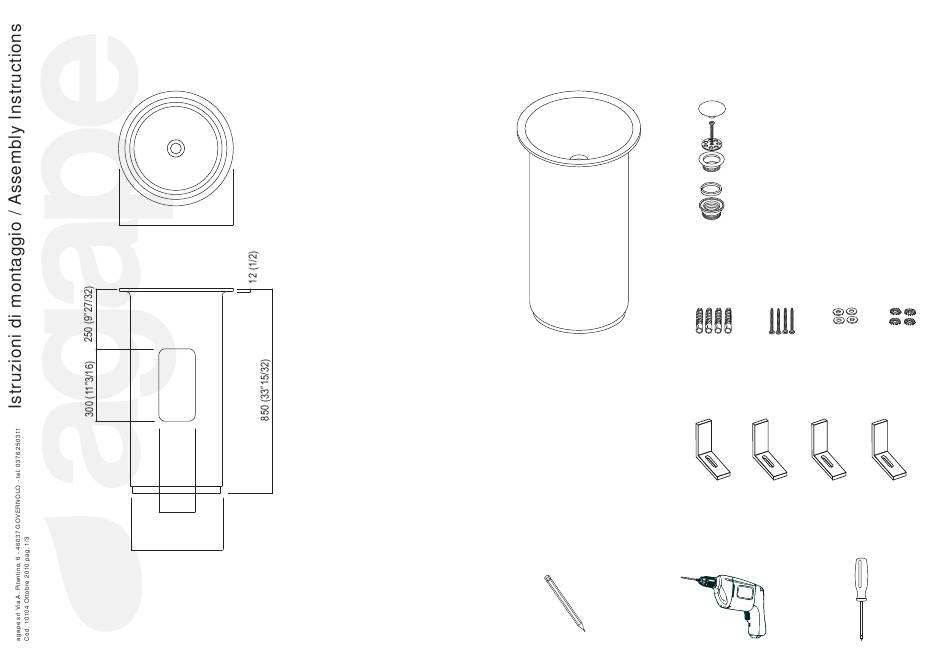

- Page 1 CER1062M "IN-OUT" Lavabo a colonna a parete / Wall mounted column washbasin DATI TECNICI / TECHNICAL DATA ESPLOSO / PRE-ASSEMBLED ø 476 (18”3/4) ø 8x50 (5/16”x1"31/32) 150 (5"29/32) ø 384 (15"1/8) STRUMENTI / TOOLS ø 8 (5/16”)
- Page 2 CER1062M "IN-OUT" Lavabo a colonna a parete/ Wall mounted column washbasin PARTICOLARE DEI FISSAGGI Piantana Square e Sen DETAIL OF THE FIXINGS Floor mounted tap Square and Sen ø 32 (1”2/8) 60° ø 344 (13"17/32) 8 5 0 Piantana Fez Floor mounted tap Fez 60°...
- Page 3 CER1062M "IN-OUT" Lavabo a colonna a parete/ Wall mounted column washbasin 35 (1”3/8) 11 (7/16”) 45° ø 8 (5/16”) 90° Antimuffa antimould Infilare il lavabo e regolare le staffe (E) contro la parete interna Insert the washbasin and regulate the...
