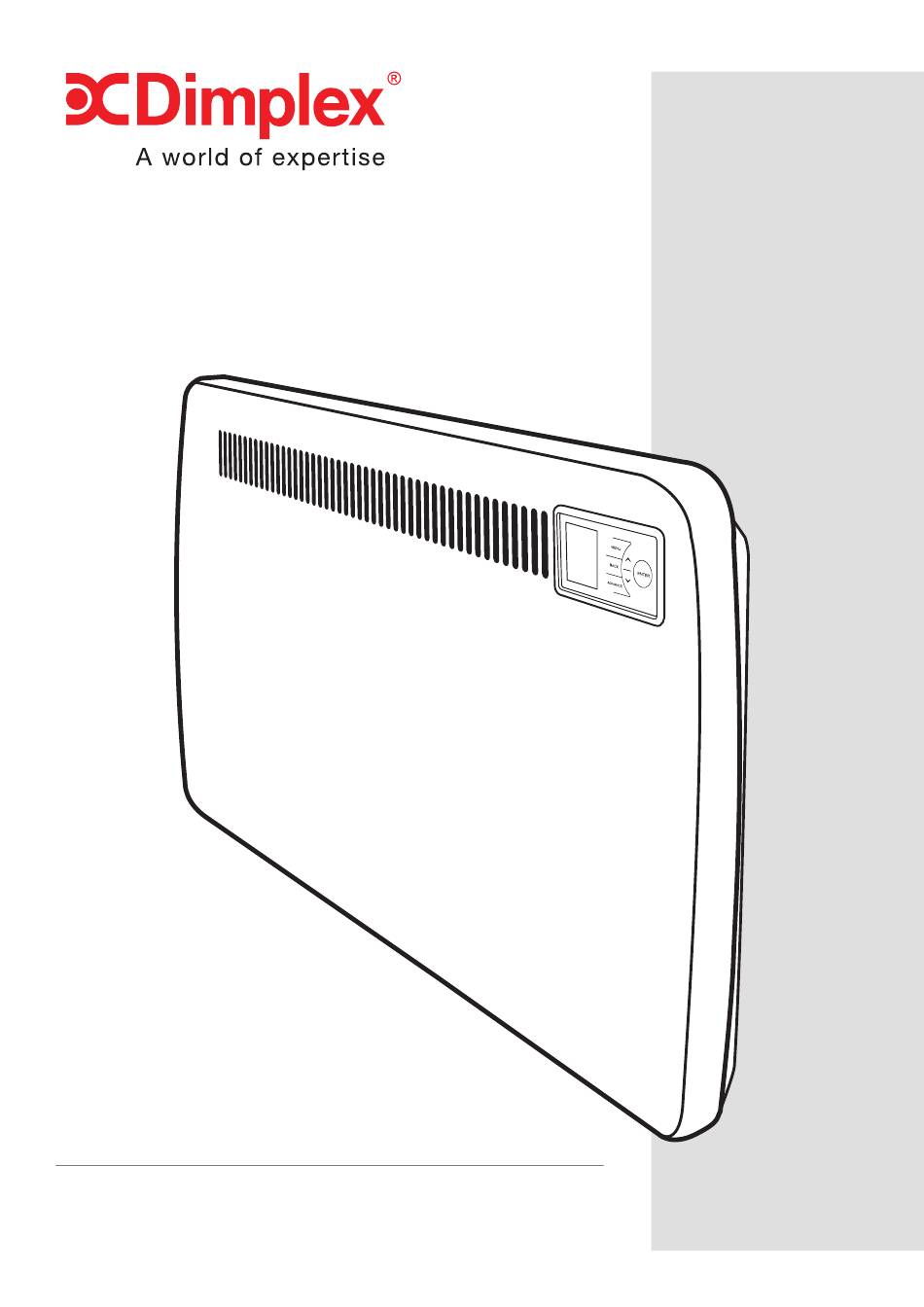

- Page 1 OPERATING INSTRUCTIONS MANUAL Low Surface Temperature Heater Models: LST050 LST075 LST100 LST150 These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. INDPUKP4RG ISSUE 8...
- Page 2 IMPORTANT These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. IMPORTANT SAFETY ADVICE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: IMPORTANT –...
- Page 3 3mm. Pilot Wire Connection The BLACK control wire is designed to carry a signal from a wall mounted Dimplex programmer. If a programmer is not being used, the pilot wire should be isolated in accordance with the current IEE Wiring Regulations.
-
Page 4: Wall Mounting
Re-insert the M4x20 screw in the M4 clinch nut on the wall bracket. This secures the heater to the wall plate. Dimensions Model(s) Watt (kW) A (mm) LST050 0.5 kW LST075 0.75 kW LST100 1.0 kW LST150 1.5 kW see Fig. 3... - Page 5 Fig. 1 Fig. 2 Fig. 4 Shelf Model (s) B (mm) C(mm) LST050 270(min) LST075 270(min) 108 mm LST100 270(min) 150 mm LST150 330(min) Fig. 3 150 mm (Min) 150 mm (Min)
-
Page 6: Notes To The Installer
Pilot wire mode must be enabled in the heater’s settings in order for the appliance to be controlled by a Dimplex controller with pilot wire connection. Press MENU, BACK and ENTER for ten seconds to enter the service menu, select Pilot Wire and press ENTER. - Page 7 Energy saving features The Dimplex LST heater has many features which are designed to save you money. It has a self- learning capability which learns the thermal characteristics of a room and determines how long the appliance needs to be on in order to reach target temperature based on factors such as room size, heat loss and prevailing weather.
- Page 8 Quick Start Guide This guide is for quick reference only. Please refer to the operating section for further information. How Does the Heater Control Work? The control allows you to choose when you want heat and at what temperature. When using a timer mode (see below), Comfort On will display on the home screen to tell you when the heater is maintaining the temperature displayed.
- Page 9 Which Timer Mode is Best for Me? The heater leaves the factory set in Out All Day mode. If you are out during the day and only require heat in the mornings and evenings then this mode will suit your lifestyle and you won’t need to alter anything. If you are in during the day then you should select the Home All Day mode which is a single heating period.
-
Page 10: Operation
Operation The controls are located on the top right of the front of the heater. The heater is fitted with an adjustable electronic controller consisting of a display screen and six touch sensitive buttons. Display Screen ‘Menu’ Button ‘Back’ Button ‘Up and Down’... -
Page 11: Control Functions
Control Functions The heater controls can be easily adjusted by using the six buttons on the User Interface. 1. The Display Screen shows the options available at each stage of adjustment. 2. Menu – displays the main options list; Date/Time – Set the date and time. Mode –... -
Page 12: Main Screen
Main Screen After 30 seconds of inactivity the heater will default back to the Main Screen. Here the chosen temperature is displayed along with the mode of operation. Any use of the ADVANCE function will be displayed here, and pressing ENTER will show the functions which are enabled. When left inactive for a long period of time this display will ‘sleep’... -
Page 13: Modes Of Operation
Modes of Operation The heater comes pre-programmed with a set of heating profiles. There are four options available - three preset and one user adjustable timer; (pre-programmed) following preset times Monday Sunday, which altered desired; 07.00 until 08.30 17.30 until 22.00 Home (pre-programmed) following... - Page 14 Choosing and Setting a Mode Timer Modes To choose a timer mode press MENU and to select Mode, then press ENTER. Now select Timer Mode, again using the ENTER button. Select and ENTER buttons. the mode required, by pressing the For options Out All Day, Home All Day and User Timer, three choices are available - Select, Preview and Modify.
- Page 15 If EcoStart control is disabled, the heater will not operate until the beginning of the heating period. This should be taken into consideration when setting the heating periods (See note below and page 17). In Holiday mode the number of days that the room will be unoccupied can be adjusted together with the required room temperature.
- Page 16 Advance The ADVANCE function allows the heating profile of the appliance to be changed temporarily. When Advance a timer has been selected, the ADVANCE function is used to begin the next Comfort On mode early. Home All Day If the heater is in Comfort Off mode and heat is Comfort On required, press the ADVANCE button.
-
Page 17: Child Lock
Child Lock To lock the controls press BACK and ENTER for three seconds. Child Lock will appear at the bottom of the screen. To unlock the control repeat the action of pressing BACK and ENTER for three seconds. NOTE: The controls cannot be adjusted when child lock is active. -
Page 18: Energy Saving Tips
Energy Saving Tips Treat your hot water tank... The energy we use to heat, light and power our homes contributes over a quarter of the UK’s Give it a jacket An insulating jacket for hot carbon emissions, the principle contributor to water tanks costs only a few pounds and climate change. - Page 19 This is normal and will first received or does not function correctly disappear after a short period of use. It is contact us by e-mail at aftersales@dimplex. however advisable to keep the room co.uk or call 0344 879 3588. For ROI please well ventilated.
- Page 20 Hedge End, Southampton SO30 2DF © Glen Dimplex Group LTD. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing. Dimplex is a brand of Glen Dimplex Heating and Ventilation, Millbrook house, Grange Drive,...
