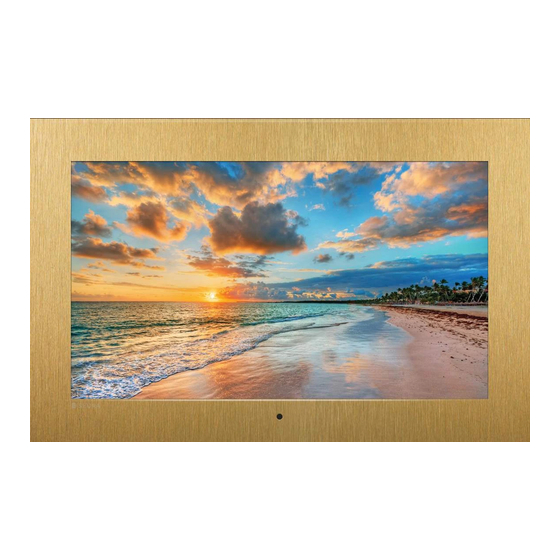

- Page 1 USER MANUAL Hydra™ Indoor Waterproof Television 19-INCH AND 27-INCH T VS MODEL NUMBER IWT-19.6 IWT-27.6 WARRANTY REGISTRATION REGISTER FOR EXTRA BENEFITS Activate within 30 days of purchase: seura.com/activate W W W. SEUR A .COM...
-
Page 2: Table Of Contents
Contents CONTENTS Specifications ..........................3 Safety Warnings ...........................4-5 2-Part Product Anatomy ........................6 Display Requirements ........................7 Setup ..............................8 Input/Output Overview .......................8 Remote Control Functions ....................8 Installation..........................9-12 Making Connections ........................13 On Screen Display Menu (OSD) .....................14-17 Input Source Selection ..................... 14 Video Settings ........................ -
Page 3: Specifications
Specifications 19 INCH TV 27 INCH TV Model: IWT-19, Version: 6 Model: IWT-27, Version: 6 PROTECTIVE GLASS Tempered safety glass STORAGE TEMPERATURE RANGE 32°F to 140°F OPERATING TEMPERATURE RANGE 41°F to 122°F STORAYGE HUMIDITY RANGE 5–85% RH, non-condensing OPERATING HUMIDITY RANGE 0–100% RH, non-condensing VIEWABLE SCREEN SIZE 15.9"... - Page 4 Thank you for selecting a Séura Indoor Waterproof Television. This product has been inspected and packaged carefully before shipment. Please read this guide before beginning installation. Please keep this manual for future reference. Information in this manual is subject to change without prior notice. FCC Information This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 5: Safety Warnings
WARNING: READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL OR SERVICE THIS PRODUCT. When installing and during use of this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons including the following: •... -
Page 6: 2-Part Product Anatomy
2-Part Product Anatomy BACK BOX GRAVITY LOCK MOUNTS FRAMING MEMBER SCREW-MOUNTING SLOTS (4) FRAMING MEMBER SCREW- MOUNTING SLOTS (4, INPUT/OUTPUT/LOW VOLTAGE 2 PER SIDE) PASS-THROUGH PORT LOW VOLTAGE TV ASSEMBLY POWER LOCATION GRAVITY LOCK GLASS FACE GUIDE SLOTS (4) ON-UNIT CONTROL BUTTONS INPUTS/OUTPUTS Volume Menu... -
Page 7: Display Requirements
Display Requirements Operation and Storage Requirements The temperature range for operating the device is 41° F to 122° F. Do not install the device in the proximity of heat sources, such as heating pipes, heaters, furnaces or other devices that radiate heat. Mount the device in such a way that it is protected against moisture. Trouble free operation is ensured up to 100% air humidity. -
Page 8: Setup
waterproof Setup waterproof Before using the device please check the following contents of the box for completeness: Sold separately: MENU MUTE EXIT Back Box TV Assembly Low-Voltage Power Adapter and Cable LAST YPbPr Composite RS-232 IR Remote Resource Mounting 50' Low-Voltage Adaper Adapter Adapter... -
Page 9: Installation
Installation NOTE: All Séura installation instructions indicate generalized nominal residential wood framing construction and are not indicative of any particular building code. It is the installers responsibility that all electrical, audio/visual, and framing construction are code compliant to the municipality in which the product is being installed. - Page 10 Installation Step 2 Install back box into rough opening. Using the provided four screws and washers, mount the back box tight to the finished wall surface by screwing through the screw- mounting slots in the back box. Ensure the front of the box is flush with the wall, and mounting tabs rest on the finished wall surface.
- Page 11 Installation Step 3 Verify functionality. Place TV assembly face down on a clean, dry surface near the installed back box. Make all necessary A/V and electrical connections and ensure full functionality of the TV, remote and any other A/V connections. Before applying adhesive, test-fit the TV assembly in back box.
- Page 12 Installation Step 5 Remove excess sealant. Wipe drippping or excessive sealant. Allow waterproof sealant 24 hours to cure at 72 degrees Fahrenheit before exposing to moisture, or follow recommended time and temperature designated by sealant instructions. Once fully cured, use a razor blade or utility knife to carefully remove excess sealant. FINISHED SEALANT WALL...
-
Page 13: Making Connections
IR receiver, or other AV control system. Attach a 3.5mm mono plug into the TV’s IR input and use the discrete IR codes provided at seura.com/download-center. IR input tip is signal and sleeve is ground. -
Page 14: On Screen Display Menu (Osd)
On Screen Display Menu (OSD) On Screen Display Menu (OSD) In the on screen display menu (OSD) you can adapt the characteristics of your display based on personal preferences. OSD menus include Video, Audio, TV, Setup, and Parental. 1. Press on your remote control to open the OSD menu 2. -
Page 15: Advanced Video Settings
OSD (cont.) Advanced Video Settings The Advanced Video Settings menu offers further options to refine the image characteristics of your Séura television. Adjustment options include: MPEG NR Adaptive Luma Control Flesh Tone DI Film Mode Blue Stretch Game Mode Blue Mute Gamma Color Temperature COLOR TEMPERATURE... -
Page 16: Tv Settings
OSD (cont.) Setup Menu The Setup Menu offers options to determine fundamental settings of your Séura television based on personal preferences. Adjustment options include: OSD Language Caption Time Setup Reset Default TIME SETUP Options within the Time Setup selection include Time Zone, Time, and Sleep Timer. -
Page 17: Parental Menu
OSD (cont.) Parental Menu The Parental Menu offers options to restrict program viewing based on various national rating systems. To access the menu, enter the 4-digit Password using the keypad on the remote. The factory default password is “0000”. Adjustment options include: Program Block Change Password Clean All (or reset settings) -
Page 18: Media Support
Media Support Special Features Multimedia Player Software Update Signal Scan RS-232 Noise Reduction USB Media Support USB Media Support File Extension Video Audio Movie .avi DivX, XviD, MPEG-4 MP3, WMA, AAC .mpg MPEG-1, MPEG-2 .dat MPEG-1 .mov / .mkv H.264 Music .mp3 .wma... -
Page 19: Control
CONTROL DOCUMENTATION To access current control documents, please visit www.seura.com/download-center. • RS-232 Protocol • IR Commands LIMITED PRODUCT WARRANTY For information regarding Séura’s warranty policy, please visit our website: www.seura.com/ warranty. If the current Séura warranty policy is after your product purchase date, please contact Séura Customer Support to request warranty documentation from the date of your purchase.
