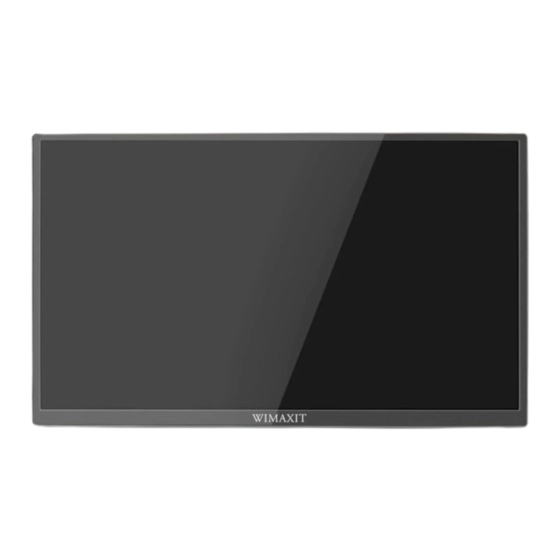

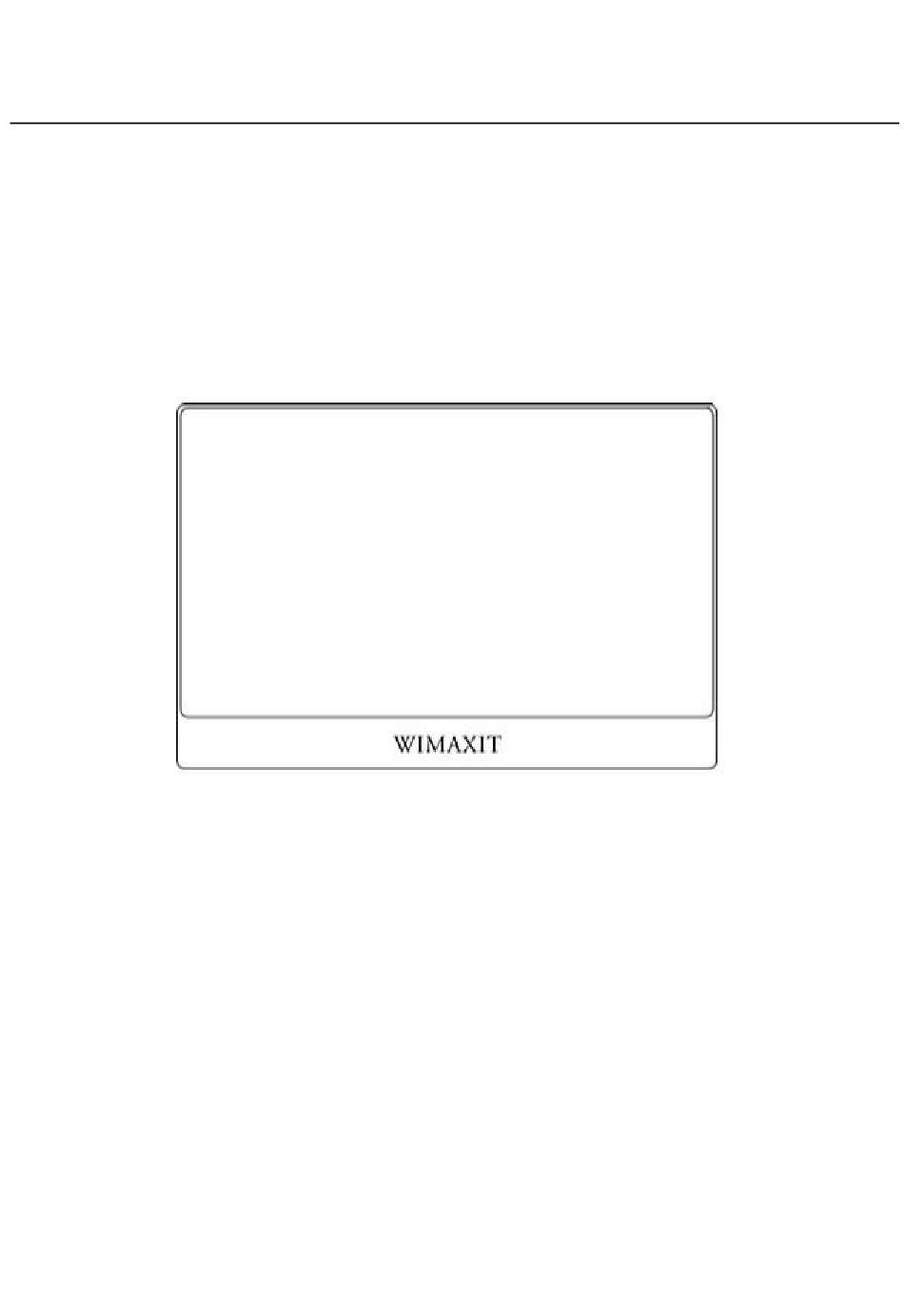

- Page 1 WIMAXIT PORTABLE TOUCHSCREEN MONITOR M1410CT USER MANUAL In order to ensure your safe use of this product, please read this manual carefully before using this product and keep it properly. Customer support:support@wimaxit.com Website:www.wimaxit.com...
- Page 2 Contents in the box 1 M1410CT Monitor 2 Mini HDMI to HDMI Cable 3 USB-C to USB-C Cable USB-A(3.0) to USB-C cable 5 DC 5V 2A USB Power Adapter 6 User Manual 7 Cleaning Cloth 8 Warranty Card Note: If there is anything missing or damaged in the table list, contact us immediately.
-
Page 3: Left Side
Interface instructions LEFT SIDE RIGHT SINE Customer support:support@wimaxit.com Website:www.wimaxit.com... - Page 4 Red Color: No valid source/ Standby status Dark: OFF Full-Featured USB-C Port (Power&Video&Audio&Touch input port) Support DP ALT MODE Power Indicator Light Blue Color: ON/ Input source detected Red Color: No valid source/ Standby status Dark: OFF Customer support:support@wimaxit.com Website:www.wimaxit.com...
- Page 5 Hold wheel button for 3 seconds. Show Settings Menu: Press wheel button. While on menu status, short press to confirm and save your setting. Volume Setting Shortcut: Push up to increase volume push down to decrease volume Brightness Setting Shortcut: Customer support:support@wimaxit.com Website:www.wimaxit.com...
- Page 6 Select On or Off Advance 3D Sound Select On or Off Anchor Select On or Off Source Select the following(Auto, HDMI, TypeC) Option Language Select language (English, Esp., Ita., Fra., Deu., 日本 語 , 한국어,Pyc., 简体中文, 繁体中文) Customer support:support@wimaxit.com Website:www.wimaxit.com...
- Page 7 Connect via Mini HDMI port: Mini HDMI will only input/output display signal. To activate touch functionality, connect the monitor to your computer via either a USB 3.0 A to USB-C cable or USB-C to USB-C cable through which the touch signal from the Wimaxit will be sent to your device.
- Page 8 AC adapter to power the monitor. You can use single-finger touch or multi-finger touch for up to 10 simultaneous touch points. Please download the driver from here: https://touch-base.com/download or contact us support@wimaxit.com if you encounter any touchscreen problem Customer support:support@wimaxit.com Website:www.wimaxit.com...
- Page 9 How to Connect to Type-c device? Customer support:support@wimaxit.com Website:www.wimaxit.com...
- Page 10 Android Phones： Huawei Mate P30/P30 Pro/Mate P20/P20 Pro/Mate 10/10 Pro. Samsung S9/S9+/S8/S8+/S10/Note 8/Note9(Samsung dex) NOTES: Touchscreen function is only enabled when connecting to your device via USB-C as the mini HDMI connection does not output touch signal. Customer support:support@wimaxit.com Website:www.wimaxit.com...
-
Page 11: Specifications
FHD monitor. powering the monitor if your monitor is not powering on. Not all mobile devices output signal and may not be able to work with the WIMAXIT Monitor. Please see the FAQ for more information. -
Page 12: Troubleshooting (Faq)
Some phone brands, by design, do not output any display signal. Unfortunately, this means you will not be cable to connect to your smartphone to your Wimaxit. For Apple tablets and smartphones, you will need to use a special Lighting-to-Mini ... - Page 13 Wimaxit to a charger or another device like a power bank. 4. Why doesn’t the touchscreen work? Wimaxit’s Mini HDMI input does not out touchscreen signal. You will need to connect your device via the Provided USB-C and potentially power your monitor via another USB-C port(power port) if your device does not output sufficient power for the touchscreen to work.
- Page 14 (white does not look white) Inspect the USB-C cable and make sure that none of the pins are bent. Use another USB-C or Mini HDMI cable to connect your device to the Wimaxit display. 11. My monitor keeps shutting off without warning The monitor will shut down when its power supply is low.
- Page 15 THANK YOU FOR CHOOSING US! WIMAXIT MONITOR www.wimaxit.com support@wimaxit.com Customer support:support@wimaxit.com Website:www.wimaxit.com...
