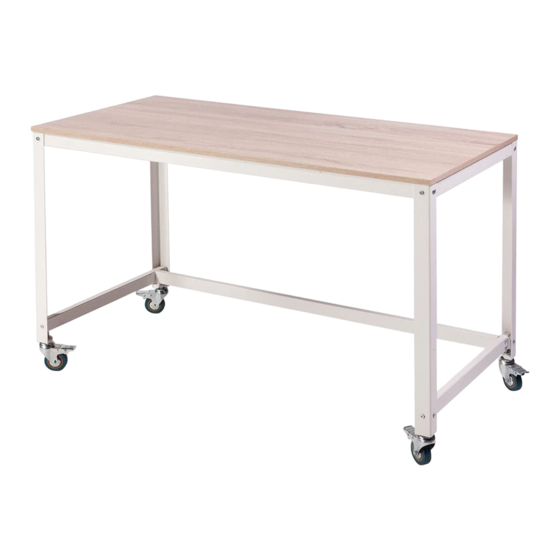

- Page 1 ASSEMBLY INSTRUCTIONS MODEL 50-JN16DSKLO SUPPLIER CODE: JNFF LOFT WRITING DESK, LIGHT OAK...
- Page 2 Desktop maximum weight capacity = 150 lbs...
-
Page 3: Replacement Parts
PARTS AND HARDWARE LIST EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. PART DESCRIPTION STOCK NO 51-JN16DSK1DF Desktop Frame 51-JN16DSK1LG 51-JN16DSKLODT Desktop 51-JN16DSK1BB Back Support Bar 51-JN16DSK1SB Side Support Bar 51-JN16CA5 Caster HARDWARE KIT STOCK # 51-JN16DSK1HA DESCRIPTION - READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING. - Page 4 ASSEMBLY INSTRUCTIONS NOTE: Some of the screws are of similar length. Observe carefully which screw is needed before beginning each step. STEP 1 Attach the legs (2) to the desktop frame (1) using eight screws (A). A x 8 STEP 2 (i) Align the side support bars (5) with the legs (2).
- Page 5 ASSEMBLY INSTRUCTIONS STEP 3 Screw a caster (6) into the bottom of each leg. STEP 4 Attach the assembled frame to the desktop (3) with four screws (D) using the brackets on the desktop frame (1). D x 4...
-
Page 6: Safety And Maintenance
Comfort Products’ authorized dealers as shown by the original sales receipt. The end-user customer remedy pursuant to this warranty is limited to repair or replacement of parts at Comfort Products’ option within a reasonable amount of time. Comfort Products reserves the right to require damaged parts to be returned to Comfort Products upon request.
