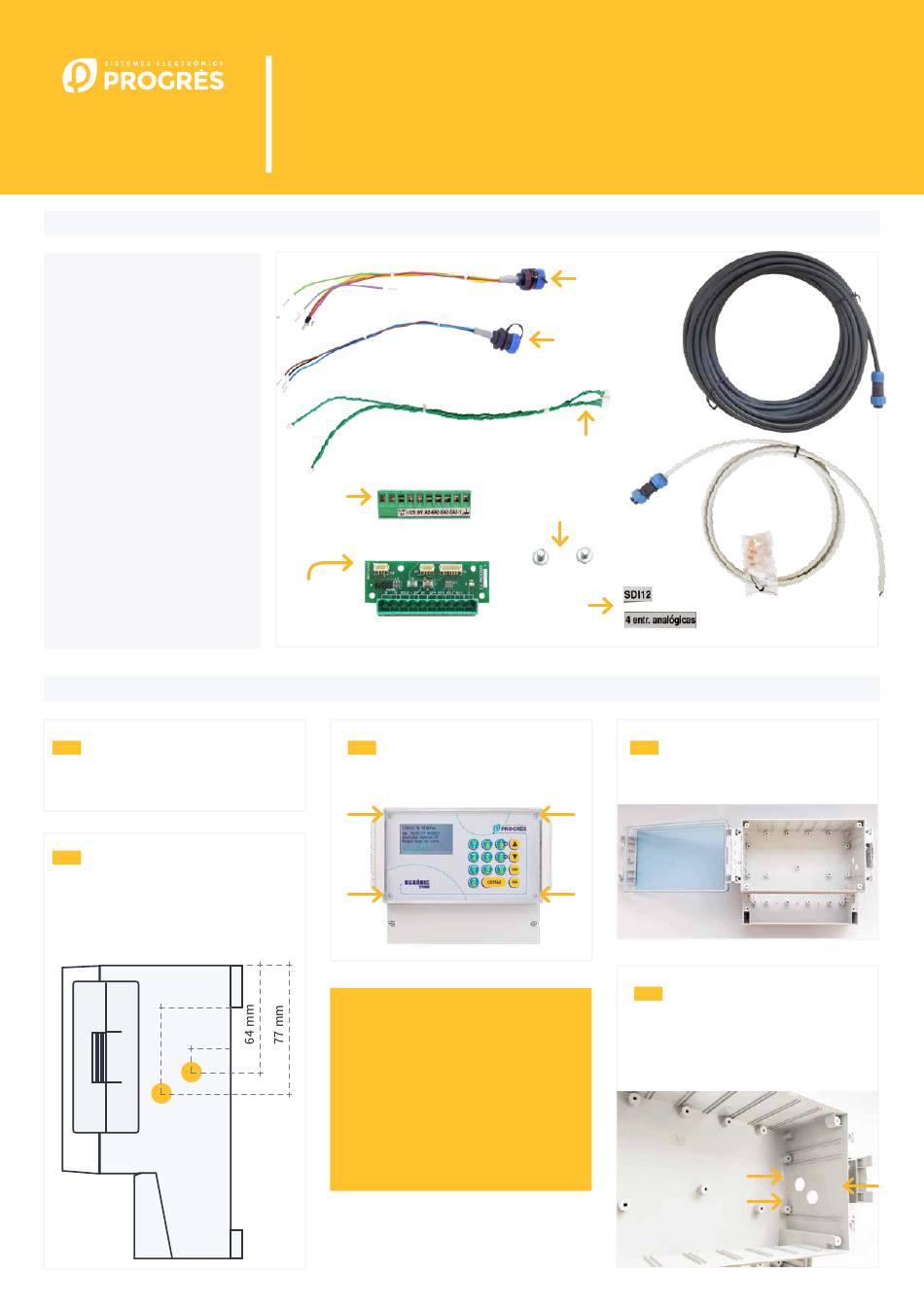

SUPPLIED MATERIAL
•
Interior SDI-12 cable
•
Exterior SDI-12 cable
•
Cable 4 interior
analogue inputs
•
Cable 4 exterior
analogue inputs
•
SDI-12 board and 4
analogue inputs
•
Terminal
•
Board link cables
•
Two SHR screws
•
Adhesive labels
•
Template for holes
BOX FORMAT ASSEMBLY
1
Disconnect power from the
controller.
4
Make two holes in the box as
shown in the image using the
attached template.
41 mm
23 mm
Diameter
13 mm

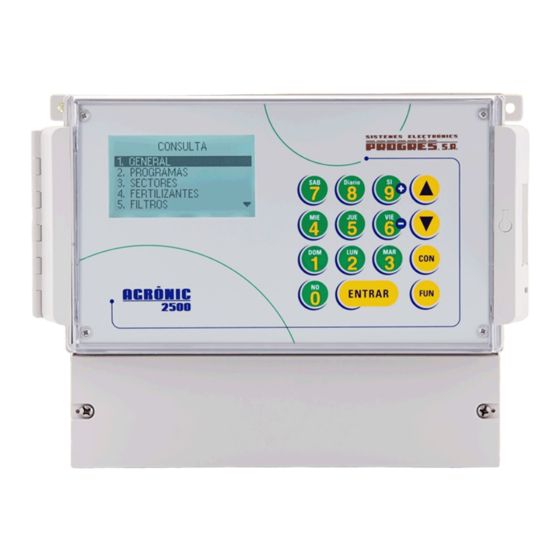

Agrónic 2500
Installation option SDI-12 + 4
analogue inputs
Terminal
SDI-12
board and
4 analogue
inputs
2
Remove the four screws that
hold the keyboard.
IMPORTANT
Use a template to make the
holes. If the holes are not made
exactly as they should be, the
components will not fit.
Cable 4 interior
analogue inputs
Interior SDI-
12 cable
Board link cables
Two SHR
screws
Adhesive labels
3
5
Exterior SDI-
12 cable
Cable 4 exterior
analogue inputs
Unscrew and remove the two
plates from the controller.
Remove the three inner
bars on the right side of the
drawer with a chisel/file, as
shown in the image.
Advertisement
Related Manuals for Sistemes Electronics Progres Agronic 2500
Summary of Contents for Sistemes Electronics Progres Agronic 2500
- Page 1 Agrónic 2500 Installation option SDI-12 + 4 analogue inputs SUPPLIED MATERIAL Cable 4 interior • Interior SDI-12 cable analogue inputs • Exterior SDI-12 cable Exterior SDI- Interior SDI- • Cable 4 interior 12 cable 12 cable analogue inputs • Cable 4 exterior analogue inputs •...
- Page 2 Pass the SDI-12 cable through the IMPORTANT: On the inside, Replace the base plate and its five hole closest to the bottom of the the black notch should be screws back in the controller. box. The straight sides should be parallel to the bottom of the parallel to the bottom of the box.
- Page 3 Agrónic 2500 SDI-12 hole template + four analogue inputs RIGHT SIDE 23 mm 41 mm Hole diameter 13 mm Bottom Sistemes Electrònics Progrés, S.A. Polígon Industrial, C/ de la Coma, 2 | 25243 El Palau d’Anglesola | Lleida | España Tel.
