Sealey SA800 Quick Start Manual

Issue No: 1
Item Part No. Description Date Issued: 070302
1 SA800.01 Cover
2 SA800.02 Felt
3 SA800.03 Muffler Body
4 SA800.04 O-ring - SA800 only
5 SA800.05 Cone Muffler
6 SA800.06 Inlet Bushing
7 SA800.07 Spring Pin
8 SA800.08 Lever
9 SA800.09 Snap Ring
10 SA800.10 O-ring
16 SA800.16 Regulator Asm.
18 SA800.18 Rubber Cover
19 SA800.19 Housing
20 SA800.20 Flat Screw
22 SA800.22 Washer
23 SA800.23 Bearing
24 SA800.24 Rear Plate
25 SA800.25 Rotor, 6" Pad
26 SA800.26 Rotor Blade
27 SA800.27 Cylinder
28 SA800.28 O-ring
29 SA800.29 Spring Pin
Item Part No.
30 SA800.30 Spring Pin
31 SA800.31 Front Plate 41 SA800.41
32 SA800.32 Bearing 42 SA800.42
33 SA800.33 O-ring 44 SA800.44
34 SA800.34 Guard Bushing 45 PTC/150VA 6" Velcro Pad - SA800
35 SA800.35 Rotor Key 46 SA800.46
36 SA800.36 Shaft Balancer, 6" Pad 47 SA800.47
38 SA800.38 Snap Ring 48 AK290
39 SA800.39 Bearing 56 SA801.56
40 SA800.40 Felt Ring 58 SA800.58
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications
and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full
name and address, including postcode.
Sole UK Distributor, Sealey Group,
Bury St. Edmunds, Suffolk.
01284 757500 01284 703534

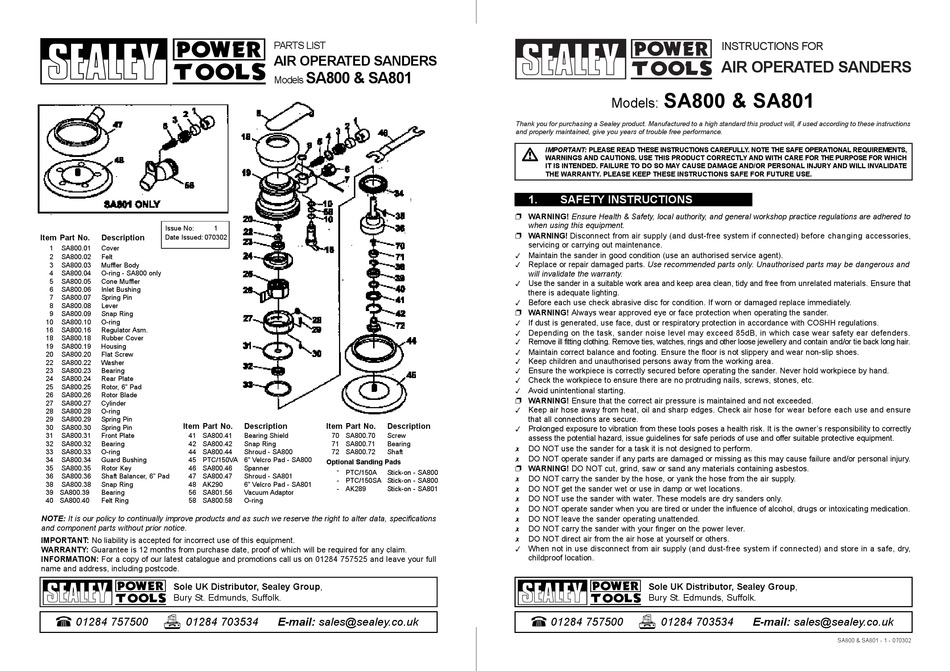

PARTS LIST
AIR OPERATED SANDERS
SA800 & SA801
Models
Description Item Part No. Description
Bearing Shield 70 SA800.70 Screw
Snap Ring 71 SA800.71 Bearing
Shroud - SA800 72 SA800.72 Shaft
Optional Sanding Pads
Spanner
- PTC/150A
Stick-on - SA800
Shroud - SA801
- PTC/150SA Stick-on - SA800
6" Velcro Pad - SA801
- AK289 Stick-on - SA801
Vacuum Adaptor
O-ring
E-mail: sales@sealey.co.uk
SA800 & SA801
Models:
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
! WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to
when using this equipment.
! WARNING! Disconnect from air supply (and dust-free system if connected) before changing accessories,
servicing or carrying out maintenance.
Maintain the sander in good condition (use an authorised service agent).
"
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and
"
will invalidate the warranty.
Use the sander in a suitable work area and keep area clean, tidy and free from unrelated materials. Ensure that
"
there is adequate lighting.
Before each use check abrasive disc for condition. If worn or damaged replace immediately.
"
! WARNING! Always wear approved eye or face protection when operating the sander.
If dust is generated, use face, dust or respiratory protection in accordance with COSHH regulations.
"
Depending on the task, sander noise level may exceed 85dB, in which case wear safety ear defenders.
"
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain and/or tie back long hair.
"
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
"
Keep children and unauthorised persons away from the working area.
"
Ensure the workpiece is correctly secured before operating the sander. Never hold workpiece by hand.
"
Check the workpiece to ensure there are no protruding nails, screws, stones, etc.
"
Avoid unintentional starting.
"
! WARNING! Ensure that the correct air pressure is maintained and not exceeded.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure
"
that all connections are secure.
Prolonged exposure to vibration from these tools poses a health risk. It is the owner's responsibility to correctly
"
assess the potential hazard, issue guidelines for safe periods of use and offer suitable protective equipment.
DO NOT use the sander for a task it is not designed to perform.
#
DO NOT operate sander if any parts are damaged or missing as this may cause failure and/or personal injury.
#
! WARNING! DO NOT cut, grind, saw or sand any materials containing asbestos.
DO NOT carry the sander by the hose, or yank the hose from the air supply.
#
DO NOT get the sander wet or use in damp or wet locations.
#
DO NOT use the sander with water. These models are dry sanders only.
#
DO NOT operate sander when you are tired or under the influence of alcohol, drugs or intoxicating medication.
#
DO NOT leave the sander operating unattended.
#
DO NOT carry the sander with your finger on the power lever.
#
DO NOT direct air from the air hose at yourself or others.
#
When not in use disconnect from air supply (and dust-free system if connected) and store in a safe, dry,
"
childproof location.
Sole UK Distributor, Sealey Group,
Bury St. Edmunds, Suffolk.
01284 757500 01284 703534
INSTRUCTIONS FOR
AIR OPERATED SANDERS
E-mail: sales@sealey.co.uk
SA800 & SA801 - 1 - 070302
