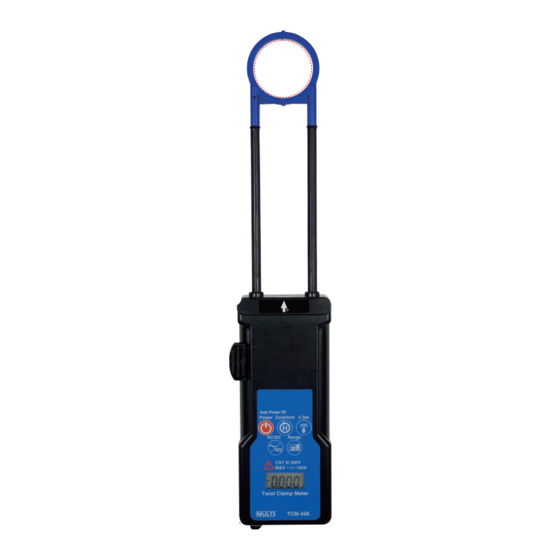

Twist Clamp Meter
INSTRUCTION MANUAL
Thank you very much for selecting our digital AC/DC clamp-on
Tester TCM-45E.
This model is complex instrument and employ a very reliable
mechanical/electronic design.
Before you use your new instrument, read this Instruction
Manual completely and familiarize yourself thoroughly with
all functions.
Keep this manual carefully to take out whenever you need.
MULTI MEASURING INSTRUMENTS CO.,LTD.
Akihabara Murai Bldg. 7F, 1-26 Kanda Sakuma-cho,
Chiyoda-ku, Tokyo, Japan, 101-0025
TEL : +81-3-3251-7016 FAX : +81-3-3253-4278
Home Page : http://www.mutimic.com/e
E-mail :
multi@multimic.com
TCM-45E
Advertisement
Table of Contents
Related Manuals for MULTI MEASURING INSTRUMENTS TCM-45E
Summary of Contents for MULTI MEASURING INSTRUMENTS TCM-45E
- Page 1 Manual completely and familiarize yourself thoroughly with all functions. Keep this manual carefully to take out whenever you need. MULTI MEASURING INSTRUMENTS CO.,LTD. Akihabara Murai Bldg. 7F, 1-26 Kanda Sakuma-cho, Chiyoda-ku, Tokyo, Japan, 101-0025 TEL : +81-3-3251-7016 FAX : +81-3-3253-4278 Home Page : http://www.mutimic.com/e...
- Page 2 1.FEATURES 1. The Twist Clamp Meter TCM-45E is an AC/DC clamp meter that has been developed to easily measure the current of cables that are difficult to measure when they are located deep inside. 2. The 0 adjustment of the DC current of this instrument can be performed by only pushing the 0 set switch once, and data could be hold even in a deep place where normally reading is impossible, then the measured value could be confirmed at hand.
- Page 3 3.SPECIFICATIONS Safety standard : Meets the requirements for double insulation to IEC 1010-2-032, IEC 61010-1, IEC 61010-2-032 installation CategoryⅢ300V phase to earth. Withstand Voltage: Between CT through-hole and grip: AC3700V, 1min Measuring Method: CT clamp method AC Detecting Method: RMS detection (analog calculation method) A/D Conversion Method: Successive approximation method Jaw opening capability : 45mmφ...
- Page 4 4.HANDLING METHOD Dimensions and Description of Each Part ① Clamp Type CT: Current detection sensor for the main body. ② Open/Close Lever: When you push the lever down, CT clamp opens. ③ Power Switch: Switch to turn the power ON/OFF. ④...
- Page 5 * If the battery is left with the wrong polarity, the battery will heat up and become defective. That battery can not be used again even if it is reinserted correctly. * Please dispose the used batteries following the rules of the designated place. * When the 「...
- Page 6 5.REPAIR SERVICE When making requests for repair service, please bring the instrument directly to the dealer. If this is impossible, however, send the instrument directly to our sales office. When mailing this instrument, always pack it in its original or equivalent packing material and pack together with name, address, telephone number and the warranty documentation.
