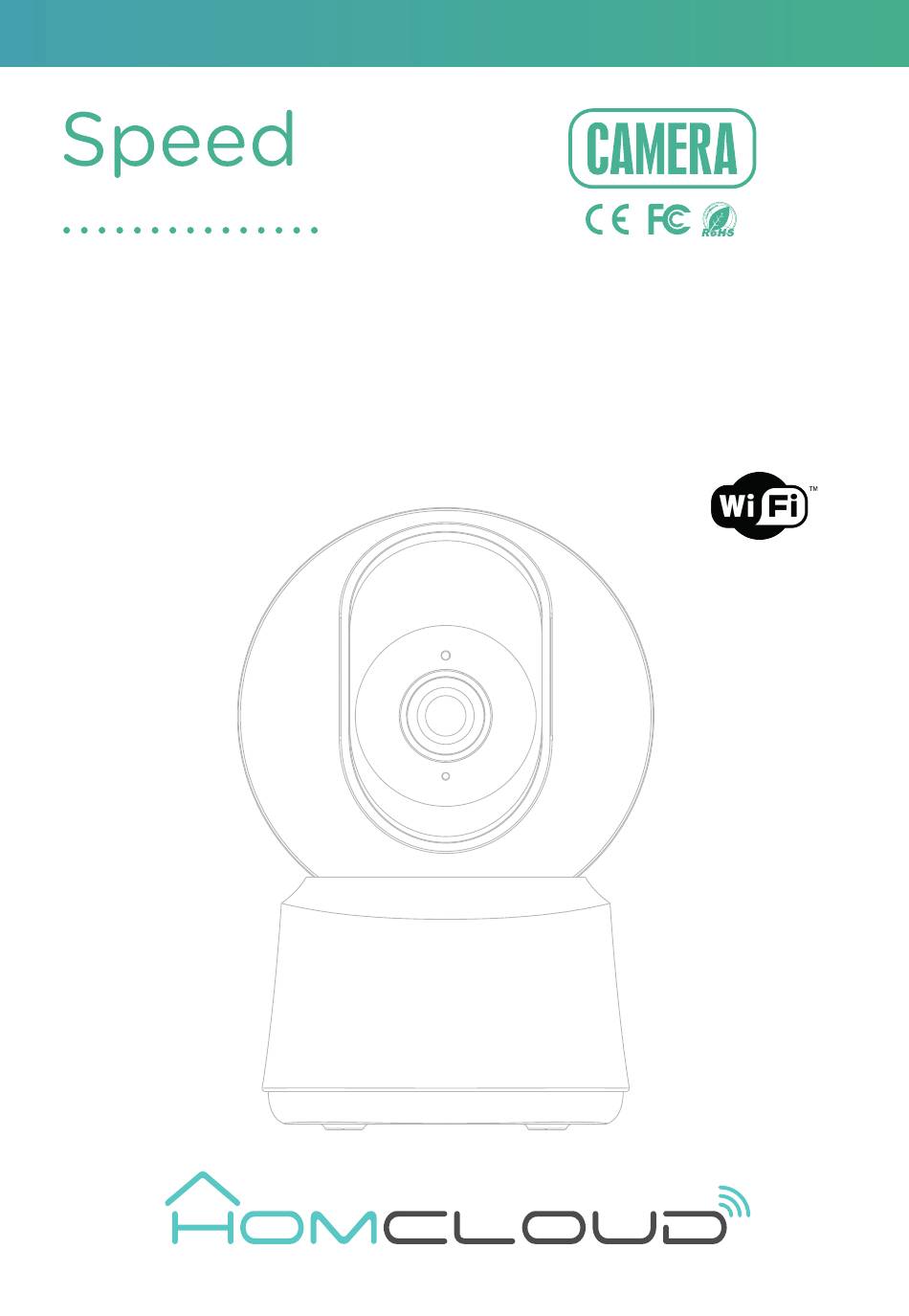

- Page 1 ORIGINALITY DESIGN SMART - AND BEAUTIFUL QUICK GUIDE...
-
Page 2: What's In The Box
What's in the box Please consult this checklist for all parts. EU Power adapter Speed 12S USB cable Bracket Screws Manual... - Page 3 Description Status light Microphone Speaker SD card slot Reset Micor USB Power DC 5V/1A Status light Solid red light on: the camera is turning on or malfunctional Blinking red light: awaiting WiFi connection (faster blinking) Solid blue light on: camera running correctly Blinking blue light: currently connecting (faster blinking) Microphone Captures sound for your video...
-
Page 4: Installation
Installation 1 Use the included mounting bracket to fix the camera to a clean surface. 2 Or, install the camera on a flat surface. - Page 5 Connection Set up router The router supports the 2.4GHz WiFi (doesn't support the 5GHz), and is connected to the WiFi network.Please set the parameters of the router before connecting the WiFi network, and record the SSID and password of your WiFi. Please keep network available 2.4GHz 5GHz...
- Page 6 Open the Smart Life App, click "Create family", and you can customize the Family name and related settings . (optional) Click "Add Device" or "+", and then select “Speed 12S Security cam” or any other "Smart Camera" icons to add camera.
- Page 7 QR Code Configuration Power on and reset camera until the status indicator is flashing quickly or a prompt tone is heard, and then click "Next". Then input your WiFi's passwords and click "Next". Click " " to change network. Note: 1) Camera only supports 2.4GHz WiFi network.
- Page 8 QR Code Configuration In this interface,you should scan the QR code in your phone with the camera,when the camera comes out "dong dong dong". And you can complete the configuration about 30s.
- Page 9 QR Code Configuration When connecting,you should make sure your router,mobile,and camera are as close as possible.When camera added successffully,click " " you could also DIY the camera's name. Icons Enlarge the image full screen. Turn on receiving audio. Switch to Full HD resolution (SD is Standard Resolution). Take a snapshot (it will be saved on your smartphone).
- Page 10 In "Smart Camera" interface,click " ",you can set the camera common functions. - Waterproof grade: IP20 - Homcloud code: ME-WCS12S - Working temp: -20°C - 50°C - Model No: Speed 12S - View Angle: 105° - Power: DC 5V1A - Dimensions: 76x73x116mm - Resolution: 2Mp, 1920(H)*1080(V)
- Page 11 Functions Pan/Tilt Rotate your camera by sliding on your smartphone, providing you with 360 degrees of vision. Video flip Flip your video stream up or down for maximum flexibility. Motion detection Built-in motion sensors detect movement, and the camera will send you push notifications and app alerts.
-
Page 12: Google Assistant
Google Assistant... - Page 13 Chromecast...
-
Page 14: Amazon Alexa
Amazon Alexa... - Page 15 Directive 2014/53 / EU of the European Parliament and of the Advice. The declaration can be consulted on the website www.homcloud.com/doc. "Homcloud" is a registered trademark of Life365 Italy S.p.A. Imported by: Life365 Italy S.p.A. - European General Agency Viale Roma 49/a, 47122 Forli, Italy - Made in China...
