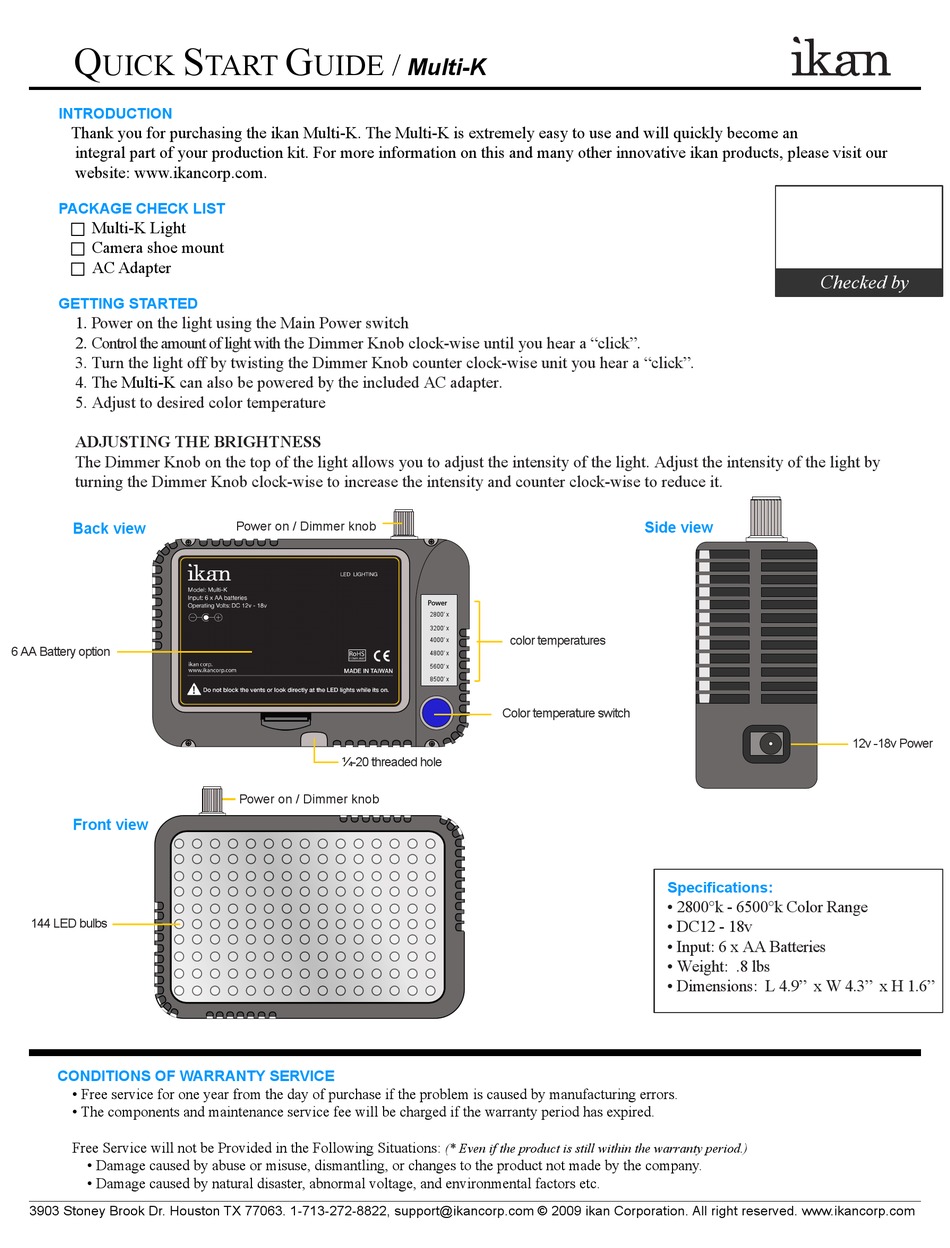

Ikan Multi-K Quick Start Manual

Q S
UICK
INTRODUCTION
Thank you for purchasing the ikan Multi-K. The Multi-K is extremely easy to use and will quickly become an
integral part of your production kit. For more information on this and many other innovative ikan products, please visit our
website: www.ikancorp.com.
PACKAGE CHECK LIST

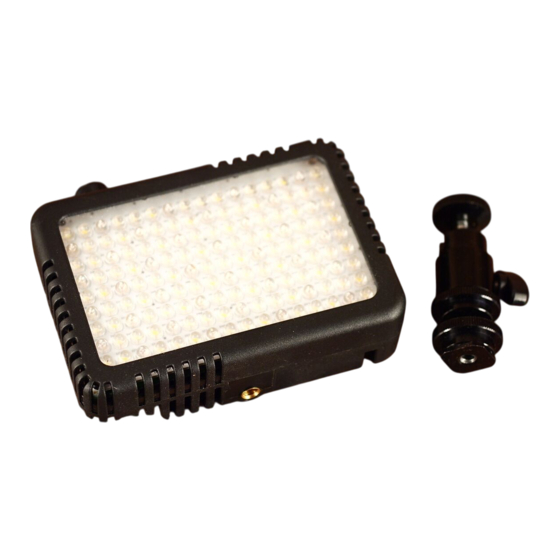

Multi-K Light

Camera shoe mount

AC Adapter

GETTING STARTED
1. Power on the light using the Main Power switch
2. Control the amount of light with the Dimmer Knob clock-wise until you hear a "click".
3. Turn the light off by twisting the Dimmer Knob counter clock-wise unit you hear a "click".
4. The Multi-K can also be powered by the included AC adapter.
5. Adjust to desired color temperature
ADJUSTING THE BRIGHTNESS
The Dimmer Knob on the top of the light allows you to adjust the intensity of the light. Adjust the intensity of the light by
turning the Dimmer Knob clock-wise to increase the intensity and counter clock-wise to reduce it.
Back view
6 AA Battery option
Front view
144 LED bulbs
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations:
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston TX 77063. 1-713-272-8822, support@ikancorp.com © 2009 ikan Corporation. All right reserved. www.ikancorp.com
G
TART UIDE /
Power on / Dimmer knob
¼-20 threaded hole
Power on / Dimmer knob
Multi-K
Power
2800' x
3200' x
color temperatures
4000' x
4800' x
5600' x
8500' x
Color temperature switch
(* Even if the product is still within the warranty period.)
Checked by
Side view
Specifications:
• 2800°k - 6500°k Color Range
• DC12 - 18v
• Input: 6 x AA Batteries
• Weight: .8 lbs
• Dimensions: L 4.9" x W 4.3" x H 1.6"
12v -18v Power
