Intermatic T10604R Operating Instructions

158TP10860 7/12/04
MODEL: T10604R
IN RAINPROOF (TYPE 3R) ENCLOSURE FOR INDOOR/OUTDOOR USE
SUITABLE FOR TWO SPEED SWIMMING POOL / SPA FILTER PUMP APPLICATIONS AND
FOR DIRECT CONNECTION OF UNDERWATER LIGHTS.
92 AMP PER LEG, 168 AMP MAX., 120/240 VOLT OR 120/208 VOLT SINGLE PHASE, (THREE WIRE) AC.
IMPORTANT:
This Control Panel must be installed according to the National Electrical Code (including Article
680) or Canadian Electrical Code (including Section 68) and Local Electrical Codes. This installation is subject to the
approval by the local inspection authority. USE COPPER CONDUCTORS ONLY. Do not exceed the maximum ratings of
individual components, wiring devices, and current carrying capacity of conductors. For grounding of the installation, refer
to Article 250 and 680 of the National Electrical Code. (For Canadian Installations: Section 10 and 68 of the Canadian
Electrical Code). Install only APPROVED wiring device(s) inside the enclosure. An APPROVED wiring device may be
installed in the rectangular side knockout provided. When panel is outdoors, an APPROVED rainproof cover must be
installed over the wiring device in the side knockout. If this enclosure is used for direct connection of underwater lights,
refer to 1999 NEC 680-21(b), 2002 NEC 680-24(b) or CEC 68-060, 062 and 066 for further details. This Control should
not be connected to any equipment which would cause bodily injury or property damage should it be activated
unexpectedly. After wiring, install front panel over wiring compartment.
NOTES:
1. Any Intermatic T100M or ET100CM series Time Switch, P1353ME
3 Circuit Control, PF1000M Series Freeze Protection or RC2000M
Series Air Switch Mechanism may be installed in the bracket provided
or in the event an existing mechanism is replaced.
2. If this control panel requires bonding, attach an APPROVED bonding
terminal of a suitable size using the mounting hole(s) provided on
the bottom of the enclosure (156T11047A may be ordered).
3. Wiring devices may be installed in this control panel
(order 21T156A (4) Standoffs for mounting).

TIME SWITCH RATINGS:

SINGLE POLE DOUBLE THROW (SPDT) - T106M
DOUBLE POLE SINGLE THROW (DPST) - T104M
30 AMP, RESISTIVE, INDUCTIVE, TUNGSTEN
OR 1000 VA PILOT DUTY-120/208/240 VAC
2 HP (24 FLA)-120 VAC 5 HP (28 FLA)-240 VAC
CLOCK MOTOR:208/277 VOLTS - 60 HZ.
(TO ORDER CLOCK MOTOR REPLACEMENT,SPECIFY PART NO.
WG--ON MOTOR COVER)

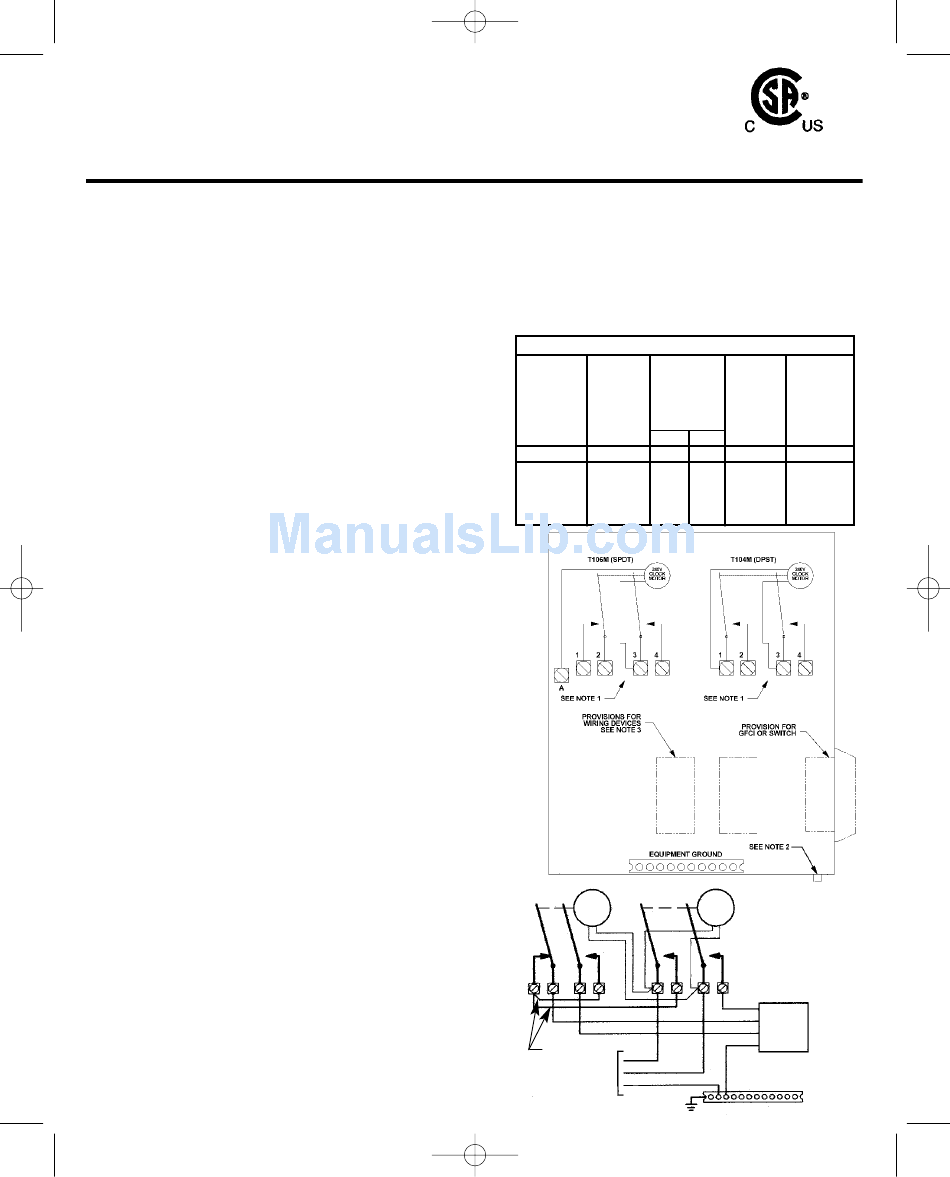

TO WIRE:

1. Remove clock motor leads from Terminals A and 3 of T106M
and connect to Terminals 1 and 3 of T104M. Connect LINE 1 to
Terminal 1 and LINE 2 to Terminal 3 of T104M.
2. Install jumpers between Terminals 1 and 4 of T106M and
between Terminal 2 of T104M and Terminal 1 of T106M.
3. Connect COMMON of Two Speed Pump to Terminal
4 of T104M, LOW to Terminal 2 of T106M and HIGH to
Terminal 3 of T106M.
If heater protection is required, install FIREMAN SWITCH On T104M
Mechanism plate - order 156T4042A Switch kit separately.

GROUND INSTALLATION.

TO SET DAILY SCHEDULE:

1. Set Time of Day on both time switches by pulling then turning
dials until the correct time of the day (AM or PM) lines up with
pointer.
2. Place ON and OFF trippers on T104M dial at times when
pump should start and stop operating.
3. Place ON trippers on T106M dial when pump should switch
from low to high and OFF trippers when pump should switch
from high to low.
Example:
6 AM - Turn ON, high speed. (Place ON tripper or T104M dial at 6 AM)
9 AM - Switch from high to low speed. (Place OFF tripper on T106M
dial at 9 AM)
3 PM - Switch from low back to high speed.
(Place ON tripper on T106M dial at 3 PM)
6 PM - Turn OFF. (Place OFF tripper on T104M dial at 6 PM)
OPERATING INSTRUCTIONS:
• To Turn ON/OFF Pump manually - move lever of T104M to
ON/OFF.
• To switch speed manually while pump is operating -
move lever of T106M to opposite position.
• For more than one daily schedule - place additional
tripper pairs on dials.
• In case of power failure - reset both dials to proper
time of day - see Step 1 above.
