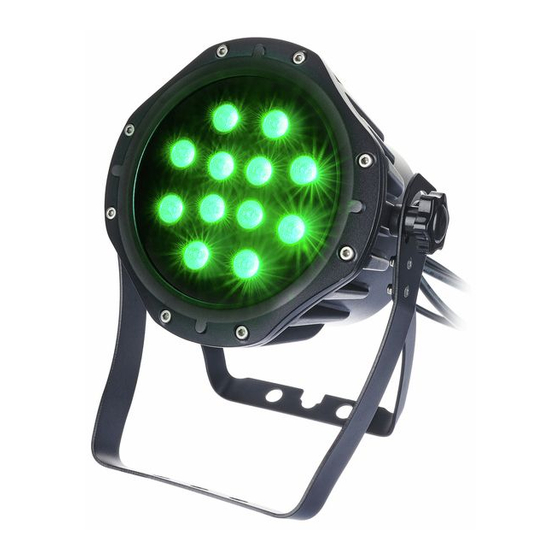

Outdoor Stage PAR 12 × 3W WLA
LED PAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE Outdoor Stage PAR 12 x 3W WLA and is the answer not in the manual?

Questions and answers

Related Manuals for thomann STAIRVILLE Outdoor Stage PAR 12 x 3W WLA

Summary of Contents for thomann STAIRVILLE Outdoor Stage PAR 12 x 3W WLA

  • Page 1 Outdoor Stage PAR 12 × 3W WLA LED PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 14.06.2022, ID: 405347 (V8)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................6 1.1 Further information........................... 7 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................10 Features............................... 13 Installation..............................15 Starting up..............................19 Connections and operating elements................... 21 Operating..............................24 7.1 Starting the device...........................
  • Page 4 Table of contents Troubleshooting............................37 Cleaning............................... 39 Protecting the environment......................40 Outdoor Stage PAR 12 × 3W WLA LED PAR...
  • Page 5 Outdoor Stage PAR 12 × 3W WLA LED PAR...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Outdoor Stage PAR 12 × 3W WLA...

  • Page 7: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 8: Symbols And Signal Words

    General information Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Outdoor Stage PAR 12 × 3W WLA LED PAR...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 11 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug.
  • Page 12 Safety instructions NOTICE! Fire hazard due to exceedance of the maximum current The device can power other devices of identical construction. The current consumption of all other devices connected in series must not exceed the values indicated in the technical specifications. Otherwise you risk injuries and irreparable damages to the device. Only connect so many identical devices that the maximum current consumption is not exceeded.

  • Page 13: Features

    Features Features Due to its sturdy and weather-proof housing made of die-cast aluminium, the Outdoor Stage PAR 12 × 3W WLA is specially designed for outdoor use. Special features of the device: 12 × WLA LEDs (each 3 W) Control via DMX (three different modes) and via buttons and display on the unit seven preprogrammed automatic shows Master / Slave operation rugged die-cast aluminium housing...
  • Page 14 Features Information about protection Equipment with protection class IP65 are dust-tight and completely protected against contact class IP65 (first code number). They are also protected against splash water from any angle (second code digit). That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors.

  • Page 15: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 16 Possible damage due to moisture Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits. Close unused connectors with end caps intended for this purpose (www.thomann.de). Outdoor Stage PAR 12 × 3W WLA LED PAR...
  • Page 17 Installation Mounting options You can install the unit in hanging or standing position. When in use, the device must always be attached to a solid surface or an approved truss. Use the openings provided on the two- piece bracket for attaching. Always work from a stable platform whenever installing, moving or servicing the unit.
  • Page 18 Installation Connecting the DMX IP65 con‐ nectors ö Proceed as follows to connect the DMX-IP65 connectors: Insert the plug completely and straight into the coupling. Make sure that the flexible sealing ring has complete contact. Turn the union nut straight onto the thread of the coupling. Hand-tighten the union nut. Outdoor Stage PAR 12 ×...

  • Page 19: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 20 Starting up Connections in ‘Master / When you configure a group of devices in ‘Master / Slave’ mode, the first unit will control the Slave‘ mode others. This feature is especially useful to start a show without much programming. Connect the DMX output of the master unit to the DMX input of the first slave unit.

  • Page 21: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Rear panel ö & Power In Power Out DMX In DMX Out Mode Setup Down Outdoor Stage PAR 12 × 3W WLA LED PAR...
  • Page 22 Connections and operating elements 1 Safety cable eyelet 2 [Power In] Mains cable for the power supply of the device 3 [Power Out] Mains cable for the power supply of max. 12 identical, serially connected devices 4 [DMX IN] DMX input cable 5 [DMX OUT] DMX output cable 6 Display...
  • Page 23 Connections and operating elements 10 [Mode] Activates the main menu and toggles between menu items. 11 Pressure compensation element 12 Locking screws for the retaining bracket 13 Retaining bracket Outdoor Stage PAR 12 × 3W WLA LED PAR...

  • Page 24: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.2 Main menu Press [Mode] to activate the main menu and select an operating mode. Use [Up] and [Down] to change the respectively displayed value.
  • Page 25 Operating Operating mode Show/Master In this mode, the device operates in stand-alone mode and can control connected devices of the same type. This setting is only relevant if the device is not controlled via DMX. Use [Mode] to open the main menu. Press [Up] or [Down] repeatedly until the display shows ‘Pr.xx’...
  • Page 26 Operating Settings programme Pr.01 For programme ‘Pr.01’ you have the choice between various static colours and colour mixtures based on the three basic colours amber, warm white and cold white. Select programme ‘Pr.01’ first, then confirm with ‘Setup’ . Now you can use the [Up] and [Down] buttons to select one of the following options: Value Description...
  • Page 27 Operating Settings programme Pr.02 … For programmes ‘Pr.02’ to ‘Pr.01’ , you can set the programme speed and the flash frequency Pr.07 for the strobe effect after selecting the desired program. First select the desired programme and confirm the selection with [Setup]. Then use [Up] or [Down] to set the programme speed in a range from ‘SP01’...
  • Page 28 Operating DMX mode This setting is only relevant when the device is controlled via DMX. Use [Mode] to open the main menu. Press [Up] or [Down] repeatedly until the display shows ‘d.xxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address).
  • Page 29 Operating Operating mode ‘Slave’ This setting is only relevant if the device is working as Slave in a Master / Slave configuration and is not controlled via DMX. In this operating mode, the device responds to the control sig‐ nals of the master device. Use [Mode] to open the main menu.

  • Page 30: Menu Overview

    Operating 7.3 Menu overview AUTO Colr d.--- SLAV Pr.01 A.000 d.001 Pr.07 A.255 d.512 SP.01 S.000 3-CH SP.FL S.255 7-CH FS.00 U.000 FS.99 U.255 FS.00 FS.99 Outdoor Stage PAR 12 × 3W WLA LED PAR...

  • Page 31: Functions In 3-Channel Dmx Mode

    Operating 7.4 Functions in 3-channel DMX mode Channel Value Function 0…255 Intensity amber (0 % to 100 %) 0…255 Intensity warm white (0 % to 100 %) 0…255 Intensity cold white (0 % to 100 %) 7.5 Functions in 5-channel DMX mode Channel Value Function...

  • Page 32: Functions In 7-Channel Dmx Mode

    Operating 7.6 Functions in 7-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) 0…255 Intensity warm white (0 % to 100 %) 0…255 Intensity cold white (0 % to 100 %) Programme selection 0…35 Dimmer (0 % to 100 %)
  • Page 33 Operating Channel Value Function 0…35 Blackout 36…71 amber 255, warm white 0, cold white 0 72…107 amber 255, warm white 255, cold white 0 108…143 amber 0, warm white 255, cold white 0 144…179 amber 255, warm white 0, cold white 255 180…215 amber 0, warm white 255, cold white 255 216…251...

  • Page 34: Technical Specifications

    Technical specifications Technical specifications Light source 12 × WLA LEDs, each 3 W (warm white, cold white, amber) Optical properties Beam angle 30 ° Control Number of DMX channels 3, 5, 7 Input connections Power supply Power cable with IP65 screw connector 246 mm DMX control DMX cable with IP65 XLR plug, 3-pin...
  • Page 35 Technical specifications Weight 3.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Outdoor housing Studio housing shape Colour mixture CW/WW/A LED type x-in-1 Base housing Fanless Remote control Not possible Wireless DMX Housing colour Black Outdoor Stage PAR 12 ×...

  • Page 36: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...
  • Page 37 Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 38 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Outdoor Stage PAR 12 × 3W WLA LED PAR...
  • Page 39 Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
  • Page 40 Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 41 Notes Outdoor Stage PAR 12 × 3W WLA LED PAR...
  • Page 42 Notes Outdoor Stage PAR 12 × 3W WLA LED PAR...
