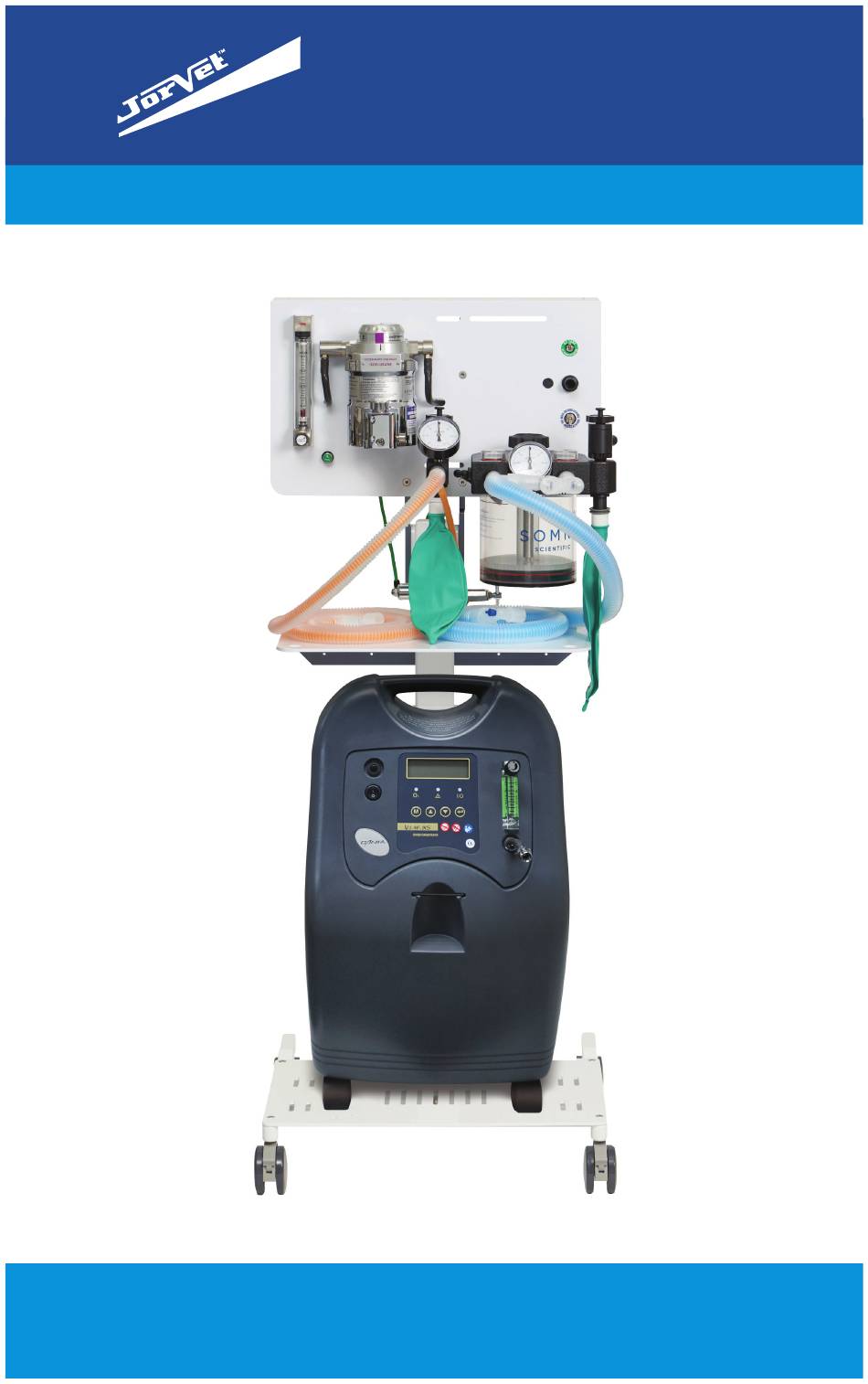

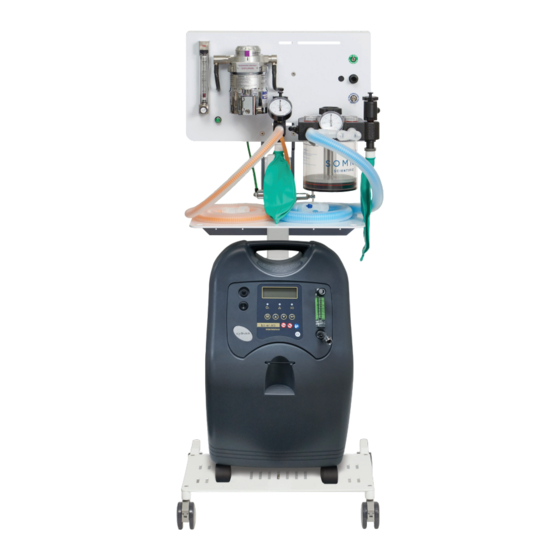

- Page 1 TOP LINE ANESTHESIA SYSTEM J0558X & J0558Z USER MANUAL The JorVet Top Line Anesthesia System pictured above shows optional accessories (J0558Y Bain Block and J0744SV Concentrator).
-
Page 2: Table Of Contents
Troubleshooting and Specifications Warranty and Service Thank you for using our JorVet J0558X and J0558Z Anesthesia System. We want you to get the most out of the machine and to have your experience in using it proceed with ease. Detailed instructions are provided along with the product’s description and features on how to correctly use it and take full... -
Page 3: Top Line Anesthesia System Models
TOP LINE ANESTHESIA SYSTEM MODELS IMPORTANT! VAPORIZER NOT INCLUDED FOR BOTH MODELS J0558X Shown with optional J0558Y Bain Block and J0744SV Concentrator J0558Z... -
Page 4: Intended Use
INTENDED USE The JorVet Top Line Anesthesia System was designed for Veterinary Use Only. It is a lightweight, durable, mobile system with 3” casters for maneuverability. The JorVet Top Line Anesthesia System includes an incorporated toggle to switch between rebreathing and nonrebreathing systems. -
Page 5: Circuit Descriptions, Warnings, And Notes
The concentrator alarm will sound if this step is not followed. NOTE When using the oxygen concentrator with the J0558X model, the oxygen flush will not operate without the E-cylinder turned on. The oxygen flush is piped to the e-cylinder only. -
Page 6: Description Of Controls/Features
DESCRIPTION OF CONTROLS/FEATURES Switch - O Tank/0 Concentrator Oxygen Flowmeter (J0558X Model Only) Flush Valve Common Gas Outlet Accessory Mounting Area Switch - Rebreathing/ Inhalation Port Non-rebreathing Exhalation Port Pop-off (APL) Valve Mounting Area for Rebreathing Bag Port E-cylinder Manifold... -
Page 7: Product Operation
Connect oxygen (carrier gas) supply source to the DISS Male fitting on the back of the flowmeter. Note: For Model J0558X see next page for Concentrator Kit installation. Turn the oxygen (carrier gas) supply on. -
Page 8: Concentrator Kit Installation
CONCENTRATOR KIT INSTALLATION – MODEL J0558X Stud Hardware Installed on Base Plate 4 – 3/8”-24 x 2” Hex Bolt 8 – 3/8” x 24 Hex Nut 12 – 3/8” SS Washer 4 – 3/8” Cushioning Washer In order as installed: Bolt, SS Washer, Base Plate, SS Washer, 2x Hex Nut, SS Washer, Cushioning Washer. -
Page 9: Attaching Circuits
ATTACHING CIRCUITS F-CIRCUIT ATTACHMENT For use with animals that weigh approximately 15 lbs. (7kg) or more. Connect the longer, single limb of the circuit to the inhalation valve. Connect the shorter, corrugated tube to the exhalation valve. Connect a rebreathing bag (appropriate to the patient size) to the port located below the pop- off valve. -
Page 10: Gas Flow Chart
GAS FLOW CHART OXYGEN (CARRIER GAS) SUPPLY Compressed Tank, in-house or Concentrator *Not needed for REGULATOR Concentrator Regulated Anesthetic Agent Oxygen and Oxygen (Carrier Gas) (Carrier Gas) Mixture Hose Common Outlet Flowmeter 0-4 LPM Vaporizer... -
Page 11: Routine Maintenance
ROUTINE MAINTENANCE Daily Testing Turn the flowmeter knob fully open and observe as the float ascends and descends freely. The float should rest completely at the bottom when knob is turned off. Inspect lines, connectors and accessories for wear prior to use. Perform a Leak Test (shown on bottom). - Page 12 TROUBLESHOOTING PROBLEM CAUSE ANALYSIS SOLUTION FLOWMETER WILL Inspect needle valve for Replace needle valve NOT TURN OFF wear. Check adjustments. or make adjustments. 1. Inspect system for leak 1. Tighten any loose 2. Inspect breathing circuit connections (vaporizer and bag for leak or loose endcaps, tubing connections.
-
Page 13: Warranty And Service
Warranty Procedure To obtain warranty service, contact Jorgensen Laboratories: 800.525.5614 info@jorvet.com Jorgensen Laboratories Inc. 1450 N. Van Buren Ave. Loveland, CO 80538... - Page 14 Professional Veterinary Equipment Supplier Jorgensen Laboratories, Inc. | Loveland, CO 80538 800.525.5614 | fax 970.663.5042 | www.jorvet.com | info@jorvet.com...
