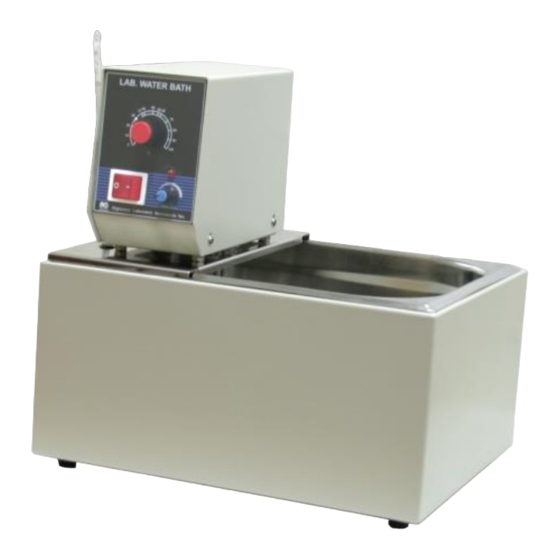

DIGISYSTEM DSB-500 Instruction Manual

INSTRUCTION MANUAL FOR DSB-500 & DSB-1000

Names of parts:

(1) Controller
(3) Thermometer
(5) Power Switch
(7) Temperature Control
(9) Fine Adjuster
1. Take "Controller" (1) out and set it into "Tank" (2) as Figure 1.
2. Pour water into "Tank" until water level covers half height of "Tank".
3. Insert "Thermometer" (3) into the " Opening for Thermometer" (4), and to be sure that the end of
"Thermometer" is under the water level. (In order to insert "Thermometer" into the "Opening for
Thermometer" easily, you can wet " Thermometer".)
4. Before connecting the power supply, please check if "Power Switch" (5) is placed at "OFF" position.
5. Place " Power Switch" at "ON" position, then switch lamp lights up and "Pump Circulator" (6) starts
running.
6. Adjust " Temperature Control" (7) to the required Temperature scale, and then " Heater Lamp" (8)
lights up. When water temperature reaches the required temperature scale, " Heater Lamp" becomes
off.
7. Check the " Thermometer" if the temperature is the same as the required temperature. If the
thermometer temperature is under the required temperature, turn " Fine Adjuster" (9) clockwise slightly;
if the thermometer temperature is over the required temperature, turn " Fine Adjuster" (9)
counterclockwise slightly. Check and adjust until the thermometer temperature is the same as the
required temperature.
Warning:
If water level is under the bottom of "Heater" (10), you must pour water into "Tank" to cover the heater.
(1)

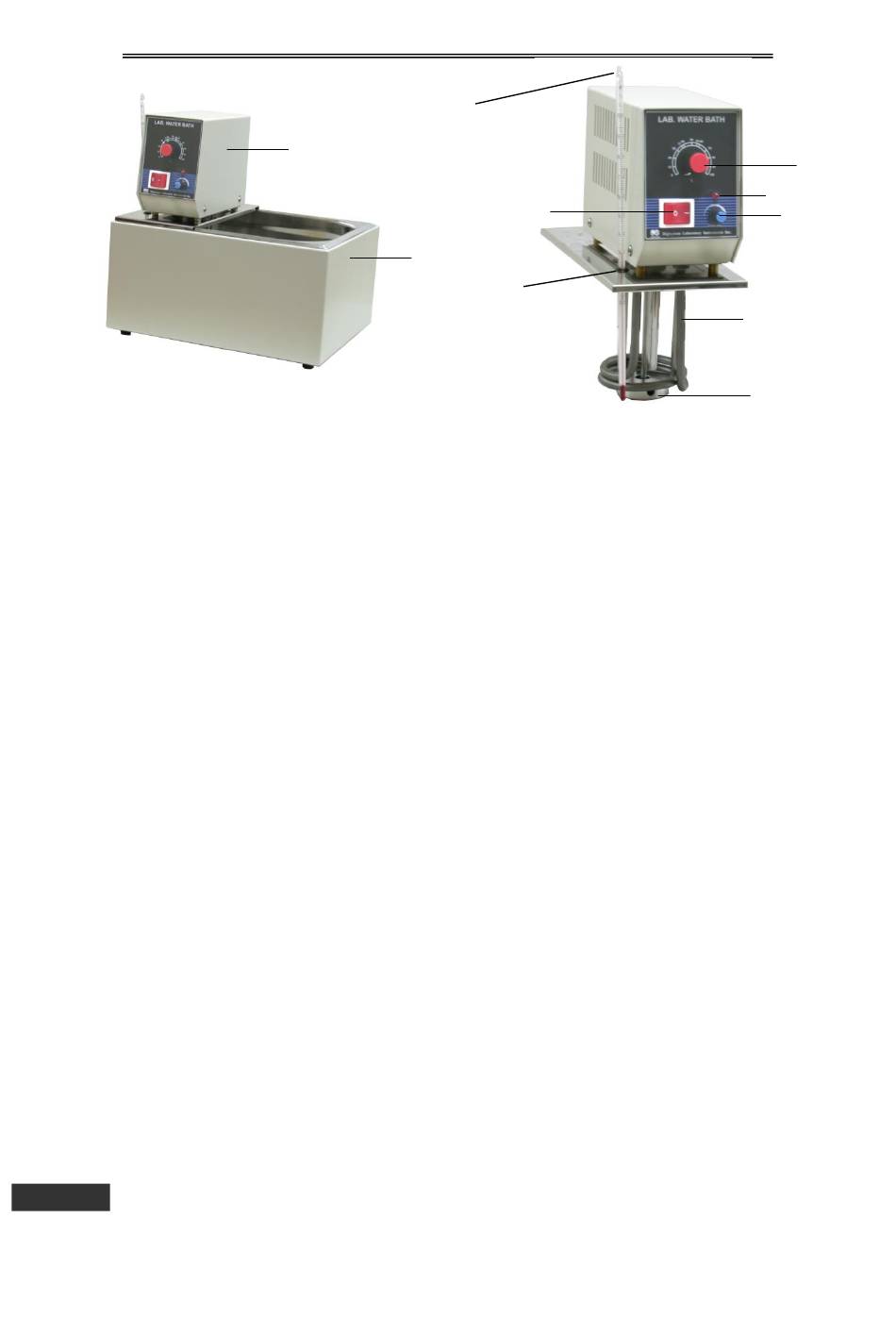

Figure 1
(3)
(5)
(2)
(4)
(2) Tank
(4) Opening for Thermometer
(6) Pump Circulator
(8) Heater Lamp
(10) Heater
(8)
(10)
(6)
Figure 2
(7)
(9)
