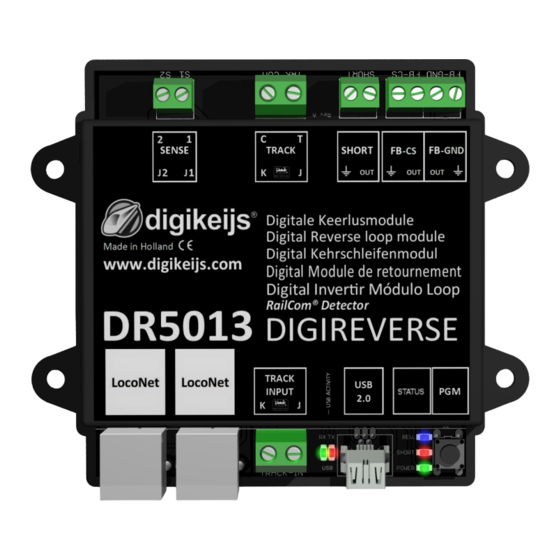

DR5013 DIGIREVERSE
Instruction manual
© Copyright 2005 – 2018 digikeijs, the Netherlands. All
rights reserved. No information, images or any part of
this document may be copied without the prior written
permission of Digikeijs.
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
Stand 2021-07-06
DR5013
DIGIREVERSE
(2021-07-06)
P 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR5013 DIGIREVERSE and is the answer not in the manual?

Questions and answers

Related Manuals for Digikeijs DR5013 DIGIREVERSE

Summary of Contents for Digikeijs DR5013 DIGIREVERSE

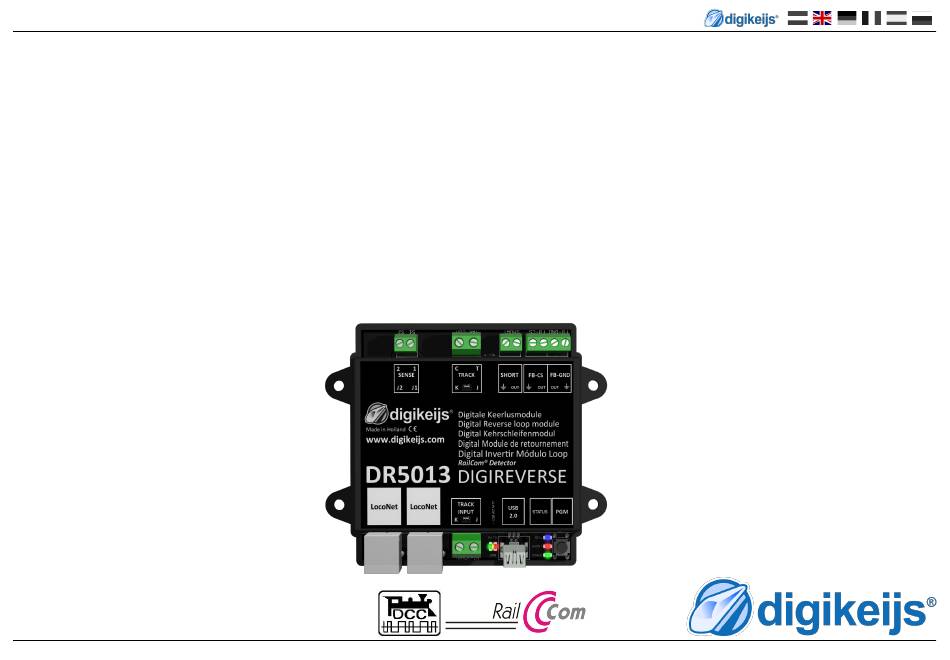

  • Page 1 Stand 2021-07-06 DR5013 DIGIREVERSE Instruction manual (2021-07-06) © Copyright 2005 – 2018 digikeijs, the Netherlands. All rights reserved. No information, images or any part of this document may be copied without the prior written permission of Digikeijs. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...

  • Page 2: General Information

    DR5013 DIGIREVERSE Stand 2021-07-06 1 General Information 1 Index General information DR5013 Connection with sensor tracks (S1,S2) with Index LocoNet Warranty and warranty conditions DR5013 Connection with sensor tracks (S1,S2) without Legal information LocoNet® External feedback connection Product overview General product information...

  • Page 3: Warranty And Warranty Conditions

    We reserve the right to change the design of the product, the software and / or the firmware without prior notice. Copyright All Digikeijs operating instructions and other written instructions supplied and/or downloadable are protected by copyright. Reproduction is not permitted without the written permission of Digikeijs.

  • Page 4: Product Overview

    DR5013 DIGIREVERSE Stand 2021-07-06 2.0 Product overview 2.1 General product information The DR5013 operates either with sensor tracks (short-circuit-free) or via "short-circuit detection" to switch over the reversing loop. The polarity of the reversing loop can also be changed via a switch command. The busy signal of the sections (T, S1, S2) can be done via LocoNet® or external output (for GND or CS feed- back).

  • Page 5: Hardware Overview

    DR5013 DIGIREVERSE Stand 2021-07-06 2.3 Hardware Overview 1 Sensor track 2 2 Sensor track 1 3 Track C (Railcom® Detector and Feedback Reverse Loop) 4 Track T (Railcom® Detector and Feedback Reverse Loop) Short Feedback 6 Short Feedback external Short circuit detected FB-CS Track "Ground"...

  • Page 6: Configuration Software

    DR5013 DIGIREVERSE Stand 2021-07-06 3.0 CONFIGURATION SOFTWARE ATTENTION!!!! NEVER connect the DR5013 to the PC via USB when the TRACK INPUT of the DR5013 is connected to the TrackOut (main track or programming track) of the central unit! This can destroy the DR5013, the central unit and/or the USB interface in the PC.

  • Page 7: Download Software

    3.2 Download Software Do not connect the DR5013 to the PC until the software has been installed. The software can be downloaded from the DIGIKEIJS website. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...

  • Page 8: Install Software

    DR5013 DIGIREVERSE Stand 2021-07-06 3.3 Install software After you have successfully downloaded the software, the installation can be started by double-clicking on the DR5013xx.exe file. Make sure that you have administrator rights on your PC. Important !!! Do not connect the DR5013 to the PC until the software and driver ha- ve been successfully installed.
  • Page 9 DR5013 DIGIREVERSE Stand 2021-07-06 The following screen appears after a few seconds. Click "Next". If you want to change the location of the software, you can do so on the next screen. However, it is recommended to leave the settings as they are and click "Next".
  • Page 10 DR5013 DIGIREVERSE Stand 2021-07-06 Now follows a short overview of the settings. Click on "Install" if you agree. Now the configuration software will be installed and Windows will ask you a few times if you trust Digikeij's software. When all this is complete, the last screen appears. Press "Finish" and the drivers and configuration program are installed.
  • Page 11 DR5013 DIGIREVERSE Stand 2021-07-06 3.4 Connecting the DR5013 to the PC via USB With the desktop symbol the software can be started. Do not start the software until the following steps have been performed! First connect the PC with the supplied USB cable and then with the DR5013.
  • Page 12 DR5013 DIGIREVERSE Stand 2021-07-06 4.0 Programming All pictures shown here usually show the factory settings of the DR5013. However, some pictures show more information than is available in the factory settings, which has the reason to clarify which options and settings are available in the DR5013.
  • Page 13 DR5013 DIGIREVERSE Stand 2021-07-06 4.1 Overview Configuration Software The various options can be easily accessed by clicking on the respective connections. 1 Properties of sensor tracks 2 Features Global Detector 3 USB Features / Firmware Upgrade 4 Exit software 5 DR5013 Serial number 6 Module Properties 7 LocoNet®...
  • Page 14 DR5013 DIGIREVERSE Stand 2021-07-06 4.2 USB 2.0 Features The selected DR5013 has been connected via USB and the serial number is read. COM port number for the Dr.Command protocol. Update the firmware of the DR5013. Reset to factory settings. Cancel www.digikeijs.com...

  • Page 15: Restoring The Factory Settings

    DR5013 DIGIREVERSE Stand 2021-07-06 4.3 Restoring the factory settings It is possible to reset the DR5013 settings to the factory defaults. The USB menu in the configuration software allows you to activate the reset, which resets the DR5013 settings to factory defaults.
  • Page 16 DR5013 DIGIREVERSE Stand 2021-07-06 4.4 Updating the Soft- and Firmware The development of the DR5013 software continues and is constantly being improved. With firmware updates, you can equip the DR5013 with the latest soft- ware. The new firmware is integrated in a new configuration software. Before a firmware update is performed, it is recommended to save the current settings using the "Import/Export Settings"...

  • Page 17: Firmware Versions

    DR5013 DIGIREVERSE Stand 2021-07-06 4.5 Firmware Versions Version date Beschreibung 1.0.0 01.11.2018 First beta version for beta testers 1.0.0 10.10.2018 First instructions 1.0.0 11.11.2018 Connection examples www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
  • Page 18 DR5013 DIGIREVERSE Stand 2021-07-06 4.5 LocoNet® Features LocoNet® Feedback Monitor. The different colors indicate the different feedback busses. Slow Module Timing This option can be activated if there are problems with Loconet. RailCom Report. Here you select which LocoNet commands are used to send the RailCom message.

  • Page 19: Module Properties

    DR5013 DIGIREVERSE Stand 2021-07-06 4.6.0 Module properties Display Logging Window. Module Setting Export/Import Select language. Accept current settings Module address in LocoNet®. Cancel Waiting time after the central unit has transmitted power on before the track Railcom® Use channel 2 for additional address recognition.
  • Page 20 DR5013 DIGIREVERSE Stand 2021-07-06 4.6.1 Module Properties All QoS messages below this value are not reported to the central Digitrax® specification for reporting 'short' locomotive addresses. unit. Standard: Report 0x7D in high quality byte. A "Delta" value can be set here so that too many messages are not Alternative: Report 0x00 in high quality byte.
  • Page 21 DR5013 DIGIREVERSE Stand 2021-07-06 4.7 Scripting DR. Script DR Script is a BASIC / Assembler similar, text based programming language. With Dr. Script you have the possibility to control even complex processes with the help of a product of the DR50xx series. Further information about Dr. Script can be found in the separate documentation.
  • Page 22 DR5013 DIGIREVERSE Stand 2021-07-06 4.8 Properties of sensor tracks The properties of the sensor tracks and the feedback number are assigned to the reversing loop here. turnout address Entrance turnout of the reversing loop Switch-off delay Feedback in ms. Feedback number Sensor track (S3)
  • Page 23 DR5013 DIGIREVERSE Stand 2021-07-06 4.9 Features Global Detector Here the properties of the Global Detector are assigned to the reversing loop. The Global Detector comprises the sections S1, S2 and T of the reversal loop. Detector input on the module. (If a check mark is removed here, the corresponding detector is deactivated).

  • Page 24: Connection Examples

    DR5013 DIGIREVERSE Stand 2021-07-06 5.0 Connection examples In the 2-wire system, different polarities of the tracks meet at the turnout of the reversing loop. If a vehicle now bridges the separation points at the en- trance or exit, a short circuit occurs. The ultimate DR5013 reversing loop module can be used to eliminate this problem. The connection examples shown here give an overview of how the DR5013 can be wired in different situations and which settings are necessary in the configuration software.
  • Page 25 DR5013 DIGIREVERSE Stand 2021-07-06 5.1 Connection DR5013 Short-circuit detection This connection example shows the use of the DR5013 with short-circuit detection. The entry/exit switch must be switched manually or with a control program. Functionality: As soon as the locomotive reaches the separation point on both sides, the DR5013 detects this and switches the polarity of the reversing loop so that it cor- responds to the entrance.
  • Page 26 DR5013 DIGIREVERSE Stand 2021-07-06 5.2 DR5013 short circuit detection and LocoNet® connection® This connection example shows the use of the DR5013 with short-circuit detection. The entry/exit turnout must be switched manually or with a control program. Via Lo- coNet® various information (Railcom® information, short-circuit message, etc.) is transmitted to the control centre and can be evaluated accordingly.
  • Page 27 DR5013 DIGIREVERSE Stand 2021-07-06 5.3 Connection DR5013 with sensor tracks (S0,S1,S2,S3) and LocoNet® This connection example shows the use of the DR5013 in conjunction with sensor tracks (S0,S1,S2,S3). With this connection, the DR5013 automatically reverses the polarity (short- circuit-free) and may be able to switch the entry/exit switch automatically on exit. LocoNet® transmits various information (Railcom® information, feedback, short-circuit message, etc.) to the control centre and can be evaluated accordingly.
  • Page 28 DR5013 DIGIREVERSE Stand 2021-07-06 5.4 DR5013 connection with sensor tracks (S1,S2) and LocoNet This connection example shows the use of the DR5013 in conjunction with sensor tracks (S1,S2). With this connection, the DR5013 automatically reverses the polarity (short-circuit -free) and may be able to switch the entry/exit switch automatically on exit. Via LocoNet® various information (Railcom® information, feedback, short-circuit message, switch setting commands, etc.) is transmitted to the central unit and can be evaluated accordingly.
  • Page 29 DR5013 DIGIREVERSE Stand 2021-07-06 5.5 DR5013 connection with sensor tracks (S1,S2) without LocoNet® This connection example shows the use of the DR5013 in conjunction with sensor tracks (S1,S2). The occupied signal of the KS is transmitted via an external feedback unit, in this case a DR4088CS.
  • Page 30 DR5013 DIGIREVERSE Stand 2021-07-06 5.6 DR5013 external feedback connection The DR5013 has three external feedback outputs. With these feedback outputs, the busy signal of the reversing loop (FB current sensor, GND signal to ground) and a short circuit signal of the reversing loop can be reported to an external feedback.
  • Page 31 Note: A connection via USB to the DR5000 or any other digikeijs device connected via USB must be disconnected first. If this note is observed, the test can be carried out without any problems even with active track voltage.
  • Page 32 DR5013 DIGIREVERSE Stand 2021-07-06 6.1 Commissioning instructions DR5013 with sensor tracks S0,S1,S2,S3 (without connection to PC) To check the connection of the DR5013 without a USB connection to the PC, use this procedure. This can be used to test if the wiring is correct and there is no error.
