INSTRUCTION MANUAL
For MODELS R08A Twin & RO8B Compact
Version 2, March 2008

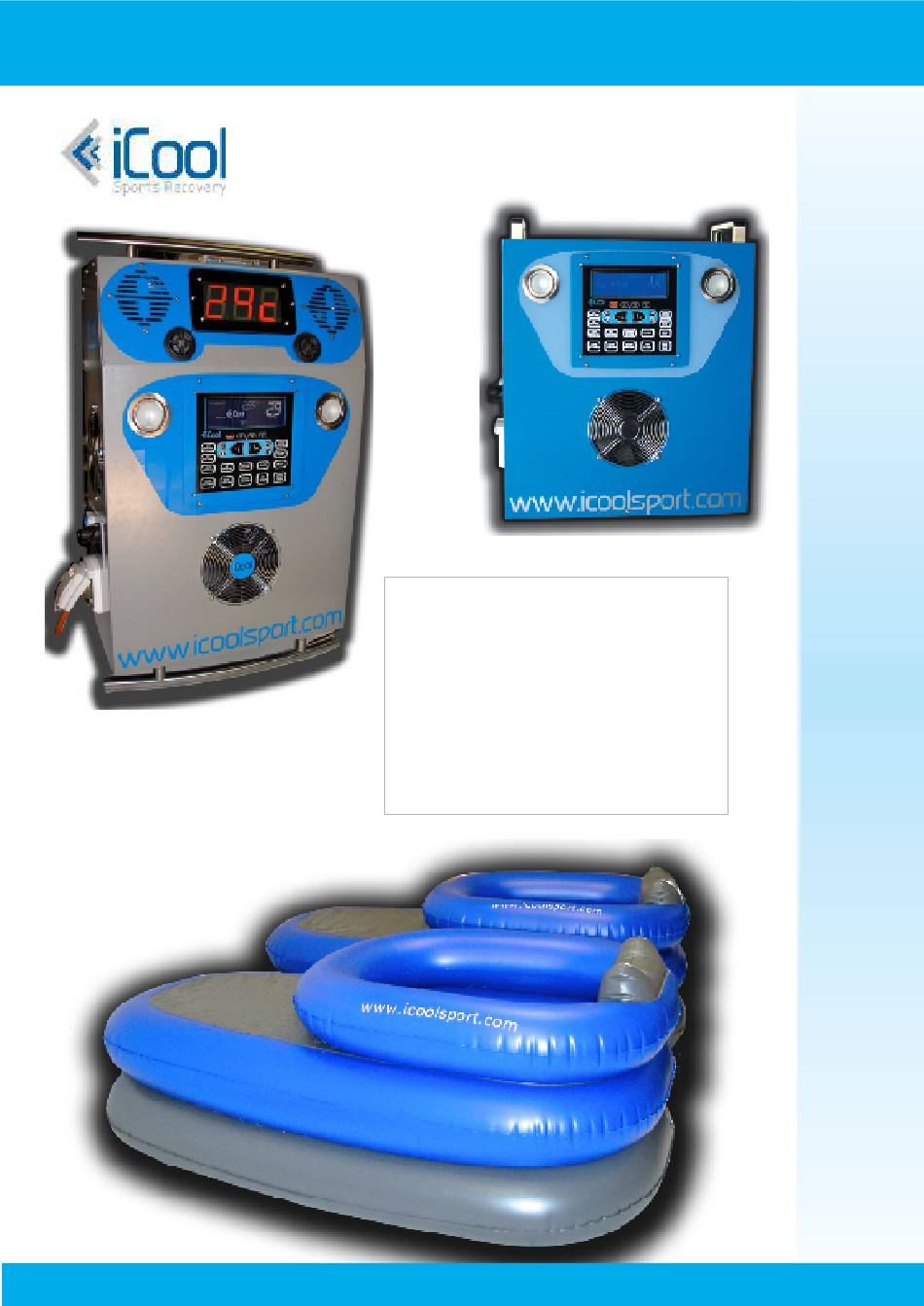

Page 1
THIS MANUAL COVERS THE iCOOL PRODUCTS SHOWN ON THIS PAGE
Model R08B Compact
Getting To Know Your iCOOL
Setting Up the Portable Pools
Setting Different Temperatures
Clock & Auto Turn Off Function
Using The Count Down Timer
Locking The Controls
Using The LIGHTS
Model R08A Twin
Emergency STOP
Using The SOUND System
Trouble Shooting
Ice Baths
WWW.ICOOLSPORT.COM
Advertisement
Related Manuals for iCool R08A Twin
Summary of Contents for iCool R08A Twin
- Page 1 INSTRUCTION MANUAL For MODELS R08A Twin & RO8B Compact Version 2, March 2008 Page 1 THIS MANUAL COVERS THE iCOOL PRODUCTS SHOWN ON THIS PAGE Model R08B Compact Getting To Know Your iCOOL Setting Up the Portable Pools Setting Different Temperatures Clock &...
- Page 2 The Larger MODEL R08A Twin, has a much more powerful 3400 Watt chilling system and is powerful enough to cool 2 iCool pools at the same time in most weather conditions or the new iCool 2 , 3 and 4 person mobile baths.
- Page 3 Do not over inflate. 2. If using one of the larger iCool pools, please follow the separate set up instructions that came with that pool. You can also use standard baths and spa pools providing they have a water outlet at he bottom, that is lower than the ‘WATER IN”...
- Page 4 Version 2, March 2008 7. If using the iCool standard recommended pool, fill it with water to the level shown in (F). This is about 350 liters (92 US gallons) and is the optimum level for both recovery and pre cooling work.
- Page 5 Amp type that is in increasing use in many countries because of the inherent safety of the design. The cable supplied with your iCool is normally fitted with the correct plug for your country. You can use a normal travel plug adaptor if you are using your system in another country providing the voltage in that country is the same and the adapter has an earth pin.
- Page 6 In the unlikely event that your safety device fails this simple test, they are readily available as a spare part in most countries and should be replaced. Please call iCool for advice. 12. Providing the safety device test correctly and cut power instantly when the button was pressed, it is now safe to switch the system back on and operate normally.
-
Page 7: Operating The System
Version 2, March 2008 OPERATING THE SYSTEM Your iCool System is controlled by a TOUCH SCREEN which responds to a soft touch, not pressure. There are no moving parts. DO NOT PRESS THE BUTTONS, YOU ONLY NEED TO TOUCH THEM LIGHTLY To accurately record your inputs and avoid entry errors please be aware that there is a slight delay of about 1 second after each touch is received by the system before the next input can be made. - Page 8 INSTRUCTION MANUAL Page 8 For MODELS R08A Twin & RO8B Compact Version 2, March 2008 DETAILED OPERATING INSTRUCTIONS SET TEMPERATURE A.M. SET TEMPERATURE TRACK P.M. ALARM TIMER PRESET PRECOOL TIME HIGH HEAT WATER PUMP PUMP FREEZER SINGLE ZONE REFRIGERATOR POOL 2...
- Page 9 The left hand of the LCD display will indicate the actual water temperature (if it is below 20ºC) and if you have the iCool Twin system the very large red LED display will also display the actual pool temperature (even above 20ºC) every few seconds. It alternates between the countdown timer dis-...
- Page 10 A red light will appear on the large LED display on the iCool Twin system or a plus + sign will appear on the LCD display on the iCool Compact to indi- cate that the repaet function is set. The count down will now repeat continuously.
-
Page 11: Using The Clock
5. USING THE AUTO OF FUNCTION Your iCool turn itself off and stop cooling or heating after a pre set time. To set how many hours after the current time you want the system to shut down touch the the... - Page 12 9. USING THE SOUND SYSTEM Your iCool TWIN has a very high quality sound system built into the cabinet. It can be used to play music from any iPod or MP3 player for relaxation or meditation while undergoing ice bath treatments, or to play instructions to athletes, or as a public address system.
-
Page 13: Troubleshooting
Is a water pipe bent or crushed or restricted in any way? If you are using an iCool inflatable pool for the first time check that the shipping plugs have been removed from the inlet and outlet fitting at both the top and bottom of the pool. -
Page 14: Specifications
The refrigeration compressor has it’s own overload safety circuit and if it can not get sufficient current to start, after about 30 seconds it will shut down and re try a few minutes later. This has no effect on all the other iCool systems and they can still continue to operate normally as they need far less current.
