FTT699

FTT700

FTT700-USB

WARNING

Please Recycle

Tech Tub - 6 Device Setup

Assembly Guide

FTT699, FTT700,

FTT700-USB, _2021_A

Check out our other products online at

www.copernicused.com

FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.

For assistance, please contact us:

1-800-267-8494

Email info@copernicused.com

Have your packing slip ready for reference

Need help?

Do you have a question about the Tech Tub2 FTT699 and is the answer not in the manual?

Questions and answers

Summary of Contents for Copernicus Tech Tub2 FTT699

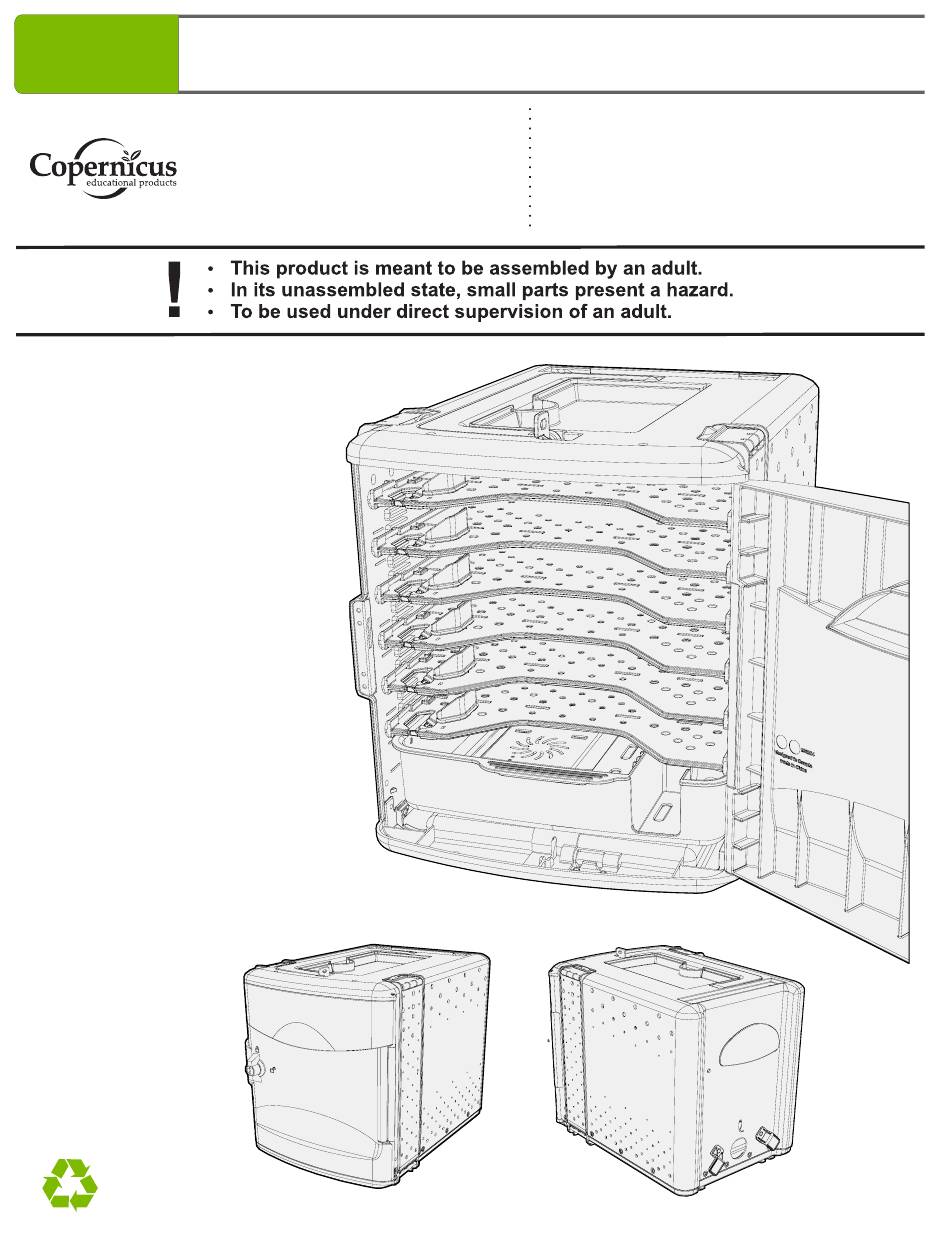

Page 1 FTT699, FTT700, 1-800-267-8494 FTT700-USB, _2021_A Check out our other products online at Email info@copernicused.com www.copernicused.com Have your packing slip ready for reference WARNING Please Recycle FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 2 Please visit www.copernicused.com/warranty and complete the form within 10 business days from product All Components Warranty assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email info@copernicused.com to start your warranty claim.
Page 3 Do not install or use the electrical components of this unit during a lightning storm. Electrical Shock Do not climb on, hang from or suspend objects from any components of your product unless otherwise specified. Climb Hazard FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 4 1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com Email our Tech Support Service Check out some of our other great products! www.copernicused.com FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 5 M5 Square Nut M5 Screw In FTT700 Not to Scale ® 6 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 6 Adapter extension M5 Screw cables In FTT699 Not to Scale ® 6 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 7 Hook & Loop Straps M5 Screw In FTT700-C Not to Scale ® 6 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 8 ® If you have not purchased the Tech Tub Trolley, please proceed to the next page to continue ® setting up your Tech Tub . FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 9 Actual Size: You will need: (Not to Scale) Shelf M5 Square Nut Install nuts into one shelf Ensure nut is inserted fully into slot in shelf FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 10 Install two shelves below middle shelf, leaving two empty slots between each shelf Install remaining three shelves above middle shelf, leaving two empty slots between each shelf FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 11 ONLY FTT700 ONLY Install Power Strip Mounting Bracket onto Power Tray Insert side with two pegs into keyholes Slide back till you hear a CLICK! FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 12 Route power cable around hook and out through back of Power Tray HOOK Fit 4 keyholes on Power Strip over 4 Slide Power Strip back to secure it pegs on Power Strip Mounting Plate FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 13 USE IT TO MEASURE OUT YOUR CABLES Secure cables around adapter using provided hook and loop straps Repeat above steps for all remaining power adapters FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 14 Wall Plug Power Adapter If your power adapter is too (including USB Power Adapters) wide to fit on the power strip please proceed to STEP 9. FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 15 Plug remaining power adapters into power strip Run cables to front of tray, leaving excess cable hanging out Power Brick Adapter Wall Plug Power Adapter (including USB Power Adapters) FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 16 Copernicus Customer Service: 1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 17 Place USB Hub and Power Adapter into Power Tray Route power cable around hook and out through back of Power Tray HOOK Connect USB Hub to power adapter FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 18 FTT700-C ONLY Plug in USB cables Plug USB cables into USB Hub Run USB cables to front of tray, leaving excess cable hanging out FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 19 Position Power Tray for Cable Management Feed Power Strip power cable through hole in back of tub Partially slide Tray back into tub (leave a gap as shown below) FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 20 The process is the same for USB cables Push cable through first green clip Push cable through second green clip Tuck excess cable into front area of power tray FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 21 The process is the same for USB cables Push cable through first green clip Push cable to back of opening Tuck excess cable into front area of power tray FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 22 Repeat Step 13A and 13B until all remaining cables are clipped into shelves (as shown) FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 23 Slide Tray all the way into the Tub When pushing the tray in, pull the cable to keep it out of the way of the tray FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 24 To remove, push on the top edge and rotate up out of holes in shelf. If you wish to discard Device Positioning Rails please recycle them. Push devices in completely to ensure cables don't interfere with door FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 25 Plug device power cable into each device Once step 17 is complete plug power strip or usb hub power cable into wall outlet FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 26 Turn on power strip via access hole on front of tray Slide Power Tray out and slide USB Hub power switch into on position FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 27 2® Wrap Power Strip power cable around cable hooks when moving Tech Tub FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 28 Open the front door of upper tub and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
Page 29 Open the front door and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT699, FTT700, FTT700-USB - Version A- Released July 16, 2021 - Copernicus Educational Products Inc.
