Summary of Contents for Milestone pro MP-HD-44-H2

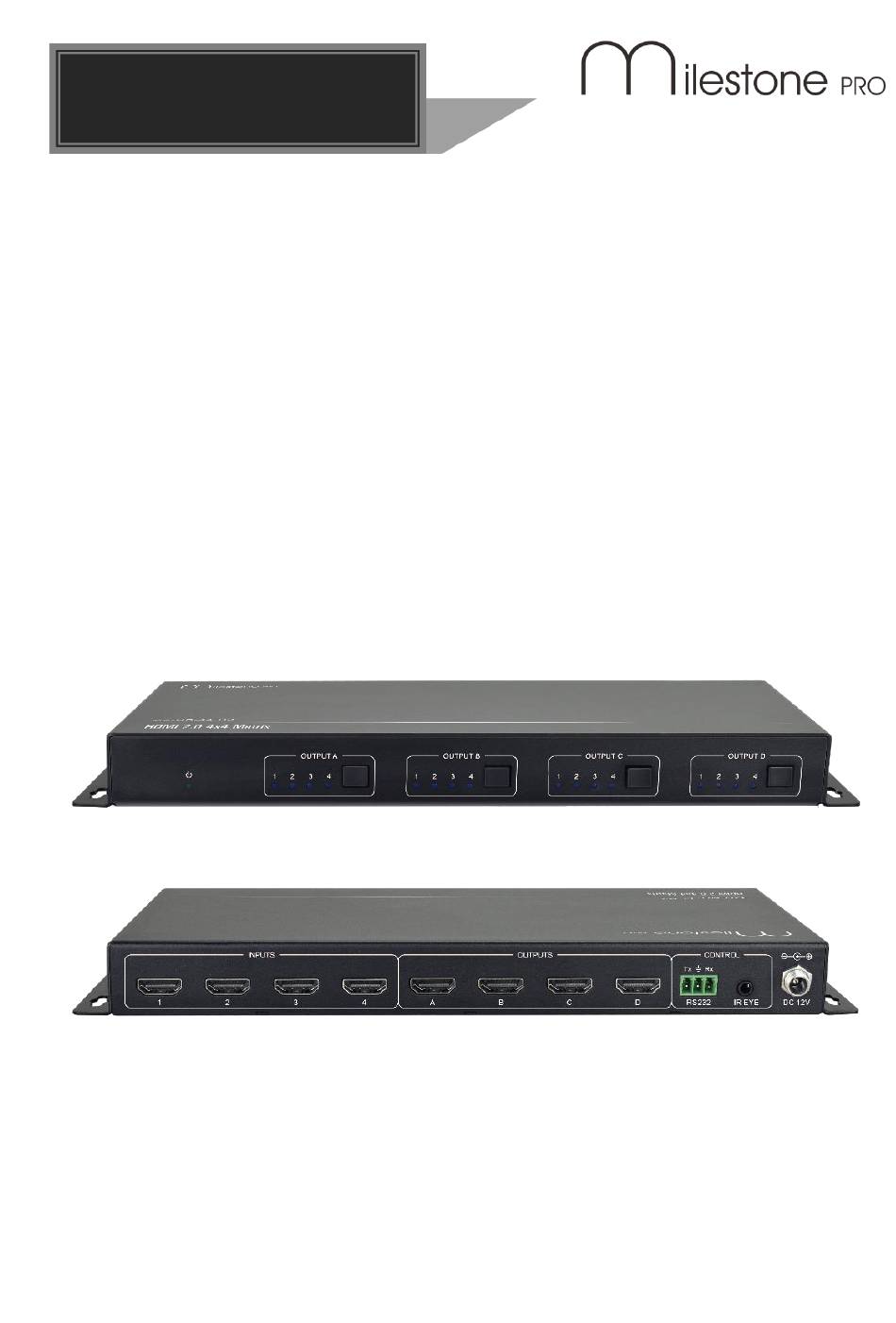

- Page 1 User Manual MP-HD-44-H2 HDMI V2.0 4x4 Matrix Switcher with 4K to 1080p Down-scaling All Rights Reserved Version: MP-HD-44-H2_2020V1.0...
-
Page 2: Table Of Contents
HDMI V2.0 4x4 Matrix Switcher CONTENTS Introduction ............................... 1 Features ................................1 Package List ................................ 1 Panel Description ............................. 1 Front Panel ..............................1 Rear Panel ..............................2 System Diagram ..............................2 IR Remote Control ............................3 RS232 Control ..............................4 System Command .......................... -
Page 3: Introduction
Package List Please make sure all the items listed below are in the package. If anything is missing or damaged, please contact your distributor for a replacement. 1x MP-HD-44-H2 4x Round Plastic Feet 1x RS232 Cable (3-pin to DB9) ... -
Page 4: Rear Panel
HDMI V2.0 4x4 Matrix Switcher A: Total four output zones, and each zone is including four blue indicators for four input sources, numbered from "1" to "4". One of LED illuminates green to indicate which source is selected for the output channel. B: Total four output buttons. -
Page 5: Ir Remote Control
HDMI V2.0 4x4 Matrix Switcher IR Remote Control Press the STANDBY (1) button to enter or exit Standby mode. To switch the selected input for one or more of the outputs, first press the number corresponding to the desired INPUT (2), then press one or more OUTPUTS (3) or the ALL (5) button, then press the ENTER (4) button to execute the change. -
Page 6: Rs232 Control
Data bit: 8 Stop bit: 1 Parity bit: none System Command Command Example and Command Description Response /*Type; Report system model. MP-HD-44-H2 /%Lock; Lock front panel buttons. System Locked! /%Unlock; Unlock front panel buttons. System UnLock! /^Version; Report software version. V1.0.0 Cancel the current operation and return to Undo. -
Page 7: Signal Switching
HDMI V2.0 4x4 Matrix Switcher Command Example and Command Description Response SetSystemReboot. System reboot. SetSystemReboot. Signal Switching Command Example and Command Description Response 4All. [x]All. Switch input [x] AV to all outputs. [x]=1~4. 04 To All. Switch all input signal to the corresponding All#. -
Page 8: Preset Setting
HDMI V2.0 4x4 Matrix Switcher Preset Setting Command Example and Command Description Response Save3. Store the current switching status to present [y]. Save[y]. [y]=0~9. Save To F3 Recall9. Recall[y]. Recall present [y]. [y]=0~9. Recall From F9 Clear9. Clear[y]. Clear the present [y]. [y]=0~9. Clear F9 Audio Setting Command Example and... -
Page 9: Hdcp Compliance
HDMI V2.0 4x4 Matrix Switcher Command Example and Command Description Response [x]=8: 3840x2160@30Hz Deep Color Stereo Audio [x]=9: 3840x2160@60Hz 4:2:0 Deep Color Stereo Audio [x]=10: 3840x2160@60Hz Deep Color Stereo Audio (Default) [x]=11: 3840x2160@60Hz Deep Color High Definition Audio [x]=12: 3840x2160@60Hz Deep Color HDR LPCM 6CH [x]=13: User-defined EDID [y]=1: HDMI input 1... -
Page 10: Video Resolution Down-Scaling
HDMI V2.0 4x4 Matrix Switcher Video Resolution Down-scaling The matrix supports video resolution downscaling, the 4K (4096x2160/3840x2160) input can be automatically degraded to 1080p output for compatibility with 1080p display, shown in the below chart. Input Output Resolution Refresh Color Space Downscale 1080p Specs 60Hz... -
Page 11: Specifications
HDMI V2.0 4x4 Matrix Switcher Specification Video Input Input (4) HDMI Input Connector (4) female type A HDMI HDMI Version HDCP Version Video Output Output (4) HDMI Output Connector (4) female type A HDMI HDMI Version HDCP Version Control Control Port (1) RS232, (1) IR EYE Control Connector (1) 3-pin terminal block, (1) 3.5mm jack...
