Quick Links
Fountain Components
Item Description
Falling Water I
Fountain - Base
Falling Water I
Fountain - Basin
Falling Water 4
Fountain -
Water Feature
Falling Water 4
Fountain -
Spill Stop
Falling Water 4
Fountain -
Pump House
Falling Water 4
Fountain -
House Door

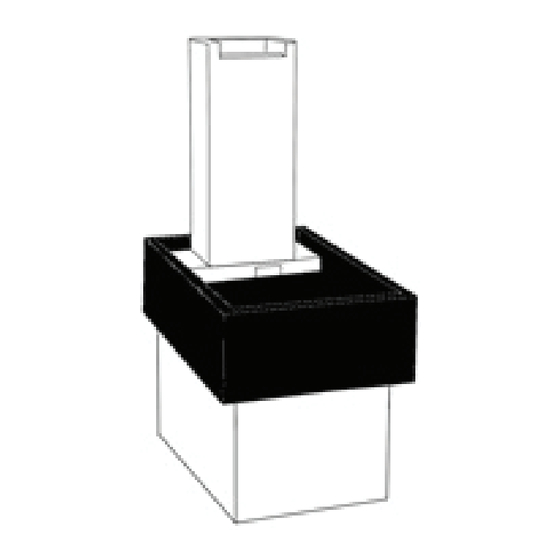

FT-287 Falling Water III Fountain
Fountain Information:
• Two people are recommended for the installation of this fountain!
• This fountain holds approximately 20 gallons of water.
• This fountain uses a large fountain cover: FTNCOV-LG
• Compatible with Refill Device and LED Kits.
• A special stopper is not required to use the refill kit for this fountain.
Pump Information:
OEMPF320 - 320 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-286E
1
FT-286F
1
FT-287A
1
FT-287B
1
FT-287C
1
FT-287D
1
SHOP NOW
Assembly Instructions
SHOP NOW
Pump Kit Parts List
Component
PK300 Pump
(use adapter indicated)
12" length of 1/2" non-kink hose
2" length of 5/8" clear vinyl tubing
2" piece of 1/2" CPVC pipe
2.8 oz tube of silicone
Copper Spiller
Wedges
Hose Clamp
Proudly
MADE IN USA
Quantity
1
1
1
1
1
1
3
1
rev 3/30/2020
Advertisement
Related Manuals for Campania International Falling Water III FT-286E
Summary of Contents for Campania International Falling Water III FT-286E
- Page 1 FT-287 Falling Water III Fountain Assembly Instructions Fountain Information: • Two people are recommended for the installation of this fountain! • This fountain holds approximately 20 gallons of water. • This fountain uses a large fountain cover: FTNCOV-LG • Compatible with Refill Device and LED Kits. •...
- Page 2 FT-287 Falling Water III Fountain Assembly Instructions Two people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-287 Falling Water III Fountain Assembly Instructions Step 7 - Place the water feature (FT-287A) on top of the pump cover and ensure that the pump cord exits through the hole provided. Step 8 - Insert the 2" CPVC end of the tubing assembly into the coupling protruding from the bot- tom of the water feature (FT-287A).
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
