Fountain Components
Item Description
Rochefort
Fountain Cap
Rochefort
Fountain Disc
Rochefort
Fountain Spiller
Water Feature
Rochefort
Fountain Pump
Cover
Rochefort
Fountain Pump
Cover Door
Rochefort
Fountain Bowl/
Basin
Fountain Information:
• This fountain holds approximately 5 gallons of water.
• This fountain uses a small fountain cover: FTNCOV-SM
• Compatible with #10 Refill Device
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPF320 - 320 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-254A
1
FT-254B
1
FT-254C
1
FT-254D
1
FT-254E
1
FT-254F
1

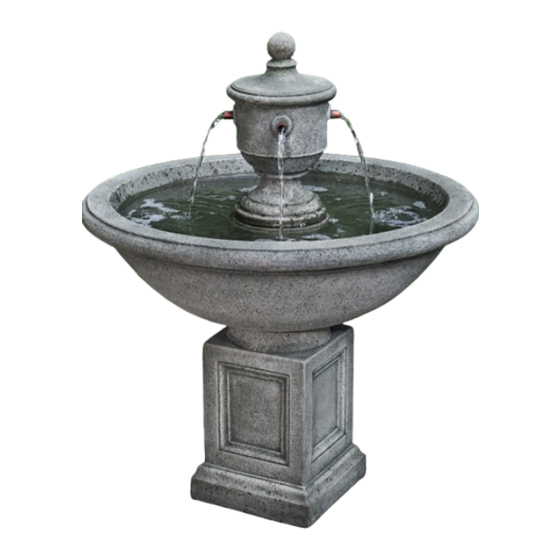

FT-254 Rochefort Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK300 Pump
(use adapter indicated)
#10 Stopper
8" length of 1/2" black non-kink tubing
1-1/2" length of 5/8" clear tubing
1-1/2" length of 1/2" CPVC pipe
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
1
1
rev 3/30/2020
Advertisement
Related Manuals for Campania International Rochefort FT-254
Summary of Contents for Campania International Rochefort FT-254
- Page 1 FT-254 Rochefort Fountain Assembly Instructions Fountain Information: • This fountain holds approximately 5 gallons of water. • This fountain uses a small fountain cover: FTNCOV-SM • Compatible with #10 Refill Device • A special stopper is required to use the refill kit for this fountain Pump Information: OEMPF320 - 320 GPH Pump (16 ft.
- Page 2 FT-254 Rochefort Fountain Assembly Instructions Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin. Step 1 - Seek Professional Help: Check if professional installation is recommended for your fountain.
- Page 3 FT-254 Rochefort Fountain Assembly Instructions Step 8 - Place the water control cap (FT-254B) into the water feature (FT-254C). FT-254B (2 lbs) 4.5"W x 1.5"H Step 9 - Place the fountain cap (FT-254A) on top of the water feature (FT-254C). FT-254A (5 lbs) 8"W x 4.75"H Step 10 - Fit the pump house door (FT-254E) into the pump house (FT-254D).
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
