SUNLUNE JASMINER X4 Instruction Manual

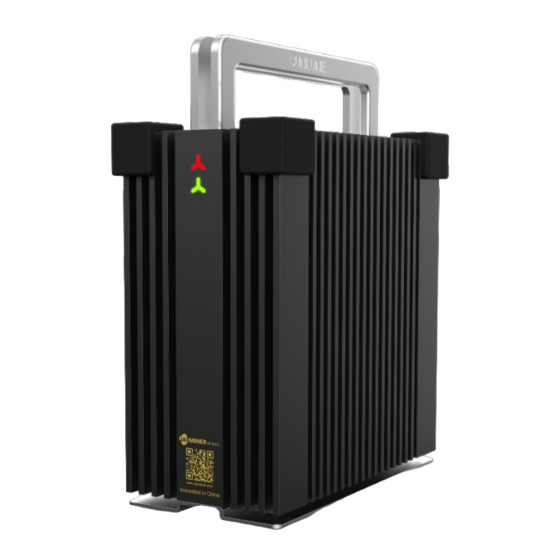

High-throughput mini server
Hide thumbs Also See for JASMINER X4:

Advertisement

Quick Links

Download this manual
JASMINER X4
High-throughput Mini Server
Instruction Manual

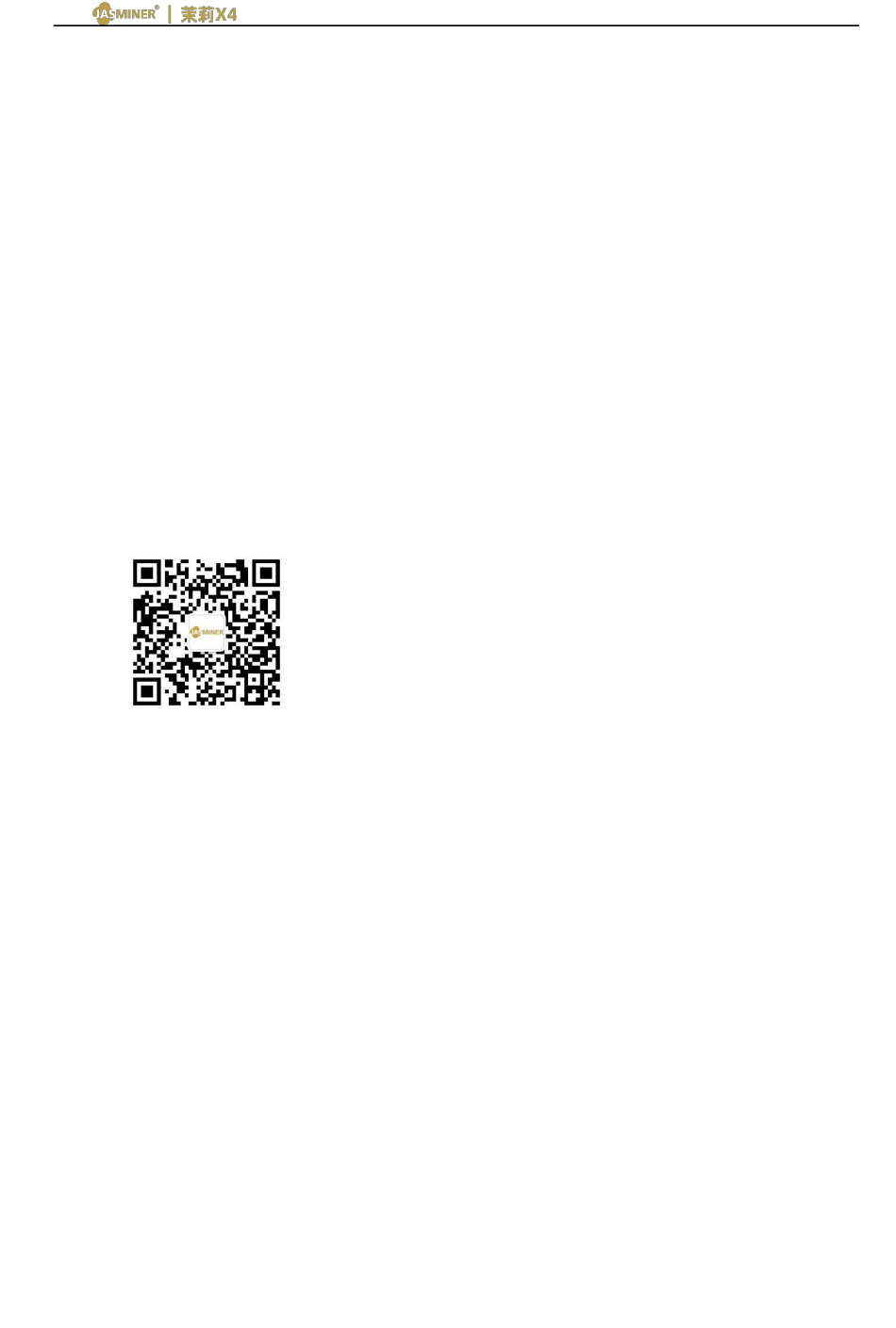

Tip: Follow the official account of SUNLUNE , then reply "course" to get the use
demonstration video of the device.
SUNLUNE Technology (Nantong) Co., Ltd.
November 2021
JASMINER X4 High-throughput Mini Server Instruction
Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JASMINER X4 and is the answer not in the manual?

Questions and answers

Related Manuals for SUNLUNE JASMINER X4

Summary of Contents for SUNLUNE JASMINER X4

  • Page 1 JASMINER X4 High-throughput Mini Server Instruction Manual JASMINER X4 High-throughput Mini Server Instruction Manual Tip: Follow the official account of SUNLUNE , then reply “course” to get the use demonstration video of the device. SUNLUNE Technology (Nantong) Co., Ltd. November 2021...
  • Page 2 JASMINER X4 High-throughput Mini Server Instruction Manual Catalogue I Product introduction....................3 II Product features......................3 III Inspection before use....................3 IV Description........................5 V Settings...........................7...

  • Page 3: I Product Introduction

    JASMINER X4 High throughput Mini server instruction manual I Product introduction JASMINER X4 high-throughput Mini server, AKA JASMINER X4 ethash brick, is a Desktop ethash server with ultra-high cost performance developed by Sunlune technology (Nantong) Co., Ltd. JASMINER X4 based on memory computing integrated high-throughput computing chip.

  • Page 4: Inspection Before Use

    JASMINER X4 High-throughput Mini Server Instruction Manual JASMINER X4 high throughput Mini server III Inspection before use 1.Inspection before use  After unpacking, please check for any package deformation or interface damage. If there is any fault, please contact the after-sales department.
  • Page 5 JASMINER X4 High-throughput Mini Server Instruction Manual  There are four protective sleeves are equipped to prevent edge scratches. Please insert the protective sleeve for safety before use. IV Basic description 1. Device Attention: Place the device as shown in the figure above. Do not place the device in a closed space.
  • Page 6 JASMINER X4 High-throughput Mini Server Instruction Manual Overall weight (including package, kg) 2. Interface and description Alarm lamp(red) IP Report Alarm lamp(red) TF Card slot Network interface Reset Power interface TF card TF Card slot IP Report When using IP report software, the high-throughput Mini...
  • Page 7 JASMINER X4 High-throughput Mini Server Instruction Manual the 220V AC Power to the device for normal operation. 2. Configuring equipment Configuring with JASMINER Group Control Software  Download the "IP Group Control Management Software" from the JASMINER website → Service → Firmware and Software → Other；...
  • Page 8 JASMINER X4 High-throughput Mini Server Instruction Manual Copy and paste the obtained pool address into the pool, then copy and paste the sub-account (worker) into the wallet/account number (if you do not have a registered pool, you need to register for the pool first, refer to the pool registration tutorial for...
  • Page 9 JASMINER X4 High-throughput Mini Server Instruction Manual  Select the algorithm, the device supports both ETH and ETC algorithms, with the default being the ETH algorithm；  select the operating frequency, the default is 200 MHz；  clicking on Configure Miner to start the configuration；...
  • Page 10 JASMINER X4 High-throughput Mini Server Instruction Manual *Up to now, all parameters have been set. If you would like to know more about device setup you can read items 4 and 5. 4.Setup without IP group control management software.  Enter the shown IP address into the browser and press enter to open the device web operation interface.
  • Page 11 JASMINER X4 High-throughput Mini Server Instruction Manual name and password. Select the algorithm. The device support both ETCHASH and ETHASH  algorithm. Default algorithm is ETCHASH. Click "update" to submit the configuration.  View hashrate  After 30 minutes running, we can find device hashrate on Status page.
  • Page 12 JASMINER X4 High-throughput Mini Server Instruction Manual obtain the IP address by default. After the change, click "update" to take effect. Modify login password: If you need to change the login name and  password. Select the "admin" configuration item. The default login name of the device is root and the default password is root.
  • Page 13 JASMINER X4 High-throughput Mini Server Instruction Manual Upgrade system firmware: Select the "upgrade" option, select the  firmware to be upgraded, and click "upload image" to complete the upgrade operation. Restart the device: Select "reboot" and click "reboot now". ...
  • Page 14 Restore the device to the factory settings, select "reset", and click  "reset now".
