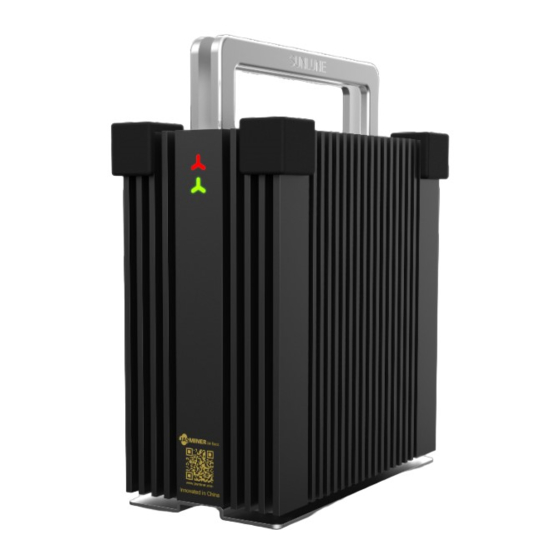

High-throughput quiet server
Hide thumbs Also See for JASMINER X4:

Advertisement

Quick Links

JASMINER X4
High-throughput Quiet Server
Instruction Manual
Tip: Follow the official account of SUNLUNE , then reply "course" to get the use
demonstration video of the device.
SUNLUNE Technology (Nantong) Co., Ltd.
April 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the JASMINER X4 and is the answer not in the manual?

Questions and answers

Summary of Contents for SUNLUNE JASMINER X4

  • Page 1 JASMINER X4 High-throughput Quiet Server Instruction Manual Tip: Follow the official account of SUNLUNE , then reply “course” to get the use demonstration video of the device. SUNLUNE Technology (Nantong) Co., Ltd. April 2022...
  • Page 2 JASMINER X4 High-throughput Quiet Server Instruction Manual Catalogue I Product introduction ..................3 II Product features ....................3 III Inspection before use ..................3 IV Description ....................5 V Settings ......................7...
  • Page 3 Jasminer X4 high-throughput quiet server, is a super cost-effective computing server developed by Sunlune technology (Nantong) Co., Ltd. Jasminer X4 based on memory computing integrated high-throughput ASIC. The ASIC with memory computing integrated structure realizes the combination of Memory and computing, increases the access bandwidth while meeting the demand of storage capacity, breaks through the bottleneck of computing power, save energy and size ,providing sufficient computing power, exquisite low...
  • Page 4 JASMINER X4 High-throughput Quiet Server Instruction Manual environment friendly. Environmental temperature≤40 °C. Designed for multi-level users, it can be used in both domestic environments and professional premises (IDC rooms) and can be operated without specialist knowledge. JASMINER X4 High-throughput quiet server...
  • Page 5 JASMINER X4 High-throughput Quiet Server Instruction Manual  Pay attention to dust and foreign matters,otherwise, the mainboard may be corroded and the device cannot work properly.  Private renovation is not guaranteed. III Basic description 1. Device Front Back Attention: Place the device as shown in the figure above.
  • Page 6 JASMINER X4 High-throughput Quiet Server Instruction Manual 2.parameter Overview Specification Type JASMINER X4 Name High-throughput quiet server Encryption algorithm ETCHASH&ETHASH Hashrate(MH/s) 1040±10% INPUT 200-240V~,50/60Hz,2.4A power consumption(Watt) 480±10 Energy efficiency ratio (25 ° C 0.46±10% ambient temperature, J / MH) Hardware Configuration...
  • Page 7 JASMINER X4 High-throughput Quiet Server Instruction Manual 3.Interface and description Alarm lamp IP Report Alarm lamp(red) TF Card slot Network Reset interface AC IN TF card TF Card slot IP Report When using IP report software, the high-throughput 1U server IP address will be feedback to your PC...
  • Page 8 JASMINER X4 High-throughput Quiet Server Instruction Manual a) Network cable connection: Insert the RJ45 crystal head into the network interface marked with ETH of the router and the device interface respectively. Pay attention to the direction when inserting the cable.
  • Page 9 JASMINER X4 High-throughput Quiet Server Instruction Manual  Check the machines need to be configured Copy and paste the obtained pool address into the pool, then copy and paste the sub-account (worker) into the wallet/account number (if you do not have a registered pool, you need to register for the pool first, refer to the pool registration tutorial for details).
  • Page 10 JASMINER X4 High-throughput Quiet Server Instruction Manual  Select the algorithm, the device supports both ETH and ETC algorithms, with the default being the ETH algorithm;  select the operating frequency, the default is 200 MHz;  clicking on Configure Miner to start the configuration;...
  • Page 11 JASMINER X4 High-throughput Quiet Server Instruction Manual At this point the configuration of the high throughput server has been completed and the machine can work normally. 3.Other settings: double click on the device in the group control software to enter the web page for modification and setting.
  • Page 12 JASMINER X4 High-throughput Quiet Server Instruction Manual  Enter the "miner" configuration interface to modify the ore pool settings and let the device start to provide hashate for you.  Enter the preferred and two alternative mining pool addresses, account name and password.
  • Page 13 JASMINER X4 High-throughput Quiet Server Instruction Manual 5.Other settings  IP setting: If you need to change the network configuration such as IP address, select the "network" configuration item, and the device will dynamically obtain the IP address by default. After the change, click "update" to take effect.
  • Page 14 JASMINER X4 High-throughput Quiet Server Instruction Manual  Upgrade system firmware: Select the "upgrade" option, select the firmware to be upgraded, and click "upload image" to complete the upgrade operation.  Restart the device: Select "reboot" and click "reboot now".
  • Page 15 JASMINER X4 High-throughput Quiet Server Instruction Manual  Restore the device to the factory settings, select "reset", and click "reset now".
