- Page 1 JASMINER X4 High throughput Mini server instruction manual Total 11 pages SUNLUNE technology (Jiangsu) Co., Ltd August 2021...
- Page 2 JASMINER X4 High throughput Mini server instruction manual Catalogue I Product introduction....................3 II Product features......................3 III Inspection before use....................3 IV Description........................5 V Settings...........................7...
-
Page 3: I Product Introduction

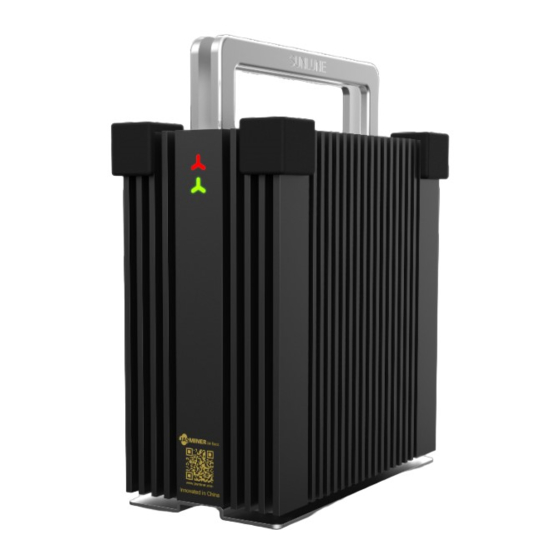

JASMINER X4 High throughput Mini server instruction manual I Product introduction Jasminer X4 high-throughput Mini server, AKA Jasminer X4 ethash brick, is a Desktop ethash server with ultra-high cost performance developed by Sunlune technology (Jiangsu) Co., Ltd. Jasminer X4 based on memory computing integrated high-throughput computing chip. -
Page 4: Inspection Before Use
JASMINER X4 High throughput Mini server instruction manual and efficient, environment friendly production. Daily power consumption less than 1 KWH. Environmental temperature≤40 °C. JASMINER X4 high throughput Mini server III Inspection before use 1.Inspection before use l After unpacking, please check for any package deformation or interface damage. - Page 5 JASMINER X4 High throughput Mini server instruction manual function, only wired network connection can be used. l To avoid heat dissipation, do not stack or cover the device with other objects. l Please run the device under the recommended operating environment (operating temperature: 0-40 ℃, operating humidity: 5% RH ~ 95% RH,...
- Page 6 JASMINER X4 High throughput Mini server instruction manual Attention: Place the device as shown in the figure above. Do not place the device in a closed space. For your safety, do not remove any screws or fasteners from the device.
- Page 7 JASMINER X4 High throughput Mini server instruction manual 2. Interface and description Alarm lamp(red) IP Report Alarm lamp(red) TF Card slot Network interface Reset Power interface TF card TF Card slot IP Report When using IP report software, the high-throughput Mini...
- Page 8 JASMINER X4 High throughput Mini server instruction manual Connection inspection a) Network cable connection: Insert the RJ45 crystal head into the network cable interface marked eth of the router and the device interface respectively. Pay attention to the direction when inserting the cable. Please insert the crystal head in place.
- Page 9 JASMINER X4 High throughput Mini server instruction manual device, the software automatically pops up related information of the device. Related information Press the IP Report button of the device Start listening l Shown IP as the currently set IP address.
- Page 10 JASMINER X4 High throughput Mini server instruction manual b) Enter the "miner" configuration interface to modify the ore pool settings and let the device start to provide hashate for you. l Enter the preferred and two alternative mining pool addresses, account name and password.
- Page 11 JASMINER X4 High throughput Mini server instruction manual Configuration of this high-throughput mini server is complete. 4. Other settings a) IP setting: If you need to change the network configuration such as IP address, select the "network" configuration item, and the device will dynamically obtain the IP address by default.
- Page 12 JASMINER X4 High throughput Mini server instruction manual c) View log: If you want to view the log information of the system operating. You can select the "log" option. d) Upgrade system firmware: Select the "upgrade" option, select the firmware to be upgraded, and click "upload image" to complete the...
- Page 13 JASMINER X4 High throughput Mini server instruction manual e) Restart the device: Select "reboot" and click "reboot now". f) Restore the device to the factory settings, select "reset", and click "reset now".
- Page 14 JASMINER X4 High throughput Mini server instruction manual...
