Summary of Contents for PUMATRONIX ITSCAM FF 600

  • Page 2 The information contained in this document is subject to change without notice. Pumatronix reserves the right to modify or improve this material without obligation to notify changes or improvements. Pumatronix ensures permission to download and print this document, provided that the electronic or physical copy of this document contains the text in full.

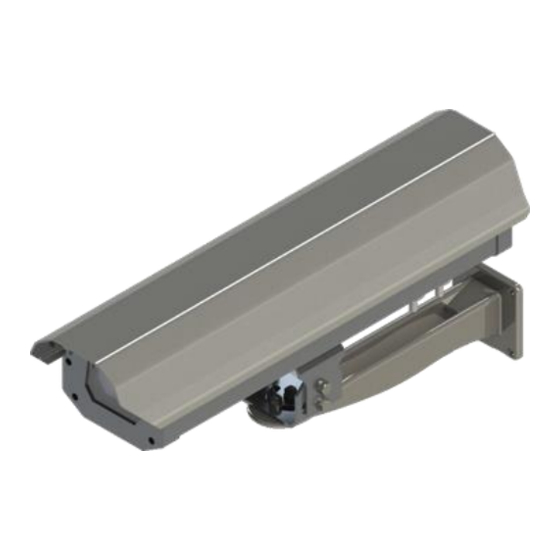

  • Page 3 Examples of these technologies are Intelligent Transport Systems (ITS), in which Pumatronix products, such as the ITSCAM FF 600 line, are used. This line captures images of vehicles in places whose chosen processing infrastructure is embedded, performing monitoring through automatic reading of their plates and in environments with high volume of traffic, ideal for Free Flow systems.
  • Page 4 Loss of Warranty: The parts that make up the ITSCAM FF 600 must not be changed, and the user cannot perform any repairs on the product.
  • Page 5 ITSCAM FF 600 Models The ITSCAM FF 600 image capture and processing device reads license plates in places with adequate ambient lighting and in situations with low light, it is necessary to separately acquire one illuminator per monitored lane, up to a maximum of two illuminators, such as Pumatronix's ITSLUX or compatible lighting equipment.

  • Page 6: Table Of Contents

    Product Manual ITSCAM FF 600 Table of Contents Knowing the Product ........................7 Further Documentation ..............................9 Information Generated ........................9 Mechanical Specifications ........................ 9 Electrical Specifications ......................... 12 Power Connections ..............................14 Trigger in IOs ....................................16 Illuminator Connection .............................. 16 Ethernet Connection ..............................
  • Page 7 Care and Maintenance ........................27 Firmware Upgrading ..............................28 ITSCAM FF 600 Update via Web Interface ............................28 (Restricted Procedure) Recovery of ITSCAM FF 600 by Factory Reset ....................30 ITSCAMPRO Móvel Plugin Update ..............................30 Preventative Maintenance ............................31 Warranty General Conditions ......................

  • Page 8: Knowing The Product

    Figure 3 - Examples of night-time images captured with ITSCAM FF 600 ITSCAM FF 600 hardware models have 4 input or output ports (IOs), the IO1 and IO2 are dedicated to the control of artificial lighting (flash), which are usually activated automatically in low light situations. IO3 and...
  • Page 9 ITSCAM FF 600 line provides 2 Gigabit Ethernet ports on the back panel of the ITSCAM 600 device to facilitate connectivity at monitoring points and allow remote and simultaneous access for multiple users.

  • Page 10: Further Documentation

    ITSCAMPRO Móvel Software Manual Information Generated The ITSCAM FF 600 line captures images of up to two lanes in JPEG format and automatically provides Brazilian vehicle license plates characters (in the old and Mercosur standard). For releasing recognition of additional country plates, please contact Pumatronix Commercial. The plates read in the images, the type of vehicle captured and information about the equipment setup are stored inside the image files, in the JPEG field for the storage of comments.
  • Page 11 Product Manual ITSCAM FF 600 Figure 5 - Pole fastener: 1) Pole support; 2) Stainless steel clamp • Framing adjustment: with movement of the joint at equipment base Figure 6 - Possible adjustments to the joint at equipment base: A) Vertical inclination; B) Horizontal rotation www.pumatronix.com...
  • Page 12 Product Manual ITSCAM FF 600 • Interfaces: connectors available for access on the ITSCAM 600 device back panel Interface Mechanical Specification 4G/3G/2G Antenna male SMA connector Wi-Fi b/g/n Antenna male SMA connector GPS Antenna male SMA connector MOV Antenna male SMA connector...

  • Page 13: Electrical Specifications

    Product Manual ITSCAM FF 600 • Dimensions: Front View Side View A) Height B) Width C) Length Dimensions in millimeters 245* Electrical Specifications • Power: 90 VAC~264 VAC (mandatory grounding at installation site) • Maximum input current: 1.5 A •...
  • Page 14 Product Manual ITSCAM FF 600 ITSCAM 600 Electrical Specifications Interface 5 kVAC dielectric insulation, ±30 kV electrostatic discharge protection by contact - Level B (IEC 2 Gigabit 61000-4-2) and ±30 kV by air (IEC 61000-4-2), EFT for peak direct current at 5/50 ns up to 40 A Ethernet ports ±...

  • Page 15: Power Connections

    ITSCAM FF 600 connections oxidation. Power Connections Electrical and signal connections are made to the ITSCAM FF 600 Connection Board, and some data connections are available on the ITSCAM 600 device back panel as specified in Mechanical Specifications.
  • Page 16 Product Manual ITSCAM FF 600 Connection Board • Connectors available on the Connector Interfaces Color Description Red* Phase Yellow + Green* Ground AC power input Red or Light Blue * Neutral VIN- Brown 24 VDC illuminator power supply VIN+ IO1-...

  • Page 17: Trigger In Ios

    IOs Specification: Maximum supported current of 50 mA and maximum supported voltage of 28 VDC. The circuit rated drive current is 10 mA. Illuminator Connection In low light situations at the ITSCAM FF 600 installation spot, it is possible to apply up to two illuminators, Connection Board connected to the .

  • Page 18: Antenna Connection

    Antenna Connection The images captured by ITSCAM FF 600 may present the geolocation, made available by the GPS integrated with the equipment. The Wi-Fi, 4G and 3G signals can also be amplified using external antenna, with SMA type connector (male connector, i.e., with center pin).

  • Page 19: Wi-Fi Antenna

    Software Specifications The data generated by ITSCAM FF 600 is stored and made available through a plugin that is installed on ITSCAM 600. The plugin used by default for ITSCAM FF 600 is ITSCAMPRO Móvel. Access to ITSCAM 600 ITSCAM 600 has a web interface for evaluating the images generated and performing configurations such as Network, OCR, Trigger.

  • Page 20: Image Capture Architecture

    ). This request can be made through external sensors, connected to one or more ports of ITSCAM FF 600 (IOs set as Inputs). In the ports setups it can be informed that the capture trigger will be made by edge (up, down or both) or level (high and low).

  • Page 21: Multiple Exposures

    Figure 11 - Multiple Exposures in Daytime Figure 12 - Multiple Exposures at Night ITSCAM FF 600 can recognize license plates from Brazil (in the Brazilian and Mercosur standards), Argentina, Chile, Mexico, Paraguay, Uruguay, and the entire Southern Cone simultaneously. When enabled, recognition is done on all captured images.

  • Page 22: Setup Profiles Management

    ITSCAM 600 device manual. Setup Profiles Management Profiles ITSCAM FF 600 allows to register up to four sets of ITSCAM 600 device settings, called . These Transition settings correspond to image adjustments, framing (zoom and focus) and the...

  • Page 23: Detailed Registration Information

    Product Manual ITSCAM FF 600 Actions Exporting selected records Exporting available for the records files allow: (in CSV format); selected records (with images) Removing selected records in zip format or Detailed Registration Information Log Report When accessing the images, the log details are displayed in tabs and contain the data obtained in the capture: •...

  • Page 24: Receiving Images

    Product Manual ITSCAM FF 600 Receiving Images ITSCAM FF 600 can send the captured images to vehicle storage and monitoring centers as follow: Server Interaction with ITSCAM FF 600 The FTP server allows receiving the images captured by ITSCAM FF 600 The ITSCAMPRO type server is used to send images and plate read by the embedded OCR.
  • Page 25 ITSCAM FF 600 The ITSCAM FF 600 line can be installed in an urban and road environment, and it is possible to adjust the framing to capture one or two track lanes. When installing on the highway, the minimum height limits specified for the location must be respected, as well as the maximum equipment vertical inclination angle of 45°.

  • Page 26: Conditions Required For Installation

    Conditions Required for Installation To get ITSCAM FF 600 best performance, it must be installed in a place parallel to the monitored track and with little horizontal inclination. The concealment of image parts by objects such as trees or vehicles from other tracks should be avoided.

  • Page 27: Wi-Fi Network Configuration

    Access point. Use an IP address for the DHCP server that is different from the one applied to access the ITSCAM FF 600 device for the purpose of avoiding conflicts and malfunction of the data network.

  • Page 28: First Access To The Itscampro Móvel Plugin

    ITSCAMPRO Móvel must be accessed from an , connected to the same data network as the ITSCAM FF 600 device, by the address for external access or by devices that have the Android/iOS application installed. The default address for accessing the plugin is 192.168.0.254:9080. If a point-to-point connection is used, 192.168.254.254:9080...

  • Page 29: Firmware Upgrading

    ITSCAM FF 600 device from not working: 1) Keep the ITSCAM FF 600 device inactive during the upgrade process, ensuring that it is not requested by any service or other equipment on the network in which it is installed;...
  • Page 30 ITSCAM FF 600 System Updating 6) Access the menu: > the ITSCAM FF 600 web interface 7) Select or drag the firmware file (the update starts automatically and occurs in three steps, which are signaled by the progress bar); Upload Installation...

  • Page 31: (Restricted Procedure) Recovery Of Itscam Ff 600 By Factory Reset

    The ITSCAM FF 600 recovery procedure requires an SD card with a minimum capacity of 4 GB and that can be formatted. 1) Download the ITSCAM FF 600 recovery file (file with .tar extension) (please contact Pumatronix...

  • Page 32: Preventative Maintenance

    600 device system. Preventative Maintenance The ITSCAM FF 600 image capture and processing device shall provide images without artifacts. However, if the lenses or the protective box outer surface has any dirt, it must be cleaned; 14) Spray liquid for cleaning lenses on the surface of the lenses or water on the glass of the...

  • Page 33: Situations Where The Product Lose Warranty

    LGPD when used, together with other equipment, to capture personal data. Pumatronix is not responsible for the captured images purposes, use and treatment, and the product's user or purchaser solely decides how to control the information and operate the product.
