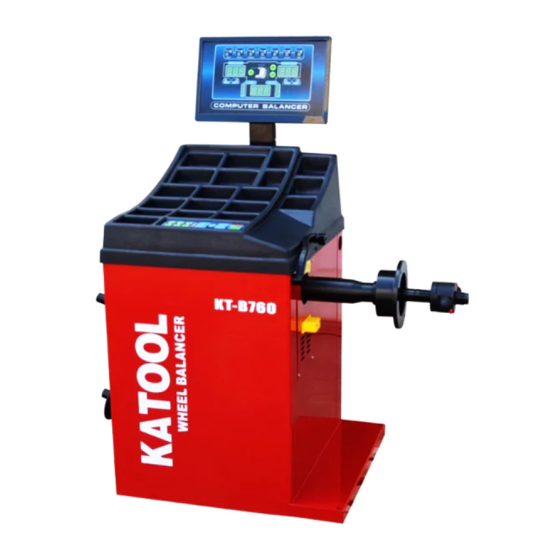

1 Performance and characteristics:
- In case of emergency, press the STOP button to stop the wheel from spinning.
- With OPT function, optimize tire rim fit.
- With unit conversion function.
- Multiple balancing methods for your choice.
- Balancing accuracy up to ± 1g, short balancing time.
- With self-correction and automatic fault diagnosis function.
- Balance decomposition (hidden lead) function (hide behind spokes)
- With automatic ruler ranging and measuring function
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Katool KT-B760
Summary of Contents for Katool KT-B760
- Page 1 1 Performance and characteristics: - In case of emergency, press the STOP button to stop the wheel from spinning. - With OPT function, optimize tire rim fit. - With unit conversion function. - Multiple balancing methods for your choice. - Balancing accuracy up to ± 1g, short balancing time. - With self-correction and automatic fault diagnosis function.
- Page 2 W H E E L B L A N C E R 2 Technical Data The maximum 65kg wheel weight Rated power 110V、220V supply ±1g Balance accuracy 1.5″ －20″ Width of rim 8″ －30″ Diameter of rim 3．Control panel: 3.1 Display panel meaning No.
- Page 3 W H E E L B L A N C E R 6- The first five lights on the top row are in balance mode (as shown in the icon), and the last one is hidden indicator for unbalanced block segmentation.
- Page 4 W H E E L B L A N C E R 1. A Manually enter the reference distance size button A, press the arrow to go up, increase the input size, press the arrow to go down, reduce the input size. 2.
- Page 5 W H E E L B L A N C E R 9, The FINE button displays < 5g(0.3oz) actual unbalance value 10, mm/inch for size unit mm/inch switch display 11. Start button 12, STOP emergency STOP and electromagnetic lock button 3.
- Page 6 W H E E L B L A N C E R 4. Tire Balance operation 4.1 After the power is turned on and the device code is displayed, the display window displays "8.0 5.7 14.0", which proves that the machine is normal.
- Page 7 W H E E L B L A N C E R p o s i t i o n i n g 4.2.2 Reverse When the wheel outside deformation is large, the reverse positioning is used to ensure the accurate positioning of the inner hole and spindle of the steel ring.
- Page 8 W H E E L B L A N C E R Note: use automatic pull feet enter A value, in '0 bit position, pull the pull rod, the pull end, roof and the tire along, stop for A few seconds, until the left side of the display window shows the three rung, back on the pull rod, the pull rod position, at this time on the left side of the digital tube display the value of reference for the pull rod input size A value, on the right side of the value of...
- Page 9 W H E E L B L A N C E R 4.3.2 ALU-S balance mode dimension input method Do not clamp lead on the outside of the aluminum rim balance (S balance). 1) Manual input of rim data Press key to select "S" balance mode (corresponding indicator light is on), please refer to (figure) 0 gauge 14mm...
- Page 10 W H E E L B L A N C E R 2) Automatic rim data Pull the pull rod, the pull rod to measure the tyres in the first place, stop for a few seconds, the digital tube display 5.7, aI your measurements first position and continue to pull the pull rod, to measure the second position, the digital tube display, ALU S second position after aE measurement, loosen the pull rod position 0, the value on the left side of the digital tube display is the aI, The...
- Page 11 W H E E L B L A N C E R Dynamic Balancing - A balancing block is sandwiched between both sides of the rim for steel and aluminum alloy rims. Static balance static-. Static balance correction is performed on the tire. ALU1- Balanced aluminum alloy rim, adhesive balancing block method is adopted on both sides.
- Page 12 W H E E L B L A N C E R all bright and there is buzzing sound (it will be automatically locked when there is electromagnetic device), clamp the lead block with the same inner imbalance value on the ruler fixture, pull the ruler until there is buzzing sound and it shows [***][O--][***], it means that it has reached the horizontal position attached to the inner lead block.
- Page 13 W H E E L B L A N C E R Decomposition is used on the outer side of the static balance or ALU-S balancing mode and can be used to covertly attach the balancing block to the rim behind the spokes.
- Page 14 W H E E L B L A N C E R corresponding weight of lead block is attached behind the spokes by pulling the ruler. Rotate the tire slowly again until the second unbalance value appears on the middle display screen. At this time, stick the lead block with the corresponding weight in the way above, and the tire is balanced.
- Page 15 W H E E L B L A N C E R III Slowly turn the tire so that the outer indicator lights are all on. Put a 10g lead block just above the outer rim, as shown in the figure: Ⅳ...
- Page 16 W H E E L B L A N C E R OPT > key. Display: [] [180] Display 180° means that the rim and the tire should rotate 180° each other. Make a mark on the same position of the taper plate and the rim hole, so that the rim can be installed back to the same position.
- Page 17 W H E E L B L A N C E R 4.6.2 Wheel not yet rotating (or static unbalance value less than 30g) Press the < OPT > key, and the left screen displays "OPT". Press < Start >, the wheel rotates for the first time. After the rotation is completed, it will display [] [180].
- Page 18 W H E E L B L A N C E R 5.4 Self-correction Self-correction can be re-corrected when the manufacturer has finished, used for many years, replaced parts or suspected that the balance error is too large. Select a medium tire (13 ", 14 "rims) on the spindle and enter the correct value for this tire.
- Page 19 W H E E L B L A N C E R Ⅲ At this point, the display board displays "100" "Add". Slowly turn the tire until the inboard indicator is fully on and add 100g counterweight at 12 o 'clock on the inside of the wheel.
- Page 20 W H E E L B L A N C E R Note: When the computer board, phase sensor or pressure sensor is replaced, it must be self-calibrated again. When the computer board is replaced, its parameters should be set according to the parameter values marked in the machine or the parameters of the original board.
- Page 21 W H E E L B L A N C E R 3. Press A [↑] button again and the display window displays: "AUT" and "ON/OFF", indicating whether there is width ruler measurement. Press B button [↓] and B button [↑] to select "ON"...
- Page 22 W H E E L B L A N C E R Replace tire test, Err3 The wheel unbalance is too b re-calibrate 1 If inverted, the phase line is wrong Three-phase electrical equipment, phase adjustment Forward rotation Err4 can be problem with position...
- Page 23 W H E E L B L A N C E R properly Err8 Memory value three 1. Correct to standard value Display an error of a few parameters messed up according to instruction hundred grams 2. The tire error is too big 2.
- Page 24 W H E E L B L A N C E R horizontal piezoelectric can be checked. The normal value is between 300~400. At this time, pressing the balance shaft can see that the number has a large jump change is normal, otherwise the horizontal piezoelectric line or the circuit board part has a fault.
- Page 25 W H E E L B L A N C E R Note: press < C > at any time to exit the self-check operation. - 25 -...
