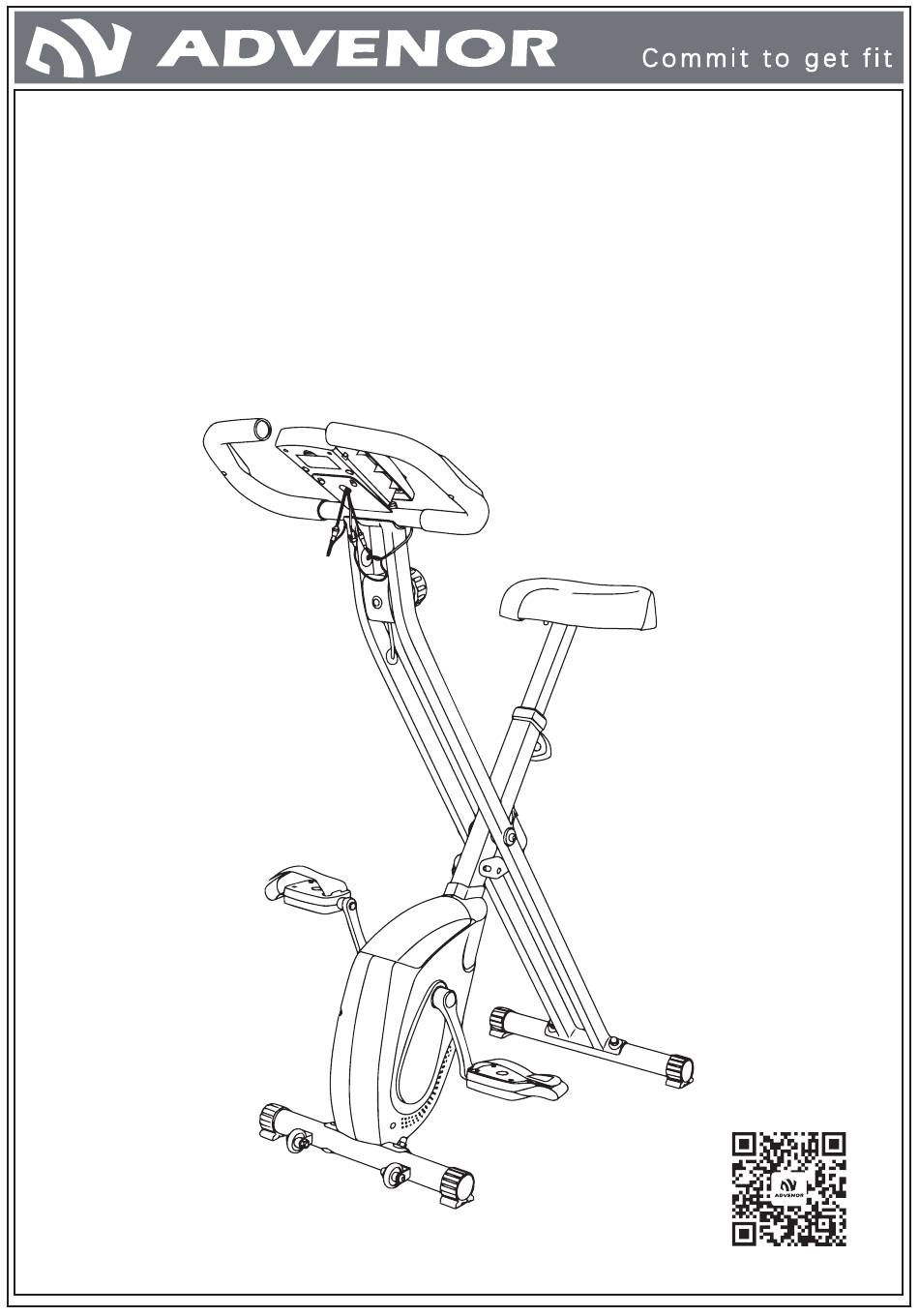

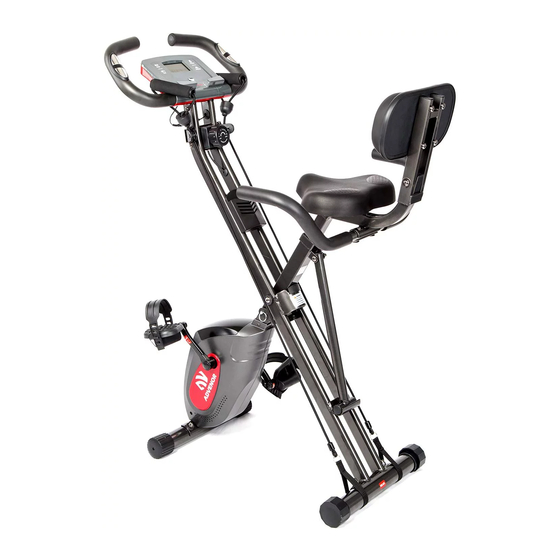

- Page 1 ADVENOR X-BIKE Assembly & Operation Manual Scan to view assembly video or visit https://youtu.be/_w0t-wt-yf0...
-
Page 2: Read Before Assembly
When installing the pedals, please make sure that you install each pedal to the corresponding crank by checking L or R labels. ADVENOR shall not take the responsibility for the damages of the pedal which was installed to the unmatching crank by customers. -
Page 3: Name Of Parts
1. Name of Parts HANDLE BAR MONITOR TENSION KNOB SEAT ADJUSTING KNOB MAIN FRAME SAFETY PIN RIGHT STRAP RIGHT PEDAL REAR STABILIZER LEFT STRAP LEFT PEDAL FRONT STABILIZER TRANSPORTATION WHEEL ANTI-SKID ENDCAP... - Page 4 2. Parts in the Package Main Frame X1 Monitor X1 Hardware Tool A X2 Front Back NOTE: The two screws in Picture 10 which have been pre-assembled to the back of the monitor. Handle bar X1 B X1 NOTE: The two spring washers and screws have been pre-assembled.
-
Page 5: Assembly Instruction
3. Assembly Instruction Tip: Please wear gloves and assemble in the order listed in the manual. 1.Unfold the main frame by adjusting the safety pin from position A to position B as shown in the picture 1. (To adjust the position of safety pin, please press the small spring button and pull the ring on the other side simultaneously to remove from position A and insert the safety pin at the position B) EXPANDED... - Page 6 Picture 3 4. Use Tool A2 to install the left and right pedals to the matching cranks corre- spondingly. ADVENOR shall not take the responsibility for the damages of the pedal which was installed to the unmatching crank by customers.
- Page 7 ② The cranks are pre-assembled to the exercise bike. Only the connection of pedals and cranks is required. Please install each pedal to the matching crank and use Tool A2 to tighten the connecting screws in the direction of the arrow on the crank indications.
- Page 8 6. Install the seat post to the seat tube Steps: ① Remove the adjusting knob which has been pre-assembled on the seat tube by rotating anticlockwise. (See Picture 7) ② Install the seat post to the seat tube while paying attention to the max-height mark on the seat post.
- Page 9 ③ ④ Picture 10 8.Install the monitor to the handle bar Steps: ① Use Tool B2 to remove the two screws in Picture 11 which have been pre-as- sembled to the back of the monitor. ② Put the monitor on the supporting mental piece of the handle bar and use Tool B2 to tighten the screws as shown in the picture 12.
- Page 10 ② Identify the cables on different parts. One cable with connector B Two cables with connector As Three cables with one on the main frame on the handle bar connector A and two connertor Bs on the back of the monitor ③...
- Page 11 4. Operation Instruction ※ Please use the exercise bike in good physical condition and wear suitable clothes and shoes for fitness. ※ Check all the screws and nuts are tightened and adjust the seat to the suitable height before getting on. ※...
- Page 12 5. Storage and Move ① For space-saving storage, Advenor exercise bike can be folded by adjusting the safety pin from position B to position A as shown in the picture 17. Picture 17 ② To easily move the exercise bike, please hold the handle bar and move with the transportation wheels as shown in the picture 18.
- Page 13 Acknowledgements Dear customer, Thank you for choosing ADVENOR. We commit to provide the best products and services to every customer. If you have any inquiries or require further assistance, please contact ADVENOR customer support by Phone: +1 323-686-3277 Email: service@advenorfitness.com Your feedback and suggestions are always important and valuable to us.
