一、开机显示页面

Startup display

开机后，显示（品牌 + 产品型号 + 系统版本号）（2 秒后默认进入手动模式）
Once power on, the panel will keep display product information for about 2 second(the
product information include band and product model and system version),then system will
jump to manual work mode.
产品型号
Product model
二、操作说明

Operation guide

自动模式包含前/后切模式和固定长度切模式，用户可以通过修改系统参数"ChkSw"
来选择其中一种工作模式， "ChKSw"设置为 ON 时表示前/后切模式， "ChkSw"设置为 OFF
时表示固定长度切模式
The system include Start&End cut mode and fixed-length cut mode,user can select mode by
setting system parameter "ChkSw",when "ChkSw" Turn on ,the Start&End cut mode is
selected,otherwise,the fixed-length cut mode is selected.
1.前/后切模式操作

Start/End cut mode operation

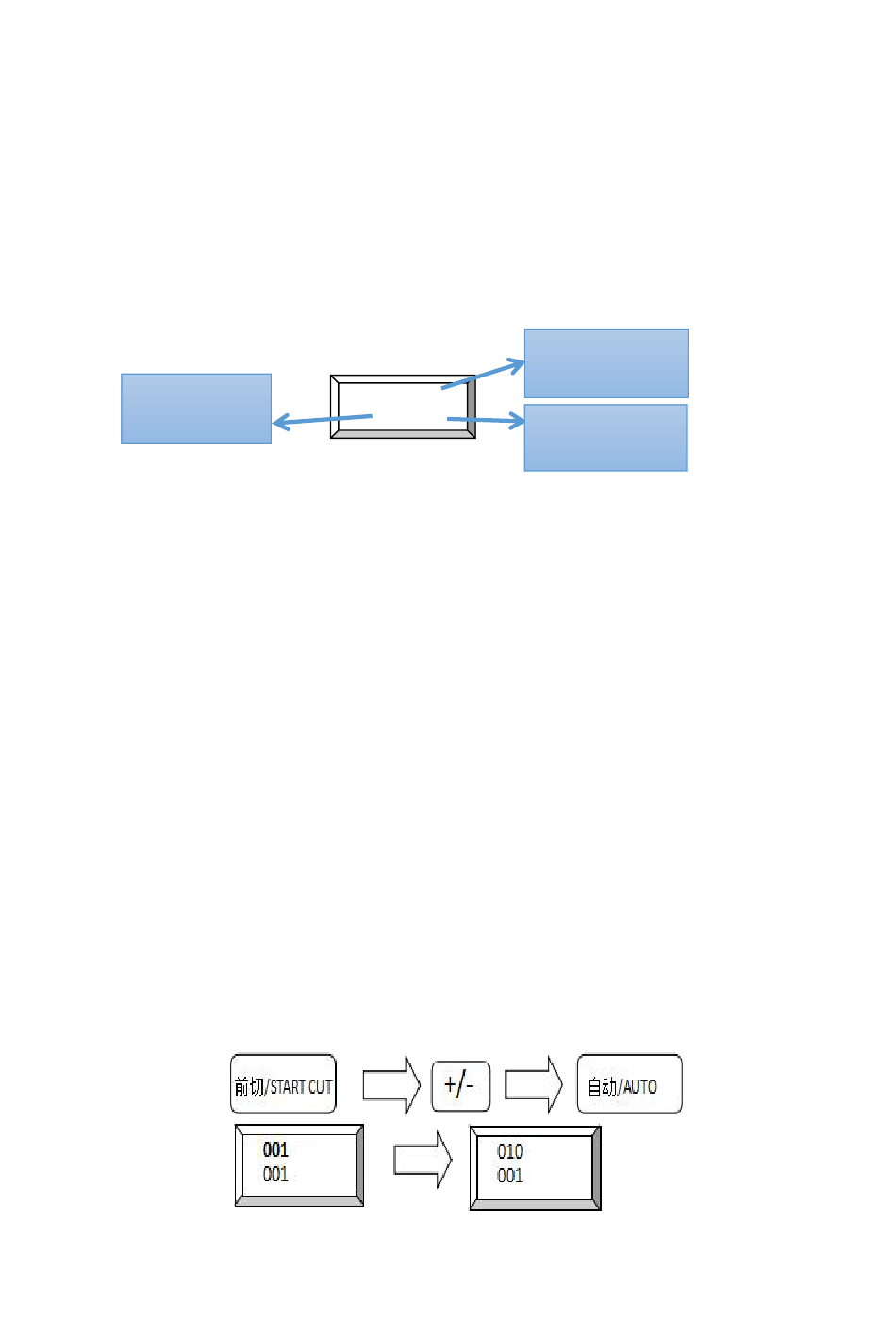

a.按下"前切"或"后切"可以进入针数设定页面，通过"+/-"可以调节针数设定值，连
续按两次"前切"或"后切"可以取消前切或者后切功能，操作流程如下图所示
press START-CUT/END-CUT button can enter Stitch setting page,then modify the stitch
setting by +/- button,in addition,press twice START-CUT/END-CUT button can cancle
start-cut function or end-cut function,the operation process is shown below
TC-35 用户使用说明
TC-35 USER GUIDE
SXSTAR
TC V2.3
Page 1
