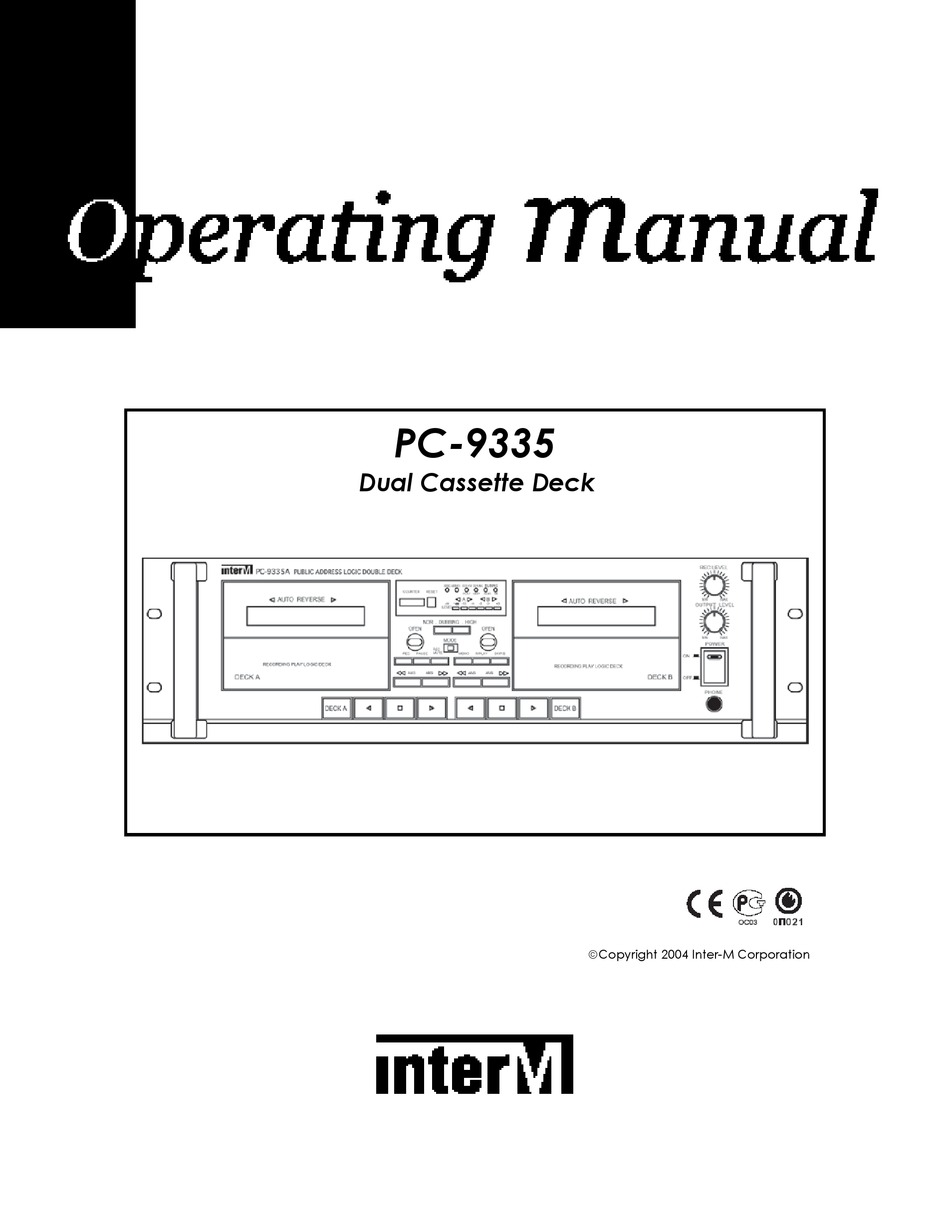

  • Page 1 PC-9335 Dual Cassette Deck Copyright 2004 Inter-M Corporation...

  • Page 2: Table Of Contents

    Welcome ... 3 Unpacking ... 3 Warnings ... 3 Operation... 5 Features ... 6 Front Panel Controls... 7 Rear Panel Controls ... 10 Operating the Cassette Deck... 12 Playback... 12 Recording ... 12 Synchro Dubbing... 13 AMS ... 13 Blank Skip... 13 Timer Operation...

  • Page 3: Welcome

    A personal welcome to you from the management and employees of Inter-M Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated to providing you with the highest quality products and the best value.
  • Page 4 PC-9335 Dual Cassette Deck 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades, with one wider than the other.

  • Page 5: Operation

    PC-9335 Dual Cassette Deck Operation Make certain that speakers and input sources are properly connected before switching Keep volume levels at minimum gain before switching on. When the AC Mains power switch is pressed, this unit starts operation with tuner display.

  • Page 6: Features

    PC-9335 Dual Cassette Deck Features • Dual Full-Logic-Controlled Cassette Deck with Auto Reverse • Three Playback Modes: Single-Side Play, Two-Side Auto-Reverse Play, Two-Side Continuous Play • High-Speed Synchro Dubbing • Automatic Music Search (AMS) and Blank-Skip Functions • Rugged, Reliable Transport Mechanisms •...

  • Page 7: Front Panel Controls

    Front Panel Controls 1. Power Switch Pressing this button switches the unit on, as indicated by the integrated Power LED. Pressing the button again will switch the unit off. 2. Play Level Control This control adjusts the output level of the main output and headphone outputs. 3.
  • Page 8 6. Memory Button Pressing this button will cause the tape to stop when the tape counter reaches “000” in fast forward or rewind mode. 7. High-Speed Dub Button Pressing this button will activate high-speed dubbing mode. Pressing the STOP button on Deck A or Deck B will stop the unit. 8.
  • Page 9 18. Reverse Play Button ( ) Pressing this button activates Reverse Play mode. The “ ” indicator lights, and the tape plays in a reverse direction. 19. Fast Forward Button ( ) Pressing this switch activates Fast Forward mode. Use this button during playback for forward AMS operation (see page 13).

  • Page 10: Rear Panel Controls

    Rear Panel Controls 1. AC Connector Connect this cable to AC Mains power supply. 2. Fuse Holders The AC and DC protection fuses are located here. If the fuse blows, replace it with the same size and rating: 230VAC: 0.25A/250V 115VAC: 0.5/250V 24VDC: 1A/250V...
  • Page 11 5. Variable Output/Mono Mono line output for connection to your amplifier or mixer. The output level is directly affected by the front panel Play Level Control (Front Panel #2). 6. DC Input Terminal These terminals are provided for connection of +24VDC battery power. Connect the red terminal to the battery’s positive (+) lead, and the black terminal to the battery’s negative (-) lead.

  • Page 12: Operating The Cassette Deck

    Operating the Cassette Deck Playback Press the EJECT button on Deck A or Deck B to open the tape loading door. Insert a tape into the desired deck. Select the desired Auto Reverse mode using the REVERSE MODE selector: : Single-side PLAY (Tape stops when reaching the end). : Side A-to-Side B-to-STOP, Side B-to-STOP (Tape stops when end of side B is reached).

  • Page 13: Synchro Dubbing

    PC-9335 Dual Cassette Deck Synchro Dubbing Insert a pre-recorded cassette into Deck B. Insert a blank cassette into Deck A. For normal speed dubbing, press the REC button first and adjust the record level with the LEVEL control. Then press the NOR DUB button for normal speed dubbing.

  • Page 14: Cassette Maintenance

    PC-9335 Dual Cassette Deck Cassette Maintenance Keep the Recording Heads Clean Tape heads can periodically build up a coating of oxide residue from the passage of the tape over them. We recommend you clean the heads periodically using 99% Isopropyl Alcohol or a specially manufactured tape head cleaner.

  • Page 15: Record Safety Tabs On Cassette Tapes

    PC-9335 Dual Cassette Deck Record Safety Tabs on Cassette Tapes To disable a tape so it cannot be recorded over, locate and remove the safety tab opposite the tape opening. Holding the tape with the opening facing down, the tab to the upper left corresponds to...

  • Page 16: Specifications

    Specifications Track System Recording System Wow and Flutter Playback Frequency Response Recording Playback Frequency Response Total Harmonic Distortion Signal to Noise Ratio Input Sensitivity/Impedance Output Level/Impedance Power Source Power Consumption Weight Dimensions Specifications and design subject to change without notice for product improvements. Two-Track Mono AC Bias System Less than 0.12%...
  • Page 17 Korea and China, and sales and marketing operations located in Japan, Europe, and the U.S.A. With more than 850 employees around the globe, Inter-M is well-poised for further growth and expansion.
