Inter-m PAM-D Operating Manual

Inter-m PAM-D Operating Manual

Cassette deck module
Hide thumbs

Advertisement

Table of Contents

PAM-D
Cassette Deck Module
Copyright 2004 Inter-M Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAM-D and is the answer not in the manual?

Questions and answers

Related Manuals for Inter-m PAM-D

Summary of Contents for Inter-m PAM-D

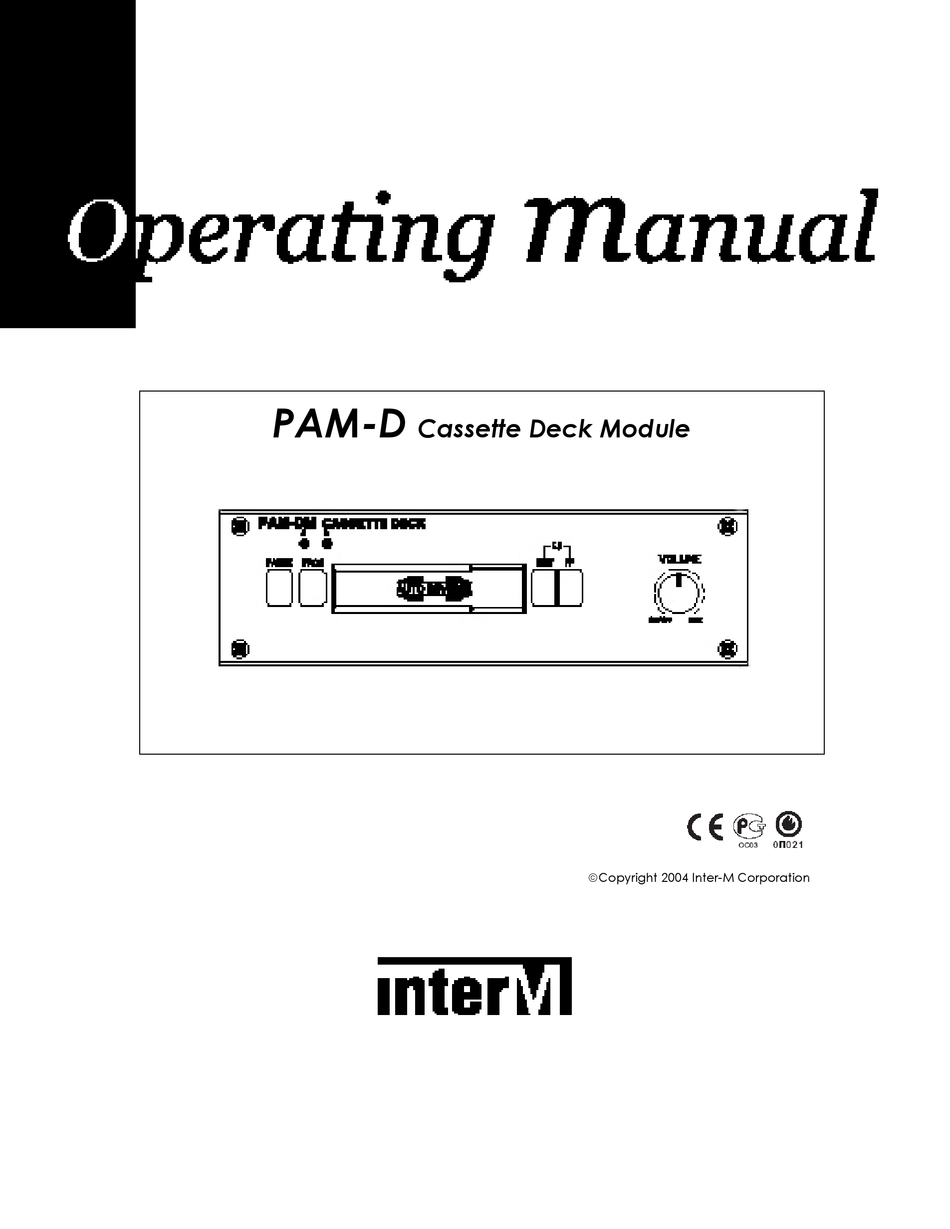

  • Page 1 PAM-D Cassette Deck Module Copyright 2004 Inter-M Corporation...

  • Page 2: Table Of Contents

    Welcome ... 3 Unpacking ... 3 Warnings ... 3 Cassette Deck Module ... 5 Features ... 5 Front Panel Controls... 6 Block Diagram ... 7 Specifications... 8 Contents...

  • Page 3: Welcome

    A personal welcome to you from the management and employees of Inter-M Thank you for purchasing this fine Inter-M product. All of us here at Inter-M are dedicated to providing you with the highest quality products and the best value.
  • Page 4 PAM-D Cassette Deck Module 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades, with one wider than the other.

  • Page 5: Cassette Deck Module

    PAM-D Cassette Deck Module Features Auto-Reverse • High-reliability auto-reverse function for endless cassette playback. Front Loading • Convenient front panel cassette loading. Integrates with PAM-Series Mixer/Amplifiers • Fits only in right bay of PAM-series Mixers/Amplifiers.

  • Page 6: Front Panel Controls

    Front Panel Controls 1. Program LEDs These LEDs indicate the direction of tape play, as selected by the Program Button(5). The A or B LED lights to indicate the A or B side of the cassette is currently playing. 2. Rewind Button Pressing this button activates Fast Rewind mode.

  • Page 7: Block Diagram

    PAM-D Cassette Deck Module Block Diagram...

  • Page 8: Specifications

    Specifications S/N Ratio T.H.D Frequency Response GENERAL Power Source Weight Dimensions Specifications and design subject to change without notice for improvements. 45dB 100Hz – 6.3kHz +18V (from PAM-series amp) 950g (2 lbs.) 184 (W) x 55 (H) x 194 (D) mm 7.25 (W) x 2.2 (H) x 7.6 (D) in...
  • Page 9 Korea and China, and sales and marketing operations located in Japan, Europe, and the U.S.A. With more than 850 employees around the globe, Inter-M is well-poised for further growth and expansion.
