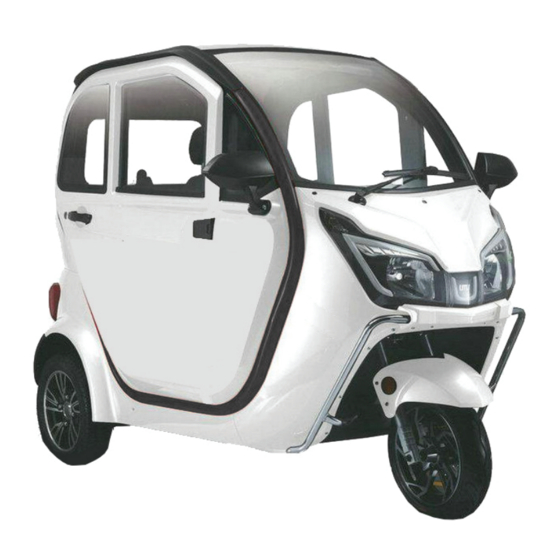

eTrikeCo ETR100C Owner's Manual
  1. Manuals
  2. Brands
  3. eTrikeCo Manuals
  4. Bicycle
  5. ETR100C
  6. Owner's manual

eTrikeCo ETR100C Owner's Manual

Hide thumbs Also See for ETR100C:
Table of Contents

Advertisement

Quick Links

Download this manual
Go Where There Are No Limits
DO GOOD WHILE YOU GO
OWNER'S MANUAL
ETR100C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETR100C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eTrikeCo ETR100C

Summary of Contents for eTrikeCo ETR100C

  • Page 1 Go Where There Are No Limits DO GOOD WHILE YOU GO OWNER’S MANUAL ETR100C...

  • Page 2: Table Of Contents

    Introduc�on General Warning Rou�ne Inspec�on Before Ridin Opera�ng Your Etrike Charging Your Etrike/Ba�ery Informa�on 10-13 Preventa�ve Maintenance 14-17 ETR100C – Overview - Steering/Controls 18-19 ETR100C – Main Technical Parameters Warranty...

  • Page 3: Introduc�On

    INTRODUCTION Congratula�ons on the purchase of your new eTrike. This manual is designed to give you the informa�on that you need for the safe opera�on and maintenance of your eTrike. Please read it thoroughly before riding your eTrike. Your eTrike’s serial number is adhered underneath the VIN cap in the front interior panel. Please record it below in the event that your eTrike is lost or stolen.

  • Page 4: General Warning

    Laws in your jurisdiction may not require wearing a helmet. For your safety, eTrikeCo recommends wearing a helmet and protective eye wear when operating your eTrike.

  • Page 5: Rou�Ne Inspec�On Before Ridin

    ROUTINE INSPECTION BEFORE RIDIN CAUTION To ensure optimal and safe performance of your eTrike, it is important to perform the following checks before every ride. Failure to do so could result in unsafe conditions, poor performance, and/or potential damage to your eTrike. Battery - Check the battery life indicator and charge, if needed.

  • Page 6: Opera�Ng Your Etrike

    OPERATING YOUR ETRIKE CAUTION Exercise due caution when operating your eTrike in inclement weather and where conditions on the road, sidewalk or other driving areas may be hazardous. Although your eTrike is weather-resistant, prolonged exposure to moisture can potentially cause minor, temporary shutdown in the vehicle’s circuitry. This interruption will self-correct once the eTrike is allowed to sufficiently dry out.
  • Page 7 OPERATING YOUR ETRIKE For NEUTRAL, move the switch to the middle to the letter (N), this will put the eTrike on neutral mode. III. PARKING SWITCH In addition to the Drive/Neutral/Reverse Switch, the eTrike comes with a parking switch on the right handler. This switch disable the throttle.
  • Page 8 OPERATING YOUR ETRIKE No Signal – The turn signal switch should be in the center OFF position when not in use. Left Turn/Lane Change – Before making a left turn or lane change, move the turn signal switch to the left . The front and rear left turn lights will blink. Move the turn signal switch back to the OFF position once you have completed your turn or lane change.
  • Page 9 OPERATING YOUR ETRIKE VIII. HEADLIGHT The headlight can be used whenever low visibility in natural light compromises the safe operati on of your eTrike. To turn the running light on, move the switch on the right hand to the middle position. To turn the headlight on, move the switch on the right hand to the far left.
  • Page 10 OPERATING YOUR ETRIKE • Squeeze the left or right hand brake fully and hold in place. • Remove the key from the ignition. To disengage the parking brake • Hold the hand brake strong enough to release the brake lever to the original position.

  • Page 11: Charging Your Etrike/Ba�Ery Informa�On

    CHARGING YOUR ETRIKE/BATTERY INFORMATION XIV. WINDSHIELD WIPER/WINDSHIELD WASHER To activate the wiper blade: Push the windshield wiper button on the left front panel. For windshield wiper spray: Push the green button located on the top part of the front panel. To fill the windshield washer: Push the lid located on the right side of the front panel, this will open a compartment.
  • Page 12 NEVER cover the charger while charging to allow for the dissipation of heat. If you encounter any difficulty charging your eTrike or experience unusual oc- currences in the charging process, immediately shut off the power and contact eTrikeco or authorized service vendor for service.
  • Page 13 CHARGING YOUR ETRIKE/BATTERY INFORMATION c. Open the cap located in the back of the eTrike to access the charging port.. d. Plug the receptacle (female) end of the charger power cable into the eTrike’s charging port. e. Plug the charger power cable into a standard household AC 110V outlet.
  • Page 14 CHARGING YOUR ETRIKE/BATTERY INFORMATION A solid green light on the charger box indicates you’re your eTrike is fully charged. The charger can be unpluged once the green light is displayed. III. BATTERY INFORMATION The lithium ion battery that comes with your eTrike can last approximately 1000 charges or 3 to 5 years with average use and proper care.

  • Page 15: Preventa�Ve Maintenance

    PREVENTATIVE MAINTENANCE All vehicles experience some level of wear over the course of operation. In addition to performing the Routine Inspection listed in this manual, it is recommended that you perform preventative maintenance to further ensure the optimal performance and service life of your vehicle, and for your safety.
  • Page 16 PREVENTATIVE MAINTENANCE The disc brake system includes brake fluid/oil and is engaged by squeezing the brake handles, where the brake fluid/oil reservoir is also located. It can be inspected and maintained as follows: Check the brake fluid/oil level in the reservoir. If the level falls below the bottom score line, add ONLY either DOT3 or DOT4 brake fluid/oil until it reaches the upper score line.
  • Page 17 PREVENTATIVE MAINTENANCE CAUTION Clean any spilled brake fluid/oil immediately as it can corrode painted surfaces, plastic, rubber parts, etc. Brake fluid/oil should always remain visible in the viewing window of the reservoir during the exhausting process. To insure this, add brake fluid/oil to the main cylinder at any time during the process.
  • Page 18 PREVENTATIVE MAINTENANCE V. REAR AXLE Inspect the rear axle and differential every week for proper function. Gear oil in the axle should be changed approximately every 650 miles. Add gear oil, if needed for proper lubrication. For cold weather, use 80w/90 GL-3 gear oil. For warm weather, use 85w/90 GL-3 gear oil.

  • Page 19: Etr100C - Overview - Steering/Controls

    ETR100C – OVERVIEW - STEERING/CONTROLS...
  • Page 20 ETR100C – OVERVIEW - STEERING/CONTROLS...

  • Page 21: Etr100C - Main Technical Parameters

    ETR100C – MAIN TECHNICAL PARAMETERS WARRANTY I. Main technical parameters of the scooter II. Main technical parameters of ba�ery III. Main technical parameters of motor IV. Main technical parameters of controller V. Charger main parameters...

  • Page 22: Warranty

    Your eTrike comes with a limited 1 year, non-transferable warranty from the date of purchase. If any component of the eTrike is defective or prevents safe and effective operation during the warranty period, please contact eTrikeCo immediately for service before operating the vehicle. Service and repair during the warranty period must be completed by eTrikeCo or an authorized party.
  • Page 23 (844) 874-5326 info@etrikeco.com www.etrikeco.com Follow and like us on Facebook, Instagram, Linkedin, Twitter and YouTube...
