eTrikeCo ETR300U Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

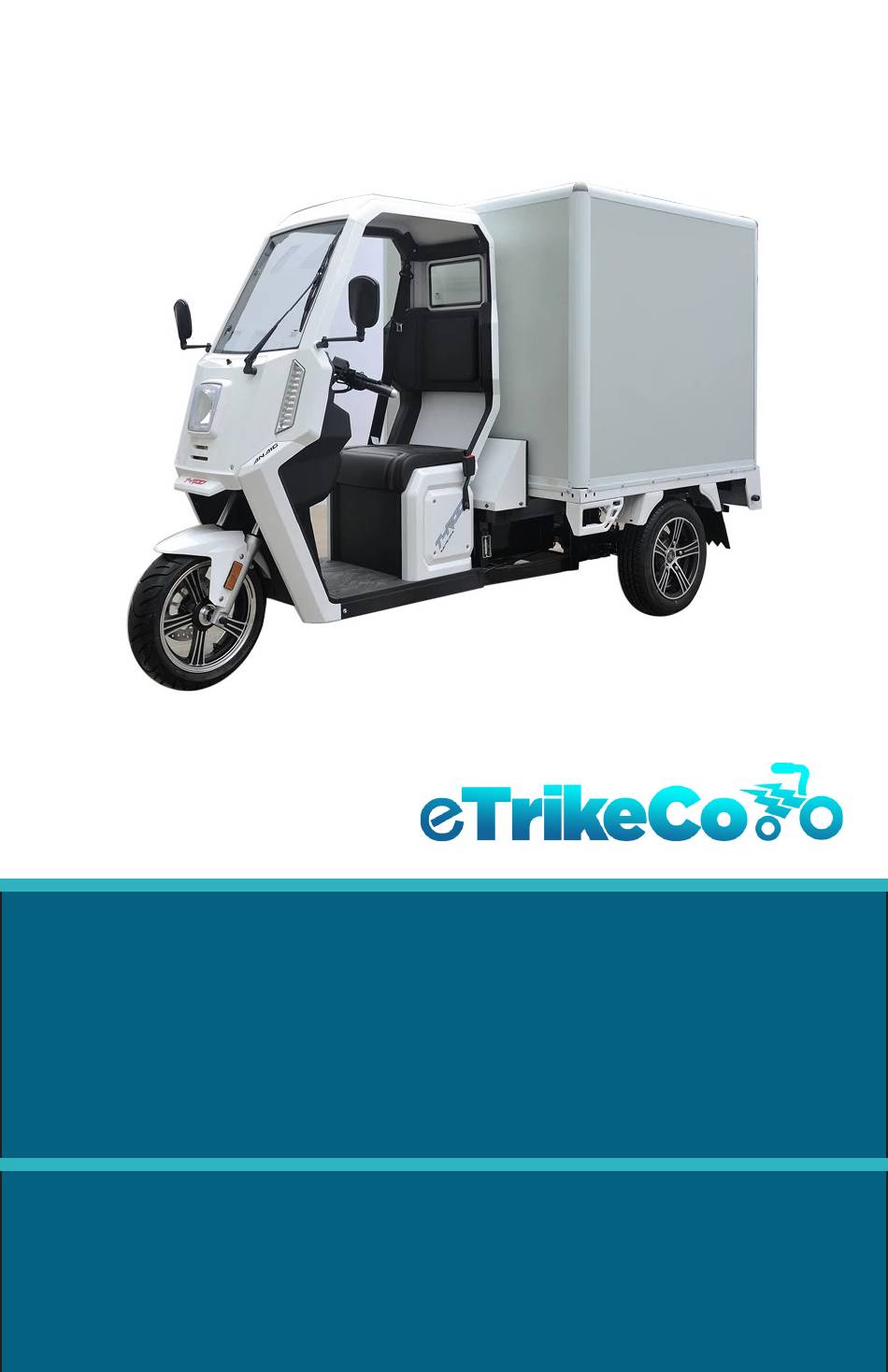

Go Where There Are No Limits
DO GOOD WHILE YOU GO
ETR300U
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETR300U and is the answer not in the manual?

Questions and answers

Dana R Cabana
April 12, 2025

Looking for a circuit breaker on my etr300 trike. The part number is FHAT FT47-63 50A. On the bottom part # 63211210

0

Subscribe to Our Youtube Channel

Related Manuals for eTrikeCo ETR300U

Summary of Contents for eTrikeCo ETR300U

  • Page 1 Go Where There Are No Limits DO GOOD WHILE YOU GO ETR300U OWNER’S MANUAL...
  • Page 2 ETRIKE USER’S MANUAL ETR300U IMPORTANT: NOTE: 1-844-874-5326 support@etrikecom.com www.etrikeco.com...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction General Warning Routine Inspection Before Riding Operating Your Etrike 5-9 Charging Your Etrike/Battery Information 10-12 Preventative Maintenance 13-16 ETR300U - Overview - Steering/Controls 17-18 ETR300U - Main Technical Parameters 19 Warranty...

  • Page 4: Introduction

    INTRODUCTION Congratulations on the purchase of your new eTrike. This manual is designed to give you the information that you need for the safe operation and maintenance of your eTrike. Please read it thoroughly before riding your eTrike. Your eTrike’s serial number is adhered underneath the VIN cap in the front interior panel. Please record it below in the event that your eTrike is lost or stolen.

  • Page 5: General Warning

    Laws in your jurisdiction may not require wearing a helmet. For your safety, eTrikeCo recommends wearing a helmet and protective eye wear when operating your eTrike. Proper helmets must meet standards set by the Consumer Product Safety Commission (CPSC).

  • Page 6: Routine Inspection Before Riding

    ROUTINE INSPECTION BEFORE RIDING CAUTION Battery - Check the battery life indicator and charge, if needed. Your eTrike can travel a max range of 50 miles on a full charge. To maximize use per trip, it is recommended you do not allow the battery capacity to decrease to less than 20%.

  • Page 7: Operating Your Etrike

    OPERATING YOUR ETRIKE CAUTION IGNITION SWITCH To engage the electric motor and enable the eTrike to be driven, insert the key into the ignition and turn to the right or ON position. The key cannot be removed while it is in the ON position. To disengage the electric motor, turn the key to the left or OFF position.
  • Page 8 OPERATING YOUR ETRIKE III. THROTTLE CONTROLLER – RIGHT HANDLE The throttle controls the flow of electrical power to the motor which propels the eTrike. Grasp the throttle and roll it backwards/towards you to propel the eTrike. Release the throttle to stop the eTrike from continuing to propel. CAUTION The speed of the eTrike can be regulated by adjusting the amount of roll of the throttle.
  • Page 9 OPERATING YOUR ETRIKE SLOWING DOWN/BRAKING In the United States, bicyclists are required to use a hand signal to alert surrounding traff ic of their intention to slow down or stop. Your eTrike is equipped with rear braking lights which activate when you engage either hand brake, and which may be used in place of the hand signal. If the rear braking lights are not functional, you should have the eTrike serviced immediately for repair.
  • Page 10 OPERATING YOUR ETRIKE PARKING/PARKING BRAKE There are two options of parking brakes: Engaging the brake lever on the left hand brake. To engage the parking brake lever, your trike must not be in use to insure no movement.: • Once the eTrike is brought to a full stop, turn the key in the ignition to the OFF position.
  • Page 11 OPERATING YOUR ETRIKE XIII. WINDSHIELD WIPER AND WASHER To activate the wiper blade, push the windshield wiper switch on the right front panel. For the windshield washer, press the button also on the right front panel. XIV. STORAGE Front Dashboard Storage Seat Storage Besides the cargo box, there are two small storage spaces on the eTrike: Underneath the seat.

  • Page 12: Charging Your Etrike/Battery Information

    If you encounter any diff iculty charging your eTrike or experience unusual oc- currences in the charging process, immediately shut off the power and contact eTrikeco or authorized service vendor for service. Avoid getting any liquid around the battery as this can potentially cause leakage, overheating smoke and possible explosion.
  • Page 13 CHARGING YOUR ETRIKE/BATTERY INFORMATION Locate the charging port on the right side of the seat and open the protection lid. Plug the charger power cable into a standard household AC 110V outlet. Plug the receptacle (female) end of the charger power cable into the eTrike’s charging port until the lever in the charger engages and clicks.
  • Page 14 CHARGING YOUR ETRIKE/BATTERY INFORMATION Before plugging the charger to the eTrike, a solid green light will light on the charger box indicating that there’s current in the charger coming from the standard household AC 110V outlet. Once the charger is plugged into the eTrike, a second intermittent green light on the charger box and an intermittent red light on the indicator above the charging port, means that the battery is not fully charged, but that there is a proper connection and the battery is receiving an electrical charge.

  • Page 15: Preventative Maintenance

    PREVENTATIVE MAINTENANCE All vehicles experience some level of wear over the course of operation. In addition to performing the Routine Inspection listed in this manual, it is recommended that you perform preventative maintenance to further ensure the optimal performance and service life of your vehicle, and for your safety.
  • Page 16 PREVENTATIVE MAINTENANCE If the brake fluid/oil changes color, replace it with new braking fluid/oil. Check the friction plate and brake disc wear condition. When any of the friction plates is worn down to the marking line of 3mm or 3.5mm, it must be replaced in pairs. The disc brake thickness and wear limits may diff er slightly from eTrike model to model.
  • Page 17 PREVENTATIVE MAINTENANCE Rear shock absorbers – Inspect the rear shock absorbers after every 125 miles of use. Replace the shock absorbers immediately if looseness or cracks are found. TIRES AND WHEELS Inspect the tires for cuts, embedded objects or other conditions/ damage that can compromise the tires’...
  • Page 18 PREVENTATIVE MAINTENANCE NOTE: Storing your battery in temperatures below 32 degrees Fahrenheit or above 97 degrees Fahrenheit can limit your battery life. Charger Storage When not in use, store the charger in a dry, cool and clean place, taking care to insure the ventilation holes do not become clogged by dust or other debris.

  • Page 19: Etr300U - Overview - Steering/Controls

    ETR300U - OVERVIEW - STEERING/CONTROLS Part Name Part Name Instrument Display Ignition Switch Brake Fluid Reservoir Windshield Washer Button Hazard Lights Switch Windshield Washer Fluid Reservoir Hand Brake Book Hook Lights Switch Dashboard Storage Throttle Controller Media Player Horn Turn Signals Switch Windshield Wiper Switch Bright Light Switch Forward/Reverse Switch Parking Brake Lever...
  • Page 20 ETR300U - OVERVIEW - STEERING/CONTROLS Part Name Part Name Speed Indicator (km/h) Graphic Battery Indicator Speedometer (km/h) Decrease Volume Button Current Tempeture (Celcius) Increase Volume Button Sound System Volume USB Port Multimedia Mode Media On/Off Button Driving Mode Media Previous Button Odometer (km) Media Next Button Trip Odometer (km) Mode Button Battery Indicator in Voltage Play/Pause Button...

  • Page 21: Etr300U - Main Technical Parameters

    ETR300U - MAIN TECHNICAL PARAMETERS Main technical parameters of the eTrike Product size: 9.3 x 3.8 x 5.3 Feet Wheelbase: 6 Feet Weight: 730 Pounds Tire specifications: Front: 130/60-13 Tubeless Rear: 135/70-12 Tubeless Maximum load: 1500 Pounds Design top speed: ≤ 28 Miles Per Hour Range: Up to 50 Miles Maximum climbing: ≤ 20° Braking performance (12.5 miles per hour): Dry: ≤ 3 feet; Wet: ≤ 9 feet II. Main technical parameters of battery Battery type: 18650 lithium-ion batteries...

  • Page 22: Warranty

    If any component of the eTrike is defective or prevents safe and effective operation during the warranty period, please contact eTrikeCo immediately for service before operating the vehicle. Service and repair during the warranty period must be completed by eTrikeCo or an authorized party.
  • Page 23 (844) 874-5326 support@etrikeco.com www.etrikeco.com...
