- Page 1 KWFOR2 FORD FOCUS 2011-2015 INSTALLATION MANUAL V1.0321 This dash image is a visual representation for display purposes only. The information provided in this document is subject to change without notice due to changes and/or improvements to the product/s. www.topvehicletech.com...

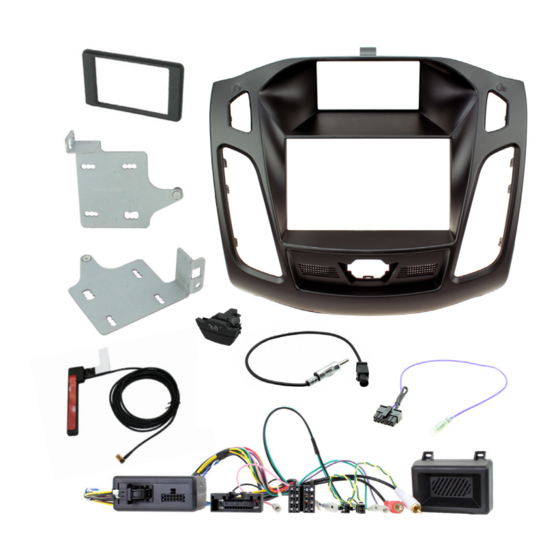

- Page 2 The KWFOR2 installation kit allows for the retention of the vehicle’s steering wheel controls and helps maintain the original aesthetic of the interior when installing a new car stereo. The KWFOR2 gives you everything you need for a complete install in one box. The components of this kit are compatible for the Ford Focus (2011- 2015) with Visteon factory stereos.
- Page 3 FITTING GUIDE STEREO REMOVAL 1. Unclip the small trim panel located directly underneath the main fascia panel. Further unclip another plastic panel found underneath to uncover 2x torx screws. 2. Remove the 2x torx screws, and using a panel removal tool, pry away the entire main fascia panel, disconnecting the hazard switch connector in the process.
- Page 4 FITTING GUIDE STEREO INSTALLATION CONT’D. 5. Attach the 4-pin speaker module to the equivalent connector on the steering wheel harness. 6. Attach the red & white RCA connectors from the steering wheel harness to the back of the new stereo. 7.
- Page 5 WIRING DIAGRAM Flying Wires Pink - Speed Pulse Green - Park Brake Purple - Reverse Gear Blue - Antenna Remote Vehicle Specific Connector [OEM Specific] Connect to OEM connector from vehicle ISO Connector Connect to aftermarket stereo White/Red RCA Connectors (AUX) Connect to aftermarket stereo Speaker Module Connector [4-pin]...
- Page 6 TECHNICAL ASSISTANCE If at any point you experience any problems and need any assistance before, during or after the installation process, please contact us via : Phone: 01420 470 605 E-Mail: help@topvehicletech.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.topvehicletech.com website.
