Step 3 - Hydraulic Plumbing

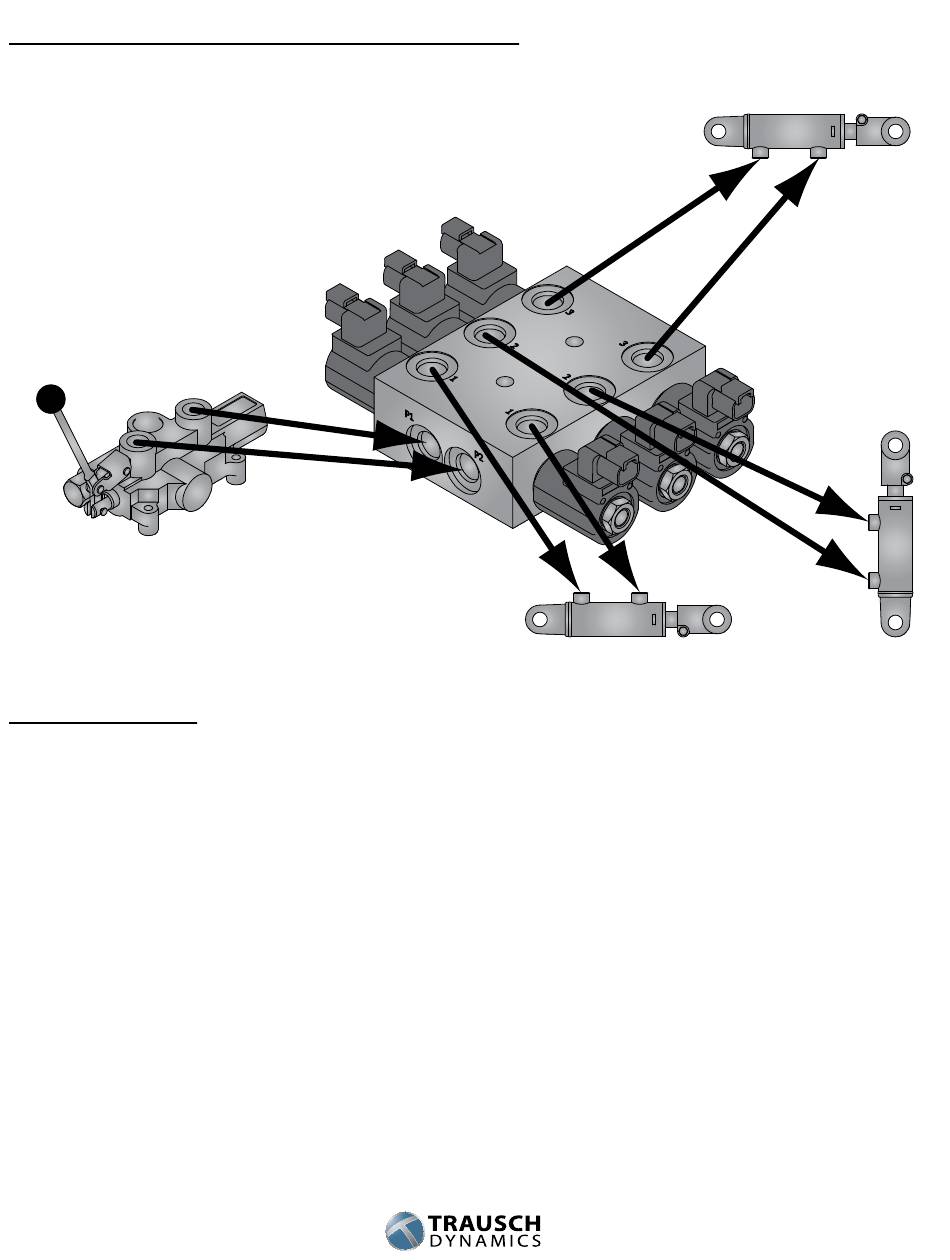

Follow the plumbing schematic as illustrated. Hoses are not provided as hose lengths vary per application.
Existing Tractor
Remote Valve

Operation

This poppet selector valve operates by energizing TWO solenoids when a toggle switch is activated.
The cylinder located on the ports labeled "1" will operate when the corresponding toggle switch is activated.
The cylinder located on the ports labeled "2" will operate when the corresponding toggle switch is activated.
The cylinder located on the ports labeled "3" will operate when the corresponding toggle switch is activated.
Directional control is controlled by the existing tractor remote valve located in the cab. This valve does not control direction of
flow. The flow coming into "P1" or "P2" determines the direction of flow in the circuit.
CAUTION: Do not loosen or remove any fittings or the valve cartridge while there is pressure in the system or a load is being held
up by the valve.
