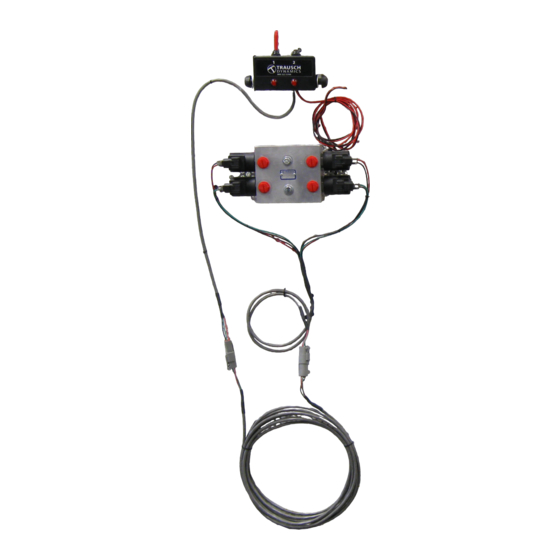

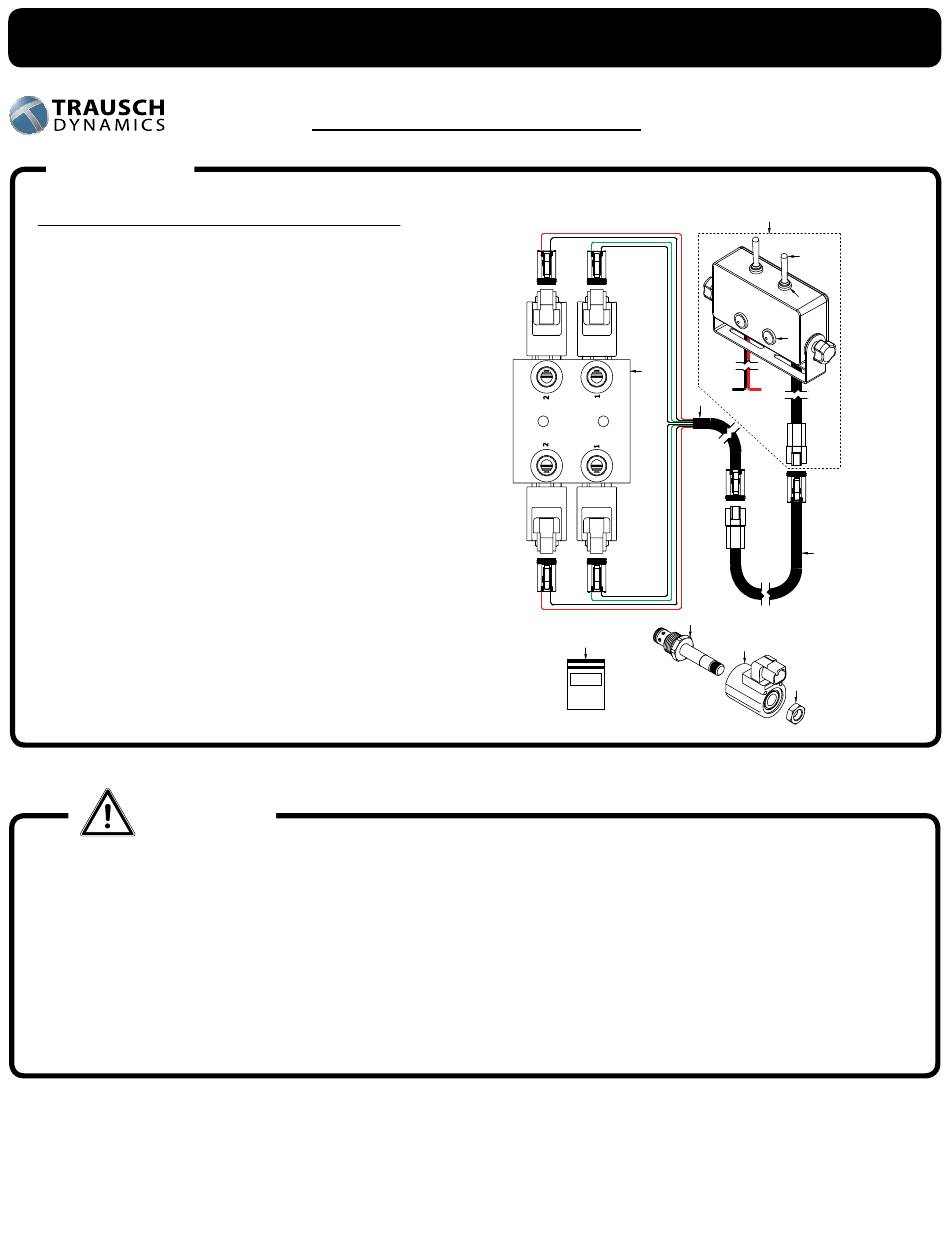

PoppetPLUS 2 Valve Kit - 15 GPM
Parts List
Part
Qty.
Description
A
1
Manifold
B
4
Valve, 2P2W, Poppet
C
4
Solenoid
D
4
Solenoid Nut
E
1
Fuse Kit
F
1
Solenoid Wire Harness
G
1
20' Extension Wire Harness 9502741
H
1
Switch Box/Wire Assembly 9502746
I
2
Toggle Switch
J
2
Toggle Boot
K
2
Indicator Light
Warning
To avoid serious injury or death:
•
Park the equipment on level ground, apply the parking brake, disengage running equipment, lower all implements to the
ground, shut off the engine and remove the key.
• Read and comprehend the tractor and implement or attachment owner's manual before installing or operating this valve.
• Always wear safety glasses and proper personal protection equipment before and during installation of this valve.
• Pressurized hydraulic fluid can cause serious injury. The forces created can penetrate skin. Relieve all system pressure
before disconnecting lines. Be sure that the equipment is in a "zero-energy" state. Before applying pressure and flow to
this valve, be sure that all connections are tight and the hydraulic hoses are not damaged in any way. Hydraulic fluid can
leak from pin-holes and cause injury. Visually inspect all connections and never use your hands or fingers to inspect for
leaks. If you are injured by injection of hydraulic fluid, see a doctor. Failure to do so may cause serious injury or death.
Installation Guide
Order #
7068108
7010128
7013763
7013770
9502615
9502740
5056117
5056118
5056138
A
-
Power Source
F
B
E
C
9502615
Fuse Kit
9502732
Part #
H
I
J
K
+
G
D
Document # 8889014
Advertisement
Table of Contents
Related Manuals for TRAUSCH DYNAMICS PoppetPLUS 2
Summary of Contents for TRAUSCH DYNAMICS PoppetPLUS 2
- Page 1 PoppetPLUS 2 Valve Kit - 15 GPM 9502732 Part # Installation Guide Parts List Part Qty. Description Order # Manifold 7068108 Valve, 2P2W, Poppet 7010128 Solenoid 7013763 Solenoid Nut 7013770 Fuse Kit 9502615 Solenoid Wire Harness 9502740 20’ Extension Wire Harness 9502741...
- Page 2 Step 1 - Valve Mounting Note: Ports in the valve are #8 SAE o-ring. DO NOT use Teflon tape, rector seal, liquid anaerobic, pipe dope etc. on the threads. NO THREAD SEALANT IS REQUIRED. It is important to pre-lube the o-rings with hydraulic fluid before installing the fittings into the valve body.
- Page 3 Step 3 - Hydraulic Plumbing Follow the plumbing schematic as illustrated. Hoses are not provided as hose lengths vary per application. Existing Tractor Remote Valve Operation This poppet selector valve operates by energizing TWO solenoids when a toggle switch is activated. The cylinder located on the ports labeled “1”...
- Page 4 Maintenance As with any piece of equipment, periodic maintenance will help provide longer life and trouble-free operation of your new PoppetPLUS system. Periodically inspect those electrical connections which are exposed to the elements for signs of cor- rosion or other damage. Replace any terminals that look as if they might fail in the field. Inspect the cable connecting the switch to the valve.
