Step 1 - Valve Mounting; Step 2 - Electrical Installation - TRAUSCH DYNAMICS PoppetPLUS 3 Installation Manual

Step 1 - Valve Mounting

Note: Ports in the valve are #8 SAE o-ring. DO NOT use Teflon tape, rector seal, liquid anaerobic, pipe dope etc. on the threads.
NO THREAD SEALANT IS REQUIRED. It is important to pre-lube the o-rings with hydraulic fluid before installing the fittings into
the valve body. Valve mounting is unrestricted. Mount the valve in any position. Be sure that the tops of the solenoids does not
contact metal. The two mounting holes accept 3/8" bolts. The bolts should be at least 2-1/2" long to clear the manifold.

Step 2 - Electrical Installation

Disconnect the negative battery terminal before installing.
CAUTION: The valve should be mounted and connected to the wiring harness before the control switch is connected to the power
source. This will prevent accidental shorting of the control wires to ground.
Attach the red power wire to a keyed power source in your fuse-box. Make sure that the source of power is on only when the ma-
chine is in operation. This will prevent unwanted activation and possible battery drain. The black ground wire may be connected
to the equipment frame or engine block. Metal-to-metal contact is required for a good ground. Paint or powder-coating may
have to be removed to ensure a metal-to-metal ground.
If a fused 10-20 amp direct power source is not available on the equipment you are installing this valve control, use the included
fuse kit (9502615). Use this kit to adapt the power connection to the keyed equipment fuse block. Instructions are included with
the fuse kit. It is very important to fuse this valve control. Failure to fuse this valve control can cause damage and voids the war-
ranty.

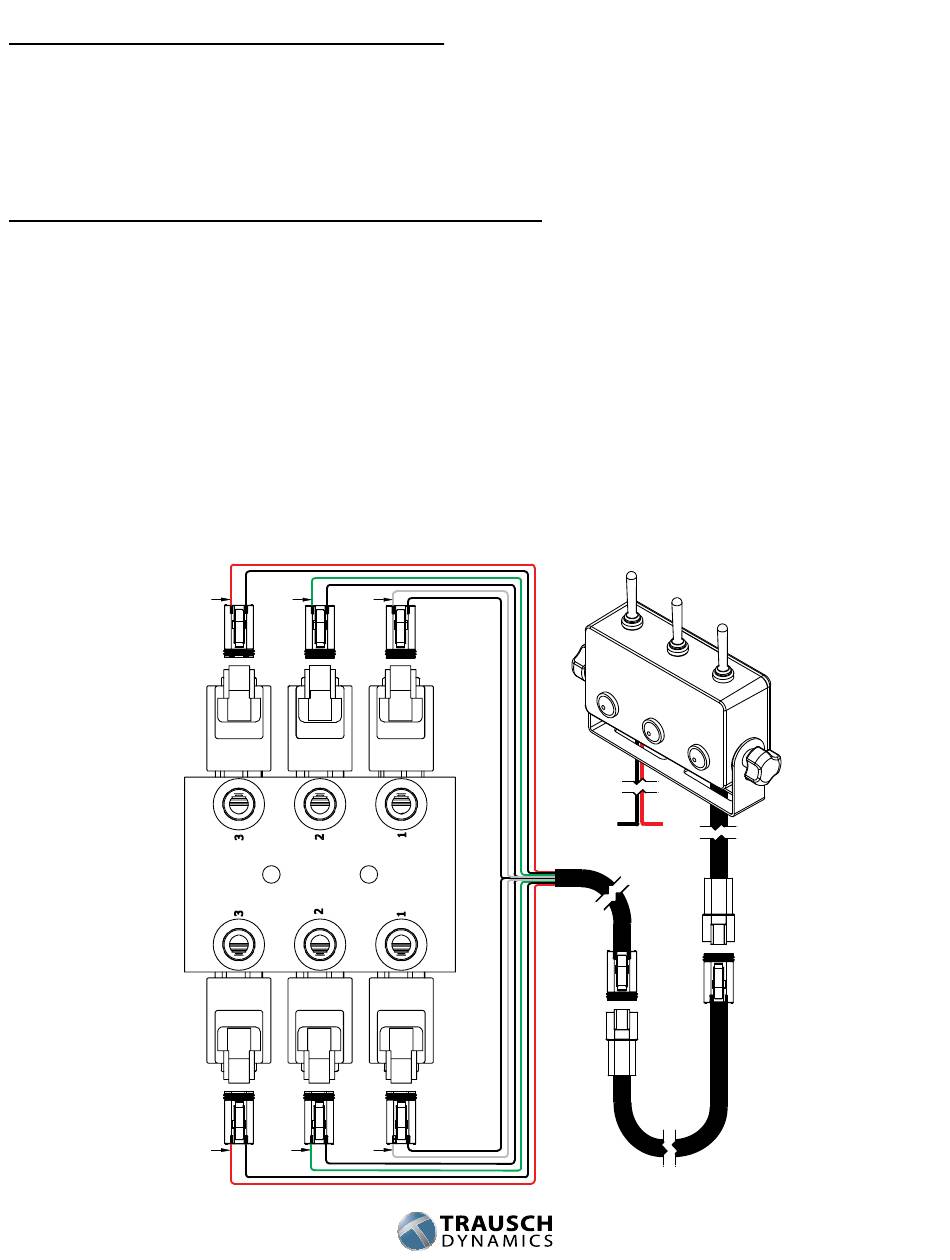

RED GREEN WHITE
RED GREEN WHITE
- +
Power Source
