  • Page 1 ACTIVE 207 USER MANUAL...
  • Page 3 FEATURES ACTIVE 207 0-240 Second Delay Time Setting Ÿ Daily Alert Ÿ Arm/Disarm Through password Ÿ Changeable User password Ÿ Auto Arming Provision For Zones Ÿ 24 Hrs Panic/Tamper Zone Ÿ Immediate And Time Delay Zones Available Ÿ Individual Zone password Option Ÿ...

  • Page 4: Operator Controls

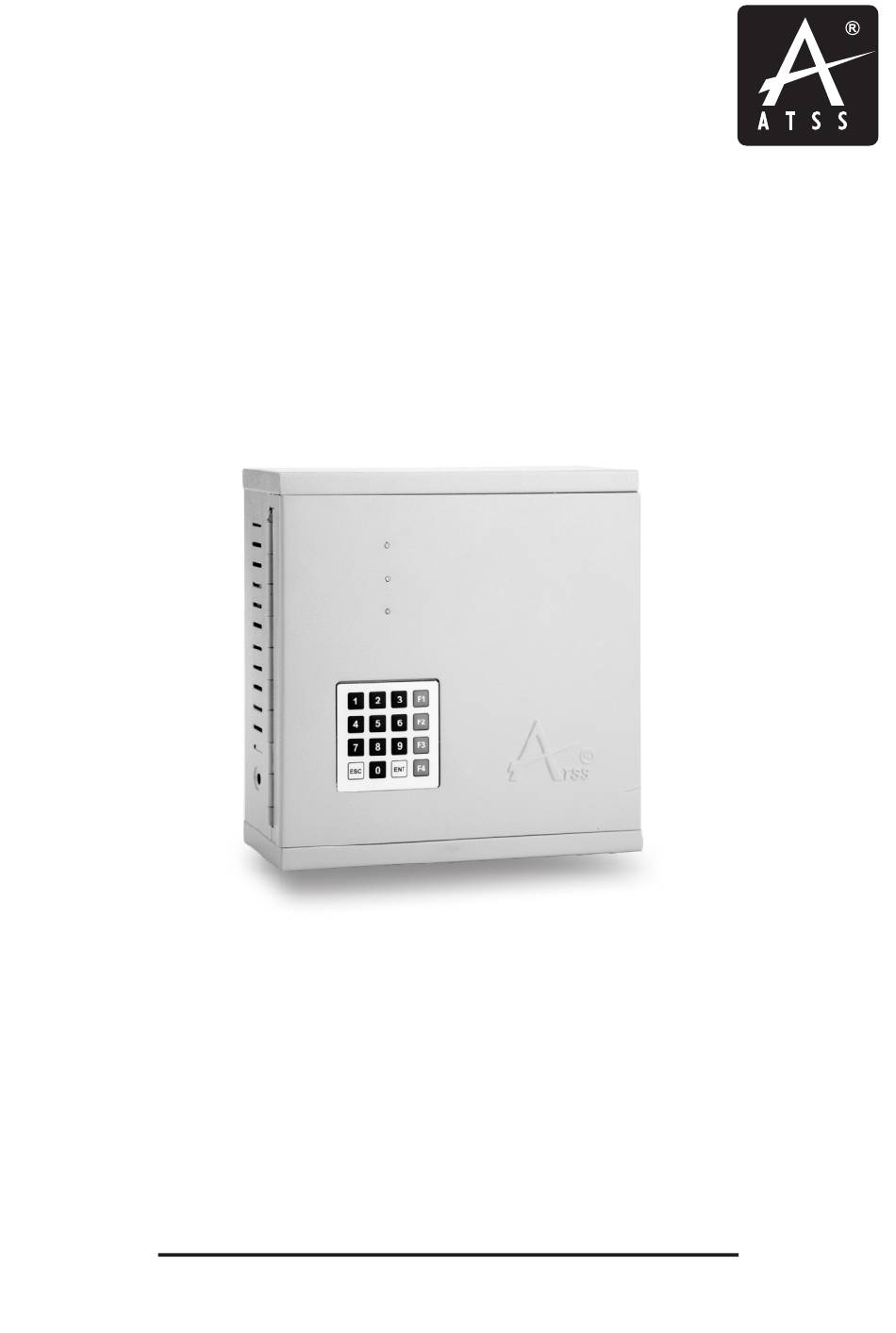

    ACTIVE 207 Introduction About your alarm system… Active 207 is a 2 Zone keypad based Burglar/Intruder alarm system which provides Comprehensive and flexible protection for domestic or commercial premises. Zone activation and deactivation are done through keypad by entering assigned passwords.
  • Page 5 USER MANUAL ACTIVE 207 Operator Controls ...and indicators 1. F1- Activate Zone 1 Press and enter Zone 1's six digit password “******” to activate Zone 1. 2. F2- Activate Zone 2 Press and enter Zone 2's six digit password “******” to activate Zone 2 3.
  • Page 6 USER MANUAL ACTIVE 207 Operator Controls ...and indicators 8. LED 1 Color Indications: Green - Power indication Red- Function condition indicator. Orange – Low battery indication. Off state – Panic/Tamper alert indication. 9. LED 2 color indications: Red - Zone 1 in armed state.

  • Page 7: Don't Forget

    USER MANUAL ACTIVE 207 Arming …zone 2 Press F2 and enter six digit password “******” of Zone 2. Ÿ It will take 60 seconds to arm till then Zone 1 indication LED Ÿ will be blinking in Green color. Once the Zone 2 is Armed it will start glowing in RED color.
  • Page 8 USER MANUAL ACTIVE 207 Disarming …zone 2 Enter Zone 2 six digit password “******” directly to Disarm. Ÿ Zone 2 indication LED 3 will change to green color indicating Ÿ that Zone is Disarmed. List of …menus Press F4 then press the particular Zones password “******” &...
  • Page 9 USER MANUAL ACTIVE 207 Time …delay You can set time delay from 0-240 seconds. For example if you set time delay 030 seconds for Zone 1,Zone 1 will take 030 seconds delay time when it is opened, after 030 seconds only siren will start ringing.
  • Page 10 USER MANUAL ACTIVE 207 Siren …out timings Modify siren out timing. Press F4, LED1 will change to RED color, then Enter Ÿ particular Zone six digit “******”password which you want to access. Now that particular Zone indication LED will change to RED Ÿ...

  • Page 11: Specification

    SPECIFICATION ACTIVE 207 POWER SUPPLY Max Power Consumption 36 Watts AC Main Supply 220-240 V AC /50 Hz Transformer-Step down 230 V AC/50 Hz(Pri) 18 V AC /2 A (Sec) BATTERY Battery is fully recommended Battery type Lead Acid Rechargeable Battery Max Recharging Voltage-Input 13.7 V DC...

  • Page 12: Installation Diagram

    INSTALLATION DIAGRAM ACTIVE 207 MAIN VOLT INSERT...

  • Page 13: How To Obtain Warranty Service

    ACTIVE 207 WARRANTY CERTIFICATE Customer Name : Invoice No : Date : Signature Serial No : How To Obtain Warranty Service? You must present your Warranty Card and a copy of your original sales receipt to validate warranty coverage. DO NOT lose your receipt.
