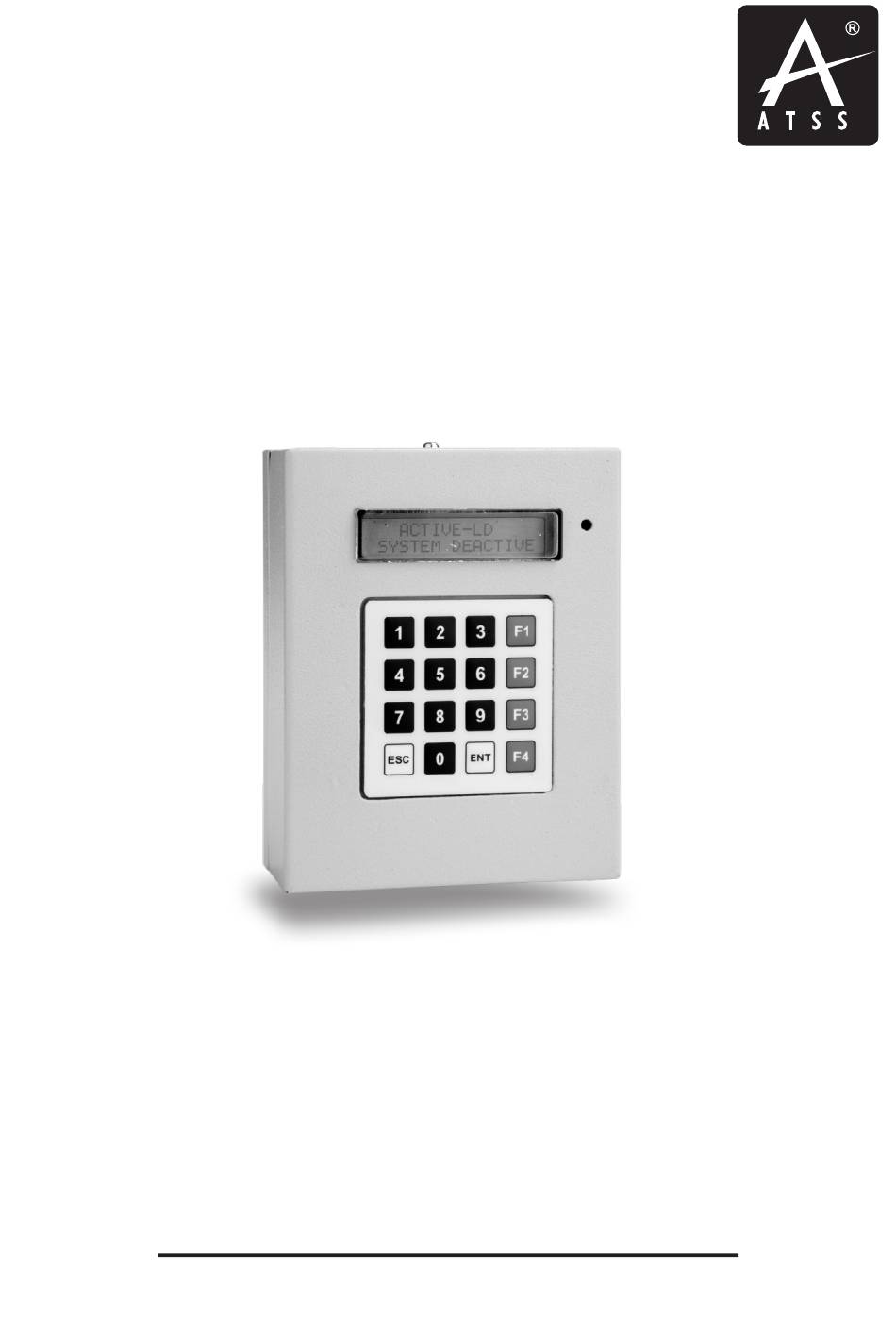

  • Page 1 ACTIVE LD USER MANUAL...
  • Page 3 FEATURES ACTIVE LD 2 Trigger Available NO, NC (Normally Open/Close) Ÿ On Board Keypad With 32 Bit LCD Ÿ Arm/Disarm Through password Ÿ Changeable User password Ÿ Trigger Can Be Switched In 3 Modes Of Operation Ÿ Instant Call Alert For Trigger Open Ÿ...

  • Page 4: Key Functions

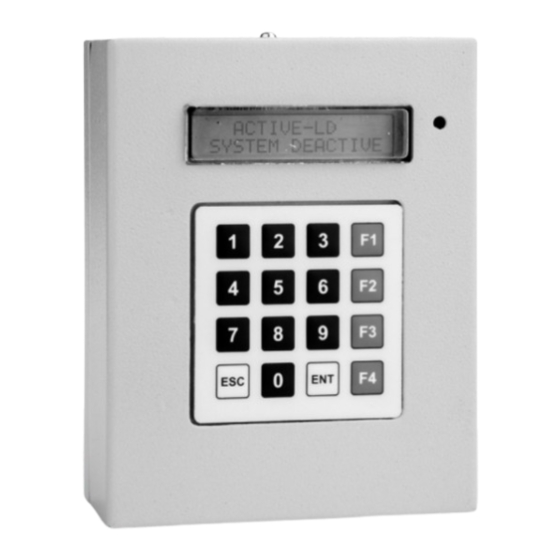

    USER MANUAL ACTIVE LD Introduction Landline dialer is electronic devices with 2 trigger and 3 modes of operation with 32 character LCD display.It instantly dials to the stored numbers when its triggered (open/close). Key Functions Operating Function Activate the dialer...

  • Page 5: Activation And Deactivation

    USER MANUAL ACTIVE LD Activation and Deactivation <six digit password> ****** Enter Password To activate the dialer press ****** and enter the six digit password ACTIVE-LD “******” and press SYSTEM ACTIVE Enter Password ****** To de-activate press the password directly “ * * * * * * ”...

  • Page 6: Menu Options

    USER MANUAL ACTIVE LD MENU OPTIONS List of Menus Edit Password Set Dial Type Set Trigger Source Trigger Condition Phone Numbers Repeat Dial Count Restore Factory Default Delay Before Voice Settings Record Voice Message Software Version Replay Voice Message Count...
  • Page 7 USER MANUAL ACTIVE LD ACCESSING THE USER MENUS TO ACCESS THE USER OPTIONS: This option enables you to Enter six digit password EDIT PASSWORD Edit Password Press Option to edit password. Enter the new six digit password Ÿ Edit Password “******”.
  • Page 8 USER MANUAL ACTIVE LD This option enables you Enter six digit password STORE PHONE NUMBERS Enter Phone Number To store next number Press Option to store the phone numbers Press ENT Key then enter the Ÿ Phone Number : 01...
  • Page 9 USER MANUAL ACTIVE LD This option enables you to Enter six digit password RECORD VOICE MESSAGE Record Voice Message 1 Record Voice Message 2 Press Option to Record Voice Message. Press key 1 to record voice Ÿ RECORD VOICE MSG...
  • Page 10 USER MANUAL ACTIVE LD This option enables you to Enter six digit password SET DIAL TYPE set dial type To store next number Press Option to Set Dial Type Two Types of dial type are Ÿ available Set Dial Type...
  • Page 11 USER MANUAL ACTIVE LD This option enables you to Enter six digit password SET REPEAT DIAL COUNT Repeat dial count set repeat dial count using keys Press Option to Set Repeat dial count: Press ENT key and then enter Ÿ...
  • Page 12 USER MANUAL ACTIVE LD This option enables you to Enter six digit password VIEW THE SOFTWARE VERSION Software Version Press Option to View the Software Version Press key to display the Ÿ SW VER 1.1.06 software version.. NOTE: When tamper switch is released you will hear beep sound.

  • Page 13: Specification

    SPECIFICATION ACTIVE LD POWER SUPPLY Maximum Power Consumption 12 Watts DC /AC Main Supply 12-24 V/ 1 Amps Minimum Phone Line Voltage 60-65 V ZONES < 500 Millisecond Zone Response Time < 1 kilo Ohm For Normally Closed Zone Loop Resistance...

  • Page 14: Installation Diagram

    INSTALLATION DIAGRAM ACTIVE LD...

  • Page 15: How To Obtain Warranty Service

    ACTIVE LD WARRANTY CERTIFICATE Customer Name : Invoice No : Date : Signature Serial No : How To Obtain Warranty Service? You must present your Warranty Card and a copy of your original sales receipt to validate warranty coverage. DO NOT lose your receipt.
