ACTIVE 1O8
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVE 108 and is the answer not in the manual?

Questions and answers

Related Manuals for ATSS ACTIVE 108

Summary of Contents for ATSS ACTIVE 108

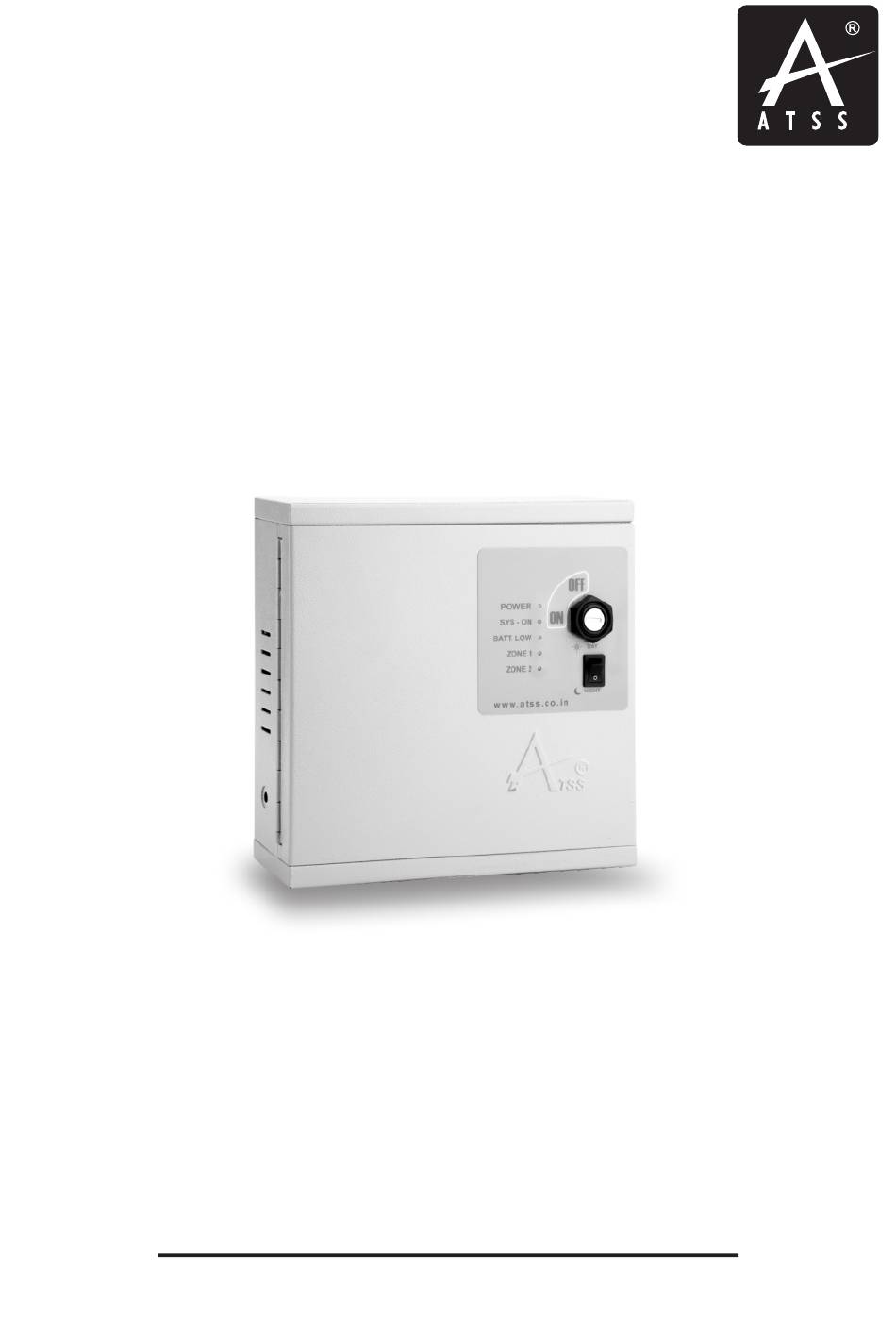

  • Page 1 ACTIVE 1O8 USER MANUAL...
  • Page 3 FEATURES ACTIVE 1O8 30/60 Second Delay Time Setting Ÿ Daily Alert Ÿ Day/Night Mode Arming Ÿ One Delay Zone, One Immediate Zone Ÿ Instant Siren Alert For Zone Opens Ÿ LED Indicators For Individual Zone Status Ÿ Two Sirens With Tamper Provision Ÿ...
  • Page 4 ACTIVE 1O8 Introduction About your alarm system… Active 108 is a 2 Zone key based Burglar/ Intruder alarm system which provides Comprehensive and flexible protection for domestic or commercial premises. The system has two modes of operation,Day mode & Night mode.
  • Page 5 USER MANUAL ACTIVE 1O8 …to change modes? To change Modes, · First place the key in OFF position. · Then place switch to the mode which you want. (You will hear a beep sound while changing) · Now change the key position to ON, to Arm the system in mode which you kept.

  • Page 6: Don't Forget

    USER MANUAL ACTIVE 1O8 DON'T FORGET ...onfirmation alert Once you have Armed the Zones, after 60 seconds delay time, you will hear a confirmation siren sound for few seconds acknowledging that Zones have been Armed properly. Disarm the ...system To Disarm the Zones insert key and change it to OFF Ÿ...
  • Page 7 USER MANUAL ACTIVE 1O8 Remote ...functions A - ARM the system B - PANIC C - RELAY CONTROL R E M O T E D - DISARM the system...

  • Page 8: Specification

    SPECIFICATION ACTIVE 1O8 POWER SUPPLY Max Power Consumption 36 Watts AC Main Supply 220-240 V AC /50 Hz Transformer-Step down 230 V AC/50 Hz(Pri) 18 V AC /2 A (Sec) BATTERY Battery is fully recommended Lead Acid Rechargeable Battery Battery type 13.7 V DC Max Recharging Voltage-Input 12 V DC/7 AH...

  • Page 9: Installation Diagram

    INSTALLATION DIAGRAM ACTIVE 1O8 MAIN VOLT INSERT...

  • Page 10: How To Obtain Warranty Service

    ACTIVE 108 WARRANTY CERTIFICATE Customer Name : Invoice No : Date : Signature Serial No : How To Obtain Warranty Service? You must present your Warranty Card and a copy of your original sales receipt to validate warranty coverage. DO NOT lose your receipt.
