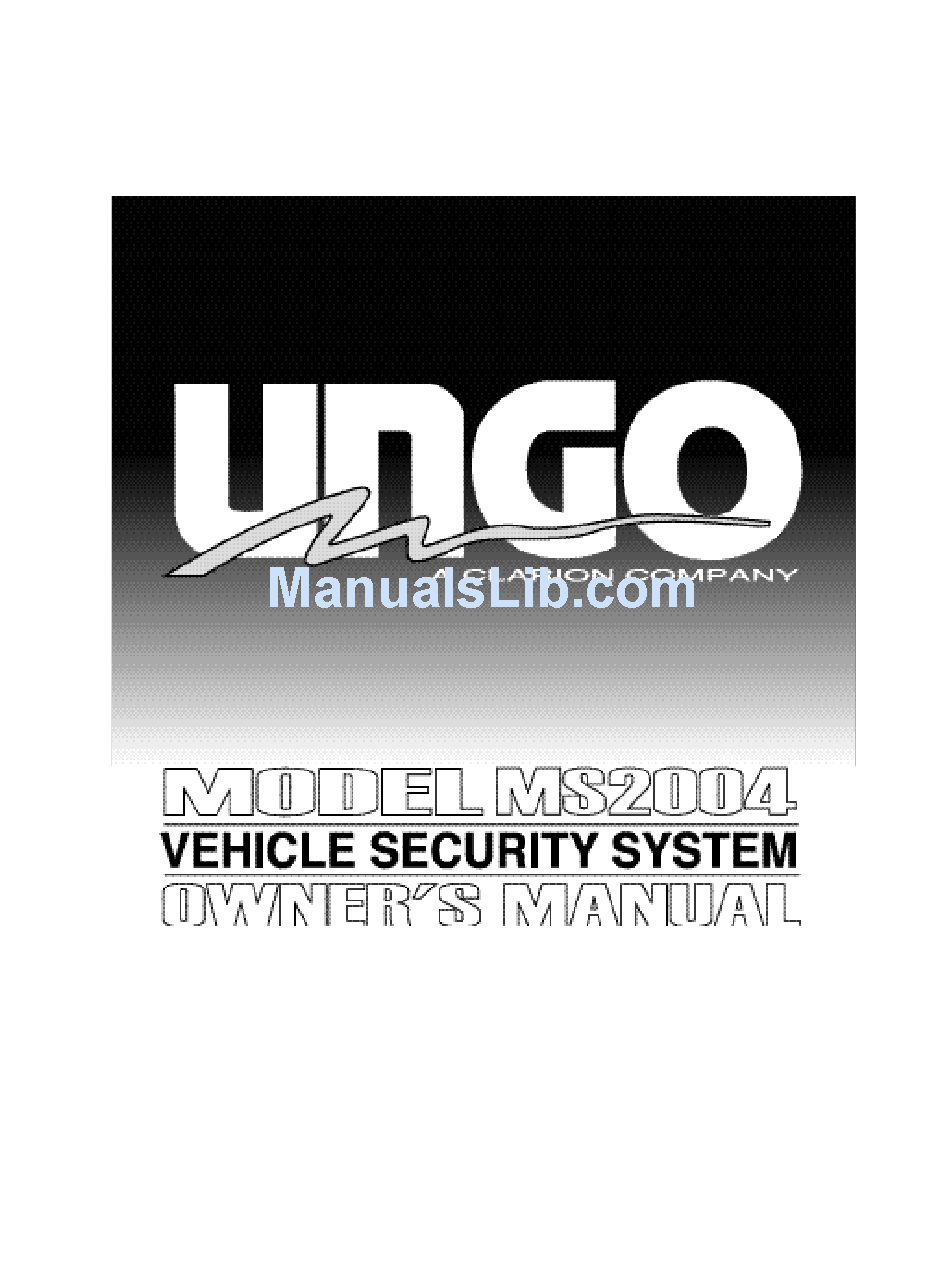

Summary of Contents for Clarion Ungo MS2004
- Page 2 ongratulations on your purchase of this Ungo System. Please read this manual thoroughly to familiarize yourself with your system’s components and operation. Discuss any questions you might have with your installing dealer. Record the serial number of your Ungo system and keep all dealer records and receipts.
-
Page 3: Table Of Contents
Note: Certain features described in this manual may require additional parts and/or labor. Also, some features of the Ungo MS2004 system have selectable options that must be activated or programmed during the system’s installation. These items will be identified in the following sections. Your Authorized Ungo Dealer will be... -
Page 5: About Your Ungo Security System
Protect both you and the contents of your vehicle with features such as panic mode, dome light illumination*, and ignition controlled door locking*. Optional Features Each Ungo MS2004 System comes with: • Main Unit - the “brain” of the system. • Two 4-Button Remote Transmitters •... -
Page 6: Remote Transmitters
Remote Transmitter Layout Button 1 Button 3 The Ungo MS2004 comes with 2 multi-function Remote Transmitters used to control nearly all of the system’s features. Each time a transmitter button is pressed, the LED will flash to indicate that a transmission is taking place. -
Page 7: Battery Replacement
Adding a New Transmitter into the System The Ungo MS2004 has the ability to recognize up to four individual Remote Transmitters. If the vehicle is used by multiple drivers, each can have their own Remote Transmitter. -
Page 8: Basic Features
Basic Features Remote Arming When Armed, the system monitors and protects 4 independent areas, or zones, including the doors, hood/trunk, shock sensor and optional sensor. To Arm the System: 1. Turn off the ignition. 2. Press Button 1. • The siren/horn will chirp once.* •... -
Page 9: Remote Disarming
To Bypass the sensors: 1. After arming the system, press Button 1 again on the Remote Transmitter within 5 seconds. • The siren will chirp 5 times, indicating the sensors have been bypassed. 2. The sensors will remain bypassed until the next time the system is armed. Remote Disarming To Disarm the System: Press Button 2. -
Page 10: Arming Mode Selection
Arming Mode Selection Your system can be set in one of the following Arming Modes: • Passive (automatic) Arming with chirp confirmation • Active Arming (by Remote Only) • Passive (automatic) Arming without chirp confirmation To set the Arming Mode: 1. -
Page 11: Coded Emergency Override
To enter Panic Mode: 1. Press and hold Button 1 for 3 seconds. • The siren will sound. • The doors will unlock. 2. Press Button 1 again to stop panic and place system into the Armed state. 3. Press Button 2 to stop panic and place system into the Disarmed state. If Panic Mode is not stopped by the Remote, it will automatically time out after 40 seconds, and the system will return to its prior Armed/Disarmed state. -
Page 12: Automatic System Rearming
6. Enter the code again and hold for 10 seconds on the last press. • The siren will chirp 3 times. • The parking lights will flash 3 times. • The LED will flash a number of times equal to the new code. 7. -
Page 13: Other Features Valet Mode
Other Features Valet Mode Allows you to temporarily disable the security system when the car is being service or turned over to a parking attendant. To turn Valet Mode on or off: 1. Turn on the ignition. 2. Press and hold the override switch. 3. -
Page 14: Dome Light Control
Dome Light Control For increased safety and convenience this optional feature will automatically turn on the dome light when you Disarm the system. With this feature installed, the dome light will turn on for 30 seconds when the system is disarmed (or unlocked in Valet Mode) using the Remote Transmitter. -
Page 15: Remote Car Starter
Remote Car Starter When an optional Remote Car Starter is installed into your car, the Remote Transmitter can be used to remotely start and run your vehicle to warm-up the engine, as well as activate the heating / air conditioning system. Additional Remote Transmitters Additional Remote Transmitters for your MS2004 are available from your Authorized Ungo dealer. -
Page 16: Notes
Notes Page 12 - MS2004 Owner’s Manual... - Page 17 Notes MS2004 Owner’s Manual - Page 13...
-
Page 18: Technical Data
Technical Data Specifications Main Unit Voltage: 12v, negative ground Current Consumption: <15mA Temperature Range: -40 o F to +257 o F Auxiliary Output Capability: 500mA Internal Relays: (1) 30A, (3) 15A Transmitter Current Consumption: <.00mA, standby Battery Type: miniature 12v, type 23A Warranty Information Model No.: MS2004 Serial No.:... -
Page 19: Warranty
Warranty Information 1. Ungo Security Corporation of Gardena, California ("Ungo Security") warrants this Ungo system to be free from defects in materials and workmanship and to comply with Ungo Security’s applicable printed specifications. 2. Ungo Security systems carry a limited lifetime warranty on the Main unit (system brain) and transmitters. - Page 20 Ungo Security Corporation A Clarion Company 661 West Redondo Beach Blvd. Gardena, CA 90247 800-Go-Clarion www.clarion-usa.com © Ungo Security Corporation, Gardena, CA 97-MS2004-10 Rev. 1 (11/00)
